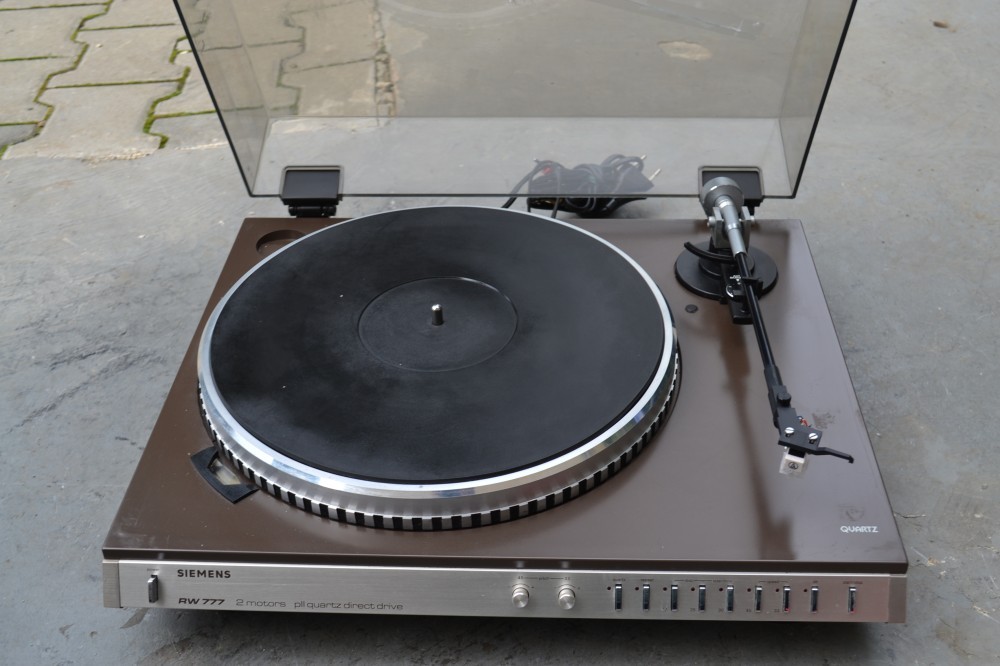

Pick up Siemens RW 777

Pick up Siemens RW 777: 2 motoare, direct drive, pitch control pe fiecare viteza, quartz lock, repeat, disk size 17/25/30, speed 33/45, cueing, full automatic, doza si ac audiotehnica, capac fisurat, antiskating,  poze reale.

General

• Manufacturer: Siemens OEM Sanyo
• Model: RW 777, component of the complete system Siemens System 777
• Type: Record player
• Years of manufacture: 1979 - 1983
• Made in: Japan
• Colour: Black / Silver
• Remote control:
• Power Consumption:
• Dimensions (WxHxD): 440 x 174 x 380 mm.
• Weight: 9 kg
• Original price approx.: 995 DM

Connections

• Outputs:
  • line-out standard pickup system Audio Technica AT-71: 3.4 mV

Specifications

• Drive: Direct drive
• Motor: DC servo motor
• Speed: 33 1/3, 45 UPM
• Speed fine adjustment: ± 5
• Synchronisation fluctuation: < 0,08 %
• Rumpelgeräuschabstand: >65 dB
• Turntable:
  • Diameter: 300 mm

Weight: 1,0 kg

• Operating mode: Fully automatic
• Tonearm: Straight, statically balanced
  • Effective length: 215 mm
  • Cartridge weight: 1.5 - 2.5 g

Tracking error: ± 0° 15' * Cartridge: Stereo magnetic system

• Pickup: Stereo magnetic system
  • Frequency response: 10 - 30'000 Hz
  • Channel separation: > 22 dB
  • contact pressure: < 0,5 g
