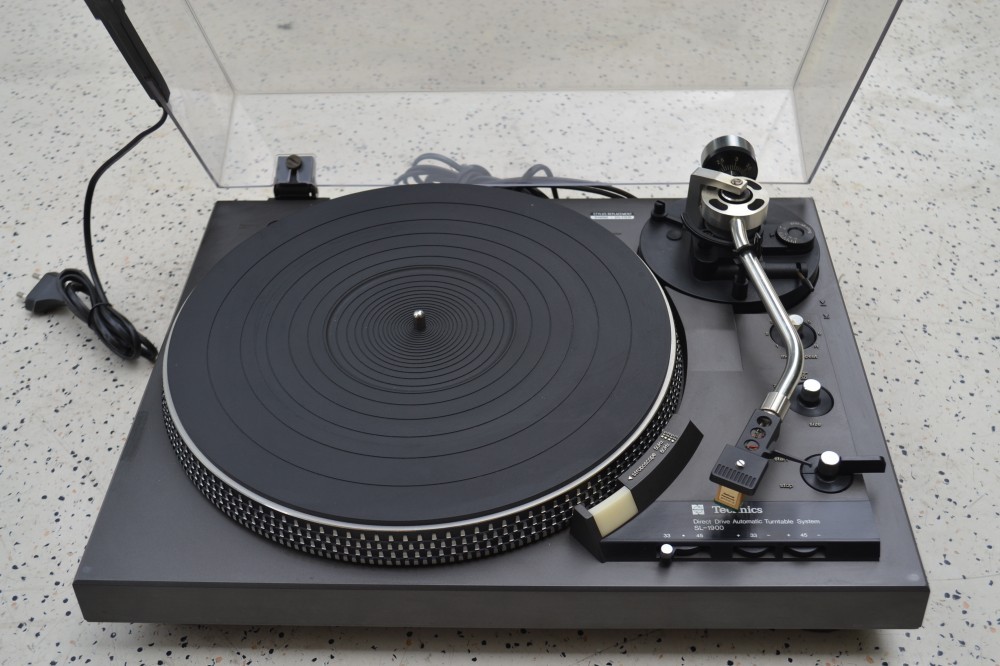

Pick up Technics SL 1900

Pick up Technics SL 1900: Direct Drive, AUTOMATIC, doza si ac originale National Panasonic 270 c II,  brat in S, capac de protectie, speed 33/45, size 17/25/30, cueing, pitch contyrol pe fiecare viteza, stroboscope, memo repeat, antiskating, lenco Lamp, poze reale.

General

• Manufacturer: Technics
• Model: SL-1900
• Type: Record player
• Year of manufacture: 1976 - 1978
• Made in: Japan
• Color: Brown
• Power consumption: 4,5 Watt
• Dimensions: 137 x 430 x 334mm
• Weight: 7.2 kg
• Original price approx.: 550 DM

Connections

• Outputs: Cinch red/white + GND
  • sound cell EPC-270: 3,2 mV, 47 kOhm
  • pickup: Technics EPC-270 C-II (MM standard system as original equipment)
• Inputs: -

Technical Data

• Drive: Direct drive
• Motor: counter electromotive power frequency generator servo DC motor
• Speed: 33 1/3 and 45 rpm
• Synchronous fluctuation: 0.03% WRMS (JIS C5521), ±0.042% evaluated zero-to-peak (DIN 45507)
• Rumble noise ratio:
  • DIN 45539A: 50 dB
  • DIN 45539B: 73 dB
• Turntable: Injection moulded aluminium, 310 mm
• Operating mode: Automatic or manual
• Pitch: ±5%
• Tonearm: Tubular arm, statically balanced
  • needle support: 0 - 3 g
  • effective axis length: 230 mm
  • overhang: 15 mm
  • crank angle: 21.5
  • Friction: 7mg (horizontal and vertical)
  • track misalignment angle: within + 3 (145mm from center), + 1 (55mm from center)
  • Pickup weight range: 5.5 - 9.5 g
  • Weight of tonearm head: 9.5 g
• Cartridge: Technics EPC-270 C-II (MM)
