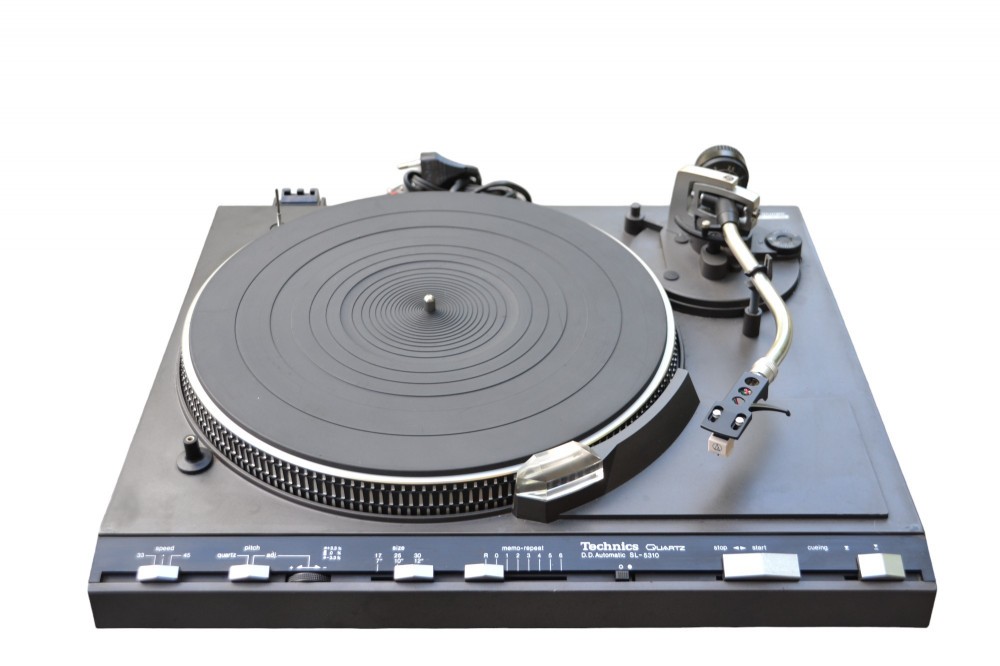

Pick up Technics SL 5310

Pick up Technics SL 5310: direct drive, brat in S, made in Japan, full automatic, speed 33/45, quartz, pitch control,  size 17/25/30, repeat, cueing, antiskating, doza si ac audiotehnica, poze reale.

General

• Manufacturer: Technics
• Model: SL-5310
• Type: Record player
• Years of manufacture: 1978 - 1979
• Made in: Japan
• Color: Black
• Power consumption: 12 W
• Dimensions: 430 x 130 x 376 mm (WxHxD)
• Weight: 7.1 kg
• Original price approx.: 598 DM

Connections

• Outputs: Cinch red/white + GND
  • sound cell EPC-270: 3.2 mV, 47 kOhm
  • pickup: Technics EPC-206 C (MM standard system as original equipment)
• Inputs: -

Technical Data

• Drive: Servo-controlled direct drive
• Motor: Brushless DC motor
• Speed: 33 ⅓, 45 rpm.
• Synchronous speed fluctuation: 0.025% WMRS.
• Rumble noise ratio:
  • DIN 45539A: -56 dB
  • DIN 45539B: -78 dB
• Turntable: Injection moulded aluminium
  • Diameter: 304 mm
  • Weight: kg
• Operating mode: Fully automatic
• Pitch: ± 6
• Tonearm: S-shaped universal tubular tonearm, statically balanced
  • Directly readable tracking force adjustment
  • adjustable anti-skating device
  • viscosity damped tonearm control
  • effective length: 230 mm
  • overhang: 15 mm
  • Track misalignment angle: within +2°32
  • Offset angle: 22
  • Contact pressure adjustment range: 0 - 2.5 g
  • Weight of the pickup 6 - 9.5 g
  • Weight of tonearm head 7.5 g
