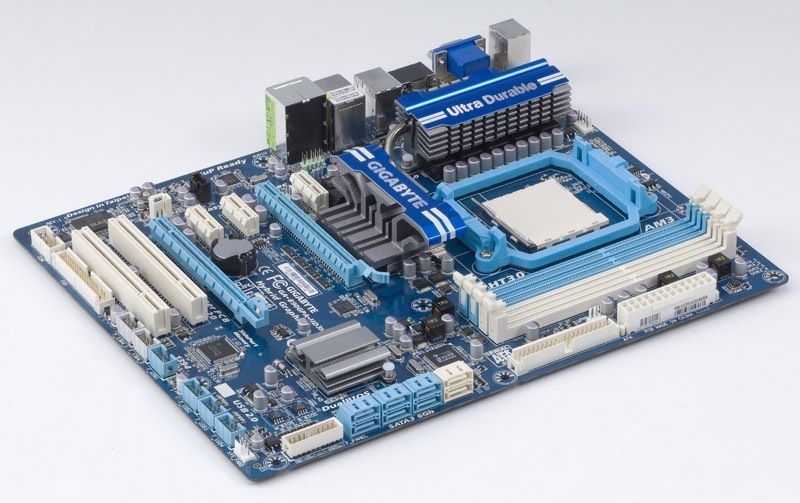

Placa baza Gigabyte GA-890GPA-UD3H, AM3, DDR3

CPU AM3 Socket: Support for AMD AM3 Phenom™ II processor / AMD Athlon™ II processor Hyper Transport Bus 5200 MT/s Chipset North Bridge: AMD 890GX South Bridge: AMD SB850 Memory 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1) Dual channel memory architecture Support for DDR3 2000(OC)/1333/1066 MHz memory modules Integrated Memory 128MB DDR3 SidePort memory Onboard Graphics Integrated in the North Bridge: 1 x D-Sub port 1 x DVI-D port (Note 2)(Note 3) 1 x HDMI port (Note 3) Audio Realtek ALC892 codec High Definition Audio 2/4/5.1/7.1-channel Support for Dolby Home Theater Support for S/PDIF In/Out Support for CD In LAN 1 x Realtek 8111D chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16) (Note 4) 1 x PCI Express x16 slot, running at x8 (PCIEX8) (Note 4) 3 x PCI Express x1 slot (All PCI Express slots conform to PCI Express 2.0 standard.) 2 x PCI slots Multi-Graphics Technology Support for ATI CrossFireX and Hybrid CrossFireX technologies Storage Interface South Bridge: 6 x SATA 6Gb/s connectors 6 supporting up to 6 SATA 6Gb/s devices Support for SATA RAID 0, RAID 1, RAID 5, RAID 10, and JBOD * SATA3 RAID 0 4x and SATA3 2x performance are maximum theoretical values. Actual performance may vary by system configuration.GIGABYTE SATA2 chip: 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices 2 x SATA 3Gb/s connectors supporting up to 2 SATA 3Gb/s devices Support for SATA RAID 0, RAID 1, and JBOD iTE IT8720 chip: 1 x floppy disk drive connector supporting up to 1 floppy disk drive USB South Bridge: Up to 12USB 2.0/1.1 ports (4 on the back panel, 8 via the USB brackets connected to the internal USB headers) NEC D720200F1 chip: Up to 2 USB 3.0 ports on the back panel * USB 3.0 10x performance is a maximum theoretical value. Actual performance may vary by system configuration. IEEE 1394 T.I. TSB43AB23 chip: Up to 3 IEEE 1394a ports (1 on the back panel, 2 via the IEEE 1394a bracket connected to the internal IEEE 1394a header) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x floppy disk drive connector 1 x IDE connector 6 x SATA 6Gb/s connectors 2 x SATA 3Gb/s connectors 1 x CPU fan header 2 x system fan header 1 x power fan header 1 x front panel header 1 x front panel audio header 1 x CD In connector 1 x S/PDIF In header 1 x S/PDIF Out header 2 x IEEE 1394a header 4 x USB 2.0/1.1 headers 1 x serial port header 1 x clearing CMOS jumper Back Panel Connectors 1 x PS/2 keyboard port or PS/2 mouse port 1 x D-Sub port 1 x DVI-D port (Note 2) 1 x HDMI port (Note 2) 1 x optical S/PDIF Out connector 4 x USB 2.0/1.1 ports 2 x USB 3.0/2.0 ports 1 x IEEE 1394a port 1 x RJ-45 port 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone) I/O Controller ITE IT8720 chip H/W Monitoring System voltage detection CPU/System temperature detection CPU/System/Power fan speed detection CPU overheating warning CPU/System/Power fan fail warning CPU/System fan speed control (Note 5) BIOS 2 x 8 Mbit flash Use of licensed AWARD BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b Unique Features Support for @BIOS Support for Q-Flash Support for Xpress BIOS Rescue Support for Download Center Support for Xpress Install Support for Xpress Recovery2 Support for EasyTune (Note 6) Support for Easy Energy Saver Support for Smart Recovery Support for Auto Green Support for On/Off Charge Support for Q-Share Bundled Software Norton Internet Security (OEM version) Operating System Support for Microsoft Windows 7/ Vista/ XP Form Factor ATX Form Factor; 30.5cm x 24.4cm
