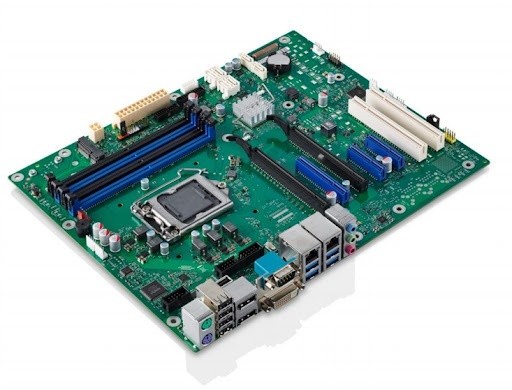

Placa de baza Fujitsu Siemens D3446-S1 GS2 LGA 1151, ATX, DDR4, Bulk,

Placa de bază este refurbished, testat, în stare perfectă de funcționare.

Pozele sunt de referință și au rol orientativ

Placa de bază este bulk, se livrează în ambalaj generic de carton.

D3446-S based on Intel® C236

Board size ATX: 9.6" x 12" (243.8 x 304.8 mm)

Chipset Intel® C236 Express Chipset

Memory 4 DIMM sockets DDR4, max. 64GB, dual channel, 2133MHz (CL15) / 2400MHz (CL17), UDIMM, 1.2V/2.5V, 288-pin, ECC (appropriate processor required) / non-ECC. Effective memory speed depends on installed processor

Processor Intel® Xeon® E3-1200 V5
processor
series
Intel® Intel® Pentium® / Intel® Celeron® (7th generation) processor series (D3446-S2 only) Socket LGA1151, max. 80W TDP

Power Specification ATX- 24 Pin or ATX- 20 Pin + 4 Pin (12V) Power Connector required
Support for Soft-Off Power Supplies
12V and 3.3V Supply Voltage on PCIe Slots
3.3V Auxiliary Supply Voltage on PCIe Slots (Wake-Up Function)
On board CPU Voltage Regulator, 5V / 2A Auxiliary Power
required for USB Wake-Up from Save-to-RAM, Save-to-Disk

BIOS AMI Aptio 5.x (UEFI) BIOS
modified and adapted by Fujitsu Technology Solutions; Recovery BIOS, SM-BIOS (DMI), BIOS and
CPU Microcode Update, Quick Boot, Logo Boot, Quiet Boot, Plug & Play, Automatic DRAM and
PCIe Configuration, BIOS Support for SMART, Advanced Power Management, ACPI S3/S4,
Wake on time from S5.
Boot support for M.2 Carrier Board D3352-A1 (PCIe-based SSD modules, AHCI/NVME).BIOS integrated HW Diagnostic Tool

Security Features Recovery BIOS, System and BIOS Password, Boot Sequence Control, Serial/Parallel/USB Port
Access, Boot Sector Virus Warning, Write Protection for Flash BIOS, EraseDisk0 (BIOS Feature);
TPM V2.0 (Infineon SLB 9665; TCG compliant).

Features and benefits
Data Sheet FUJITSU Mainboard D3446-S ATX
Page 3 of 7 ts.fujitsu.com/mainboards.

Special Features Silent Fan Independent temperature related processor fan
and system fan supervision and control
System Guard View and adjust Silent Fan features
Silent Drives Noise reduction for optical and hard disk drives
Recovery BIOS Restores a corrupted BIOS
Desk Update Simple driver update with Driver&Utilities DVD
Multi Boot Comfortable boot from any boot device
HDD Password Access protection for disk drives
CSA / UL / FCC certified cCSAus 60950-1/ FCC-B

Designed for Industrial Applications

Enhanced operating temperature range (0°C-60°C)1

Graphics Intel® HD Graphics (depends on installed processor), DX12

Audio Realtek ALC671, 5.1-channel, High Definition Audio Codec

LAN Intel i219LM & i210AT with 10/100/1000 MBit/s, iAMT 11 Support,
Wake-on-LAN (WoL) by interesting Packets, Link Status Change and
Magic Packet™, PXE Support, BIOS MAC Address Display, Teaming Support

Drives 6 x SATA SATA-III; NCQ, AHCI, RAID 0/1/5/10

• Format placa de baza: ATX
• Socket procesor: LGA 1151
• Stare: Refurbished
• Memorie RAM: DDR4
• Chipset: C236
• Garantie: 12 luni
