Placa de baza Mercury KOB KT266A FDSX + Procesor AMD DURON 1100 MHz

Descriere

Vânzatorul este direct răspunzator pentru produsul afișat în această pagină.

Disponibilitate: Indisponibil - Vezi produse similare

Specificatii

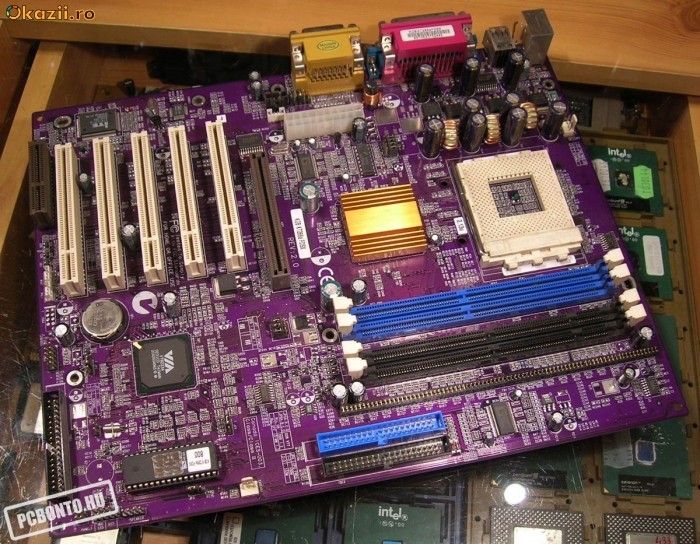

Description - AMD K7 Mainboard with VIA KT266A Chipset Design
Processors - 462 pin Socket A supports AMD Athlon (K7) processors
* Full series of Athlon/Duron CPU including the future Athlon processors.
Chipset - VIA VT8366(NB) & VT8233 (SB)
* VT8366 V-Link Host system controller and VT8233 V-Link Client to PCI/LPC bridge
* Peak Bandwidth 266MB/S 8-bit V-link Host Controller
* Support AGP 2.0 specification (4X)
- LPC I/O ?IT8712F
- System Hardware Monitor: Integrated in IT8712F
- AC97 Audio Codec
* Compliant with AC97 2.1 specification
System BIOS - Award 2Mb Flash EEPROM
- Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
- Full support for ACPI revision 1.0 specification
Memory - 2 DDR DIMM Sockets and 2 DIMM sockets support (can not be
- used simultaneously)
* Two 184-pin 2.5V DDR SDRAM (DDR266/DDR200) or
* Two 168-pin 3.3V SDRAM (PC133/PC100)
- Maximum: 2GB
I/O Interface - Supports Plug and Play function
- PS/2 keyboard and PS/2 mouse connectors
- Six USB Ports (Four USB Connectors as header onboard)
- One - EPP/ECP mode parallel port
- Two - 16550 high-speed serial I/O ports
- Audio Ports (Line-in, Line-out, Mic-in, CD-in and game port)
- Dual PCI IDE interfaces - support four IDE devices (PIO mode 4,
- DMA Mode 2, Ultra DMA 66/100)
- Supports 360K~2.88M Byte, 3 Mode FDDs or LS120
- ATX Power Supply Connector
- Ports, headers and others
* IrDA header
* Extra USB header (USB2/3)
* Front Panel MIC/Line-Out Header
* Green, HDD, power indicator LED headers
* CPU and Case Fan headers
* LAN Card Wake Up/Modem Ring Wake-Up headers
RTC & Battery - VT8233 included 256 byte of CMOS
- With CMOS hardware clear jumper
Expansion Slots - 5 PCI slots, 1 AGP slot, 1 CNR slot
Form Factor & Layers - ATX (304mm x 240mm), 4 Layers
ype CPU / Microprocessor
Market segment Desktop
Family AMD Duron
CPU part number DHD1100AMT1B is an OEM/tray microprocessor
Stepping code AHHAA
Frequency  ?  1100 MHz
Bus speed  ?  200 MHz
Clock multiplier  ?  11
Package 453-pin staggered ceramic PGA
1.95" x 1.95" (4.95 cm x 4.95 cm)
AMD Package number 27067
Socket Socket A (Socket 462)
Introduction date 1-Oct-01
Price at introduction $103

Architecture / Microarchitecture
Microarchitecture K7
Processor core  ?  Morgan (Model 7)
CPUID 670
Manufacturing process 0.18 micron
25.2 million transistors
Die size 105.68mm2
99.61mm2 (without L2 cache)
Data width 32 bit
The number of cores 1
The number of threads 1
Floating Point Unit Integrated
Level 1 cache size  ?  64 KB code
64 KB data
Level 2 cache size  ?  on-die 64 KB exclusive cache
Multiprocessing Uniprocessor
Features
  • MMX technology
  • 3DNow! Professional
  • SSE
Low power features
  • Halt state
  • Stop Grant states
  • Sleep state  ?
  • Probe state

Electrical/Thermal parameters
V core  ?  1.75V
Minimum/Maximum operating temperature  ?  0°C - 90°C
Minimum/Typical/Maximum power dissipation

2 Watt (Sleep state) / 46.2 Watt / 50.3 Wat

Placa de baza + procesor + cooler+placa de retea

CONDITII PENTRU INCHEIEREA TRANZACTIEI :

1.LICITATI DOAR DUPA CE ATI INTREBAT PE FORUM DACA PRODUSUL MAI ESTE PE STOC .

2.CONFIRMAREA COMENZII SE FACE TELEFONIC IN MAXIM 48H DUPA CE ATI LICITAT .

3.PRODUSUL SE POATE TRIMITE PRIN CURIER

 (FAN CURIER )


4.PLATA  SE FACE IN SISTEM RAMBURS CAND PRIMITI COLETUL SE PLATESTE

5.TRANSPORTUL ESTE SUPORTAT DE CATRE CUMPARATOR



*PRETUL ESTE FIX NU INSISTATI CU ALTE OFERTE SUB ACEST PRET -MULTUMESC
