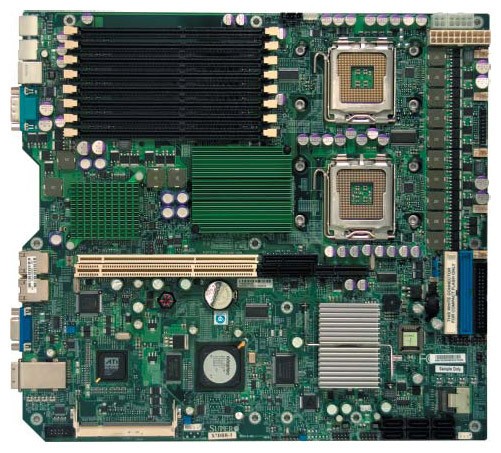

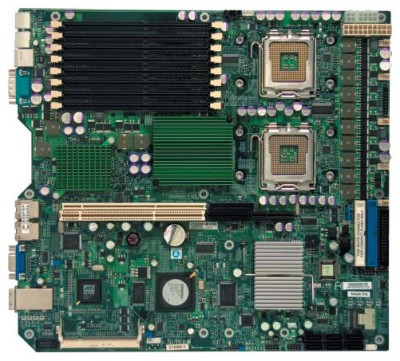

Placa de baza server Supermicro X7DBR-E LGA771

Cost unic de transport la toate comenzile acestui vanzator
Disponibilitate:
In stoc 1 disponibil
Livrare:
  Curier rapid - 25,00 Lei Detalii
Estimat livrare:
Miercuri, 18 Iun.
Cantitate:
Pret:
99,00 Lei
Primesti 99 puncte in aplicatie
Produs:
Second Hand, Ofer garanție, Cu factură
Politica de retur:
Acest produs poate fi returnat in 3 zile Detalii
Plata:
  • Online
  • Pretul este pentru 1 bucata.

Descriere

Raporteaza produs

Vânzatorul este direct răspunzator pentru produsul afișat în această pagină.

Specificatii

Placa de baza server Supermicro X7DBR-E LGA771

Physical Stats
Form Factor
  • Extended ATX
Dimensions
  • 12" x 13.05" (30.5cm x 33.2cm)

Processor/Cache
CPU
  • Dual 771-pin LGA Sockets
  • Supports up to two Intel® 64-bit Xeon® processor(s) of the same
    type below:
    • Quad-Core Intel®
      Xeon®Processor
      5400/5300 sequence
      (Harpertown
      /Clovertown processor)
      up to 3.16 GHz
    • Dual-Core Intel®
      Xeon®Processor 5200/5100/5000
      sequence (Wolfdale
      /Woodcrest/Dempsey processor)       up to 3.40 GHz
System Bus
  • 1333 / 1066 / 667 MHz system bus
Operating System Software
  • Supports 64-bit Operating Systems
  • Supports 32-bit Operating Systems

System Memory
Memory Capacity
  • Eight 240-pin DIMM sockets
  • Supports up to 32 GB 667 / 533MHz DDR2 ECC FB-DIMM memory
  • Dual rank memory bus
  • Memory must be populated in pairs
  • Memory Mirroring supported
Memory Type
  • 667 / 533MHz FB-DIMM (Fully Buffered DIMM) ECC DDR2 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
  • 512 MB, 1GB, 2GB, 4GB
Memory Voltage
  • 1.8V only
  • 1.5V(AMB)
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
  • Supports Intel® x4 and x8 Single Device Data Correction (SDDC)

On-Board Devices
Chipset
  • Intel® 5000P (Blackford) chipset
  • MCH + PXH + ESB2
SATA
  • Intel ESB2 SATA 3.0Gbps Controller
  • RAID 0, 1, 5, 10 support (Windows Only)
  • RAID 0, 1, 10 support (Linux)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • 200-pin IPMI SO-DIMM socket (SIMSO)
  • (Optional: AOC-SIMSO(+))
Network Controllers
  • Intel® (ESB2/Gilgal) 82563EB Dual-Port Gigabit Ethernet Controller
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • Intel® I/OAT support for fast, scaleable, and reliable networking
Graphics
  • ATI ES1000 controller with 16 MB of video memory
Super I/O
  • Winbond 83627HG chip

Input / Output
Serial ATA
  • Six Serial ATA ports
  • 3 Gbps transfer rate
  • Six SATA hard drives supported
IDE
  • Single EIDE channel supports up to two UDMA IDE devices (IDE-M, IDE-S) including CF(Compact Flash) Card
  • Compact Flash (40-pin connector, IDE 1, single channel) slot
  • Supports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy
  • 1 Floppy controller; 1.44 MB, 2.88 MB
LAN
  • 2x RJ45 LAN ports
USB
  • 2x USB rear ports
  • 3x USB internal headers
  • Total 5 USB 2.0 Compliant / 1.1 Compliant
VGA
  • 1x VGA Port
Keyboard / Mouse
  • PS/2 keyboard and mouse ports
Serial Port / Header
  • 1 Fast UART 16550 serial port
  • 1 Fast UART 16550 serial header

Chassis ( Optimized for X7DBR-E )
1U Chassis
  • CSE-815TQ-700V
  • CSE-815TQ-R650
  • CSE-815TQ-560
Important Chassis Notes
  • To ensure system stability, a 500W (minimum) ATX power supply
    [4-pin (+12V), 8-pin (+12V) and 24-pin are required]

Expansion Slots
Left Universal Slot
  • 1 64-bit 133MHz PCI-X OR
  • 1 (x8) PCI-e Slot
Right Universal Slot
  • 1 64-bit 133MHz PCI-X OR
  • 1 (x8) PCI-e Slot

System BIOS
BIOS Type
  • 8Mb Flash EEPROM with Phoenix® BIOS
BIOS Features
  • Plug and Play (PnP)
  • SMBIOS 2.3
  • DMI 2.1
  • PCI 2.2
  • ACPI 1.0
  • USB Keyboard support
  • Hardware BIOS Virus protection

Management
Software
  • Optional IPMI (Intelligent Platform Management Interface) 2.0
  • SuperDoctor® III
  • Watch Dog
  • NMI
Power Configurations
  • ACPI Power Management
  • Main Switch Override Mechanism
  • Wake-On-Ring (WOR) header
  • Wake-On-LAN (WOL) header
  • Power-on mode for AC power recovery
  • Internal / External modem remote ring-on

PC Health Monitoring
Voltage
  • Monitors for CPU Cores, +3.3V, +5V, ±12V, +1.2V
  • 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN
  • Total of eight 4-pin fan headers supporting up to 8 fans
  • 8x fans with tachometer status monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Low noise fan speed control
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Control for 8x fan connectors
  • PSU I2C temperature sensing logic
  • Thermal Monitor 2 (TM2) support
LED
  • CPU / System Overheat LED
Other Features
