Placa de baza SUPERMICRO X10SRA ATX Server Workstation LGA 2011-3 Intel C612

Livrare gratuita

Descriere

Vânzatorul este direct răspunzator pentru produsul afișat în această pagină.

Disponibilitate: Indisponibil - Vezi produse similare

SKU: B-X10SRA

Specificatii

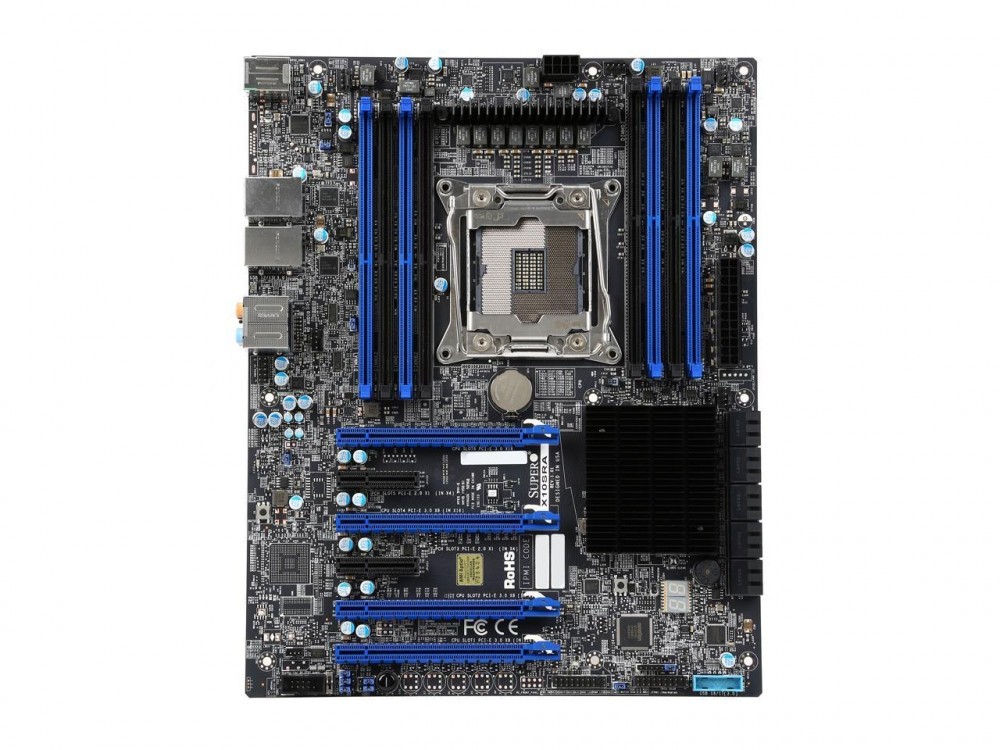

Placa de baza SUPERMICRO X10SRA ATX Server Workstation LGA 2011-3 Intel C612

Placa provine din un sistem workstation dezmembrat. Este insotit de shield (tablita I/o)
MBD-X10SRA
  • X10SRA
Physical Stats
Form Factor
  • ATX
Dimensions
  • 12" x 9.6" (30.48cm x 24.38cm)
Processor/Cache
CPU
  • Intel® Core i7 series, Intel® Xeon® Processor E5-1600 v3, Intel® Xeon® Processor E5-1600 v4, Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4
  • Single Socket LGA-2011-3 (Socket R3) supported, CPU TDP supports Up to 160W TDP
Cores / Cache
  • Up to 22 cores † / Up to 55MB† cache
Note
  • † BIOS version 2.0 or above is required
Note
  • ** Motherboard supports this maximum TDP. Please verify your system can thermally support.
System Memory
Memory Capacity
  • Up to 256GB Registered ECC RDIMM; Up to 1TB 3DS ECC LRDIMM, DDR4-2400MHz
  • Or 128GB Unbuffered ECC/non-ECC UDIMM, in 8 DIMM slots
  • Up to 512GB ECC LRDIMM ;
  • UDIMM will be only available for Core i7 processors. ;
  • 2400MHz is supported by E5 V4 processors with 2DPC of LRDIMM or 1DPC of RDIMM.;
  • 8x 288-pin DDR4 DIMM slots
Memory Type
  • 2400/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs
DIMM Sizes
  • RDIMM: 4GB, 8GB, 16GB, 32GB
  • LRDIMM: 32GB, 64GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C612
SATA
  • Intel® C612 controller for SATA3 (6 Gbps) ports; RAID 0,1,5,10
Network Controllers
  • Dual LAN with Intel® i210 Gigabit Ethernet Controller
Audio
  • ALC 1150 HD Audio
Input / Output
SATA
  • 10 SATA3 (6Gbps) port
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 8 USB 3.2 Gen1 ports (6 rear + 2 via headers); 4 USB3.0 ports could be upgraded to 4 USB3.1(10 Gb/s) ports (2 rear, 2 by header)(BOM option)
Serial Port / Header
  • 1 COM Port (1 header)
TPM
  • TPM Header
Expansion Slots
PCI-E
  • 4 PCI-E 3.0 x16
  • 2 PCI-E 2.0 x1 (in x4 slot),
  • 4 PCI-E Gen3x16 slots are running at 16/16/NA/8 or 16/8/8/8
  • PCI-E Slot#1 (x4) and Slot#4 (x16) are disabled when an Intel Core i7-5820K is installed)
  • PCI-E Slot#1 (x4) and Slot#4 (x16) are disabled when an Intel Core i7-5820K is installed)
System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • Hardware BIOS Virus protection
  • SMBIOS 2.7.1
  • UEFI 2.3.1
  • RTC (Real Time Clock) Wakeup
Management
Software
  • SuperDoctor® 5, SuperDoctor® III, Watchdog
Power Configurations
  • ACPI Power Management
  • Keyboard Wakeup from Soft-Off
  • CPU Fan auto-off in sleep mode
  • Power-on mode for AC power recovery
PC Health Monitoring
Voltage
  • +12V, +3.3V, +5V, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, Chassis intrusion header, Monitors CPU voltages, VBAT
Temperature
  • Monitoring for CPU and chassis environment, CPU thermal trip support, I2C temperature sensing logic, Thermal Monitor 2 (TM2) support, PECI
LED
  • CPU / System Overheat LED, Suspend static indicator LED
Other Features
  • Chassis intrusion detection, Chassis intrusion header, Chipkill support, RoHS
Operating Environment
Operating Temperature Range
  • 0°C ~ 50°C (32°F ~ 122°F)

  • Socket procesor: LGA2011V3
  • Garantie: 12 luni
