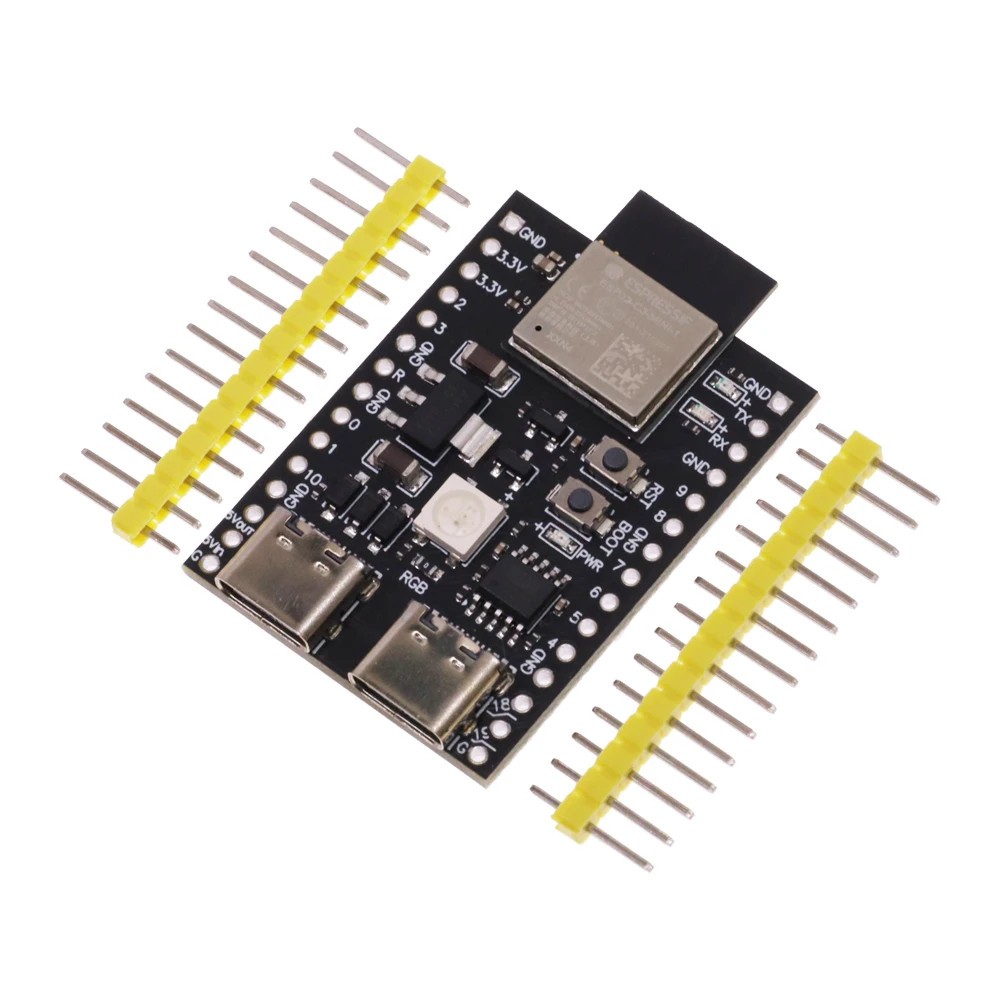

Placa de dezvoltare ESP32-C3 cu dual Type-C, WiFi, Bluetooth BLE5.0, DevKitM-1

Name: Placa de dezvoltare ESP32-C3 cu dual Type-C, WiFi, Bluetooth BLE5.0, DevKitM-1
Brand: Nespecificat
SKU: 242392739
Price: 46 RON
Availability: inStock

Livrare gratuita la comenzile de 180 lei

Disponibilitate:

In stoc 1 disponibil

Livrare:

Curier cu Garantia de Livrare - 18,00 Lei Detalii
Ridicare de la locker - 13,09 Lei

Estimat livrare:

Marți, 6 Mai.

Cantitate:

Pret:

46,⁰⁰ Lei

Primesti 46 puncte in aplicatie

Produs:

Nou, Fără garanție

Politica de retur:

Acest produs poate fi returnat in 3 zile Detalii

Plata:

Ramburs cu Garantia de Livrare

Curierul special îți livrează produsul pe care tu îl achiți la primire. Dacă produsul nu este ca în descriere, îți recuperezi banii, inclusiv taxele de transport.
Online

Vandut de:

elisatudor

100% pozitive (din 225

)

Intreaba vanzatorul

Descriere

Raporteaza produs

Vânzatorul este direct răspunzator pentru produsul afișat în această pagină.

SKU: ESP937

Specificatii

Produsul este nou!

Produsul este la fel cu cel prezentat in fotografii!

Descriere în limba engleză:

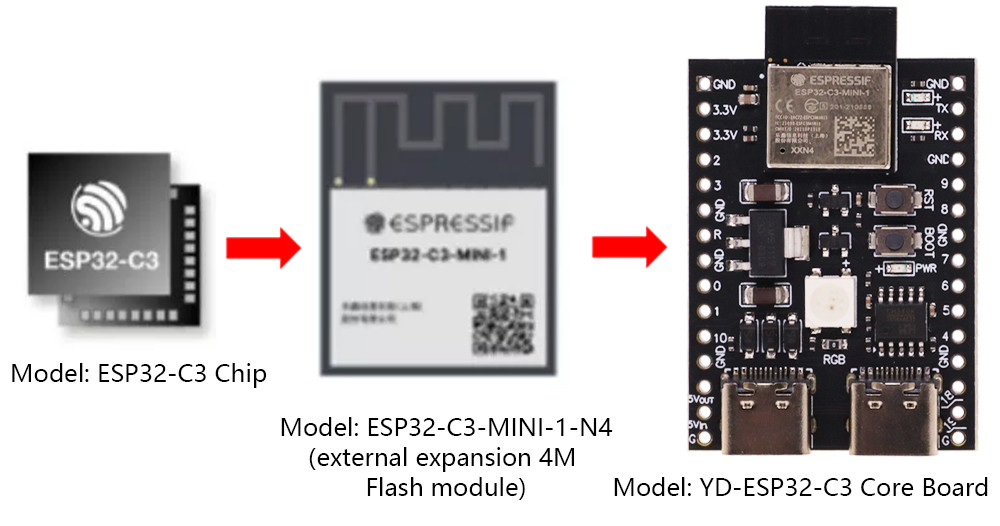

ESP32-C3 hardware relationship

The core board YD-ESP32-C3 uses the ESP32-C3-MINI-1-N4 module (external expansion of 4M Flash), which ensures a stable and excellent user experience. ESP32-C3 Secure, Low-Power, Low-Cost RISC-V MCUs2.4 GHz Wi-Fi and Bluetooth 5 (LE) support Meet the functional requirements of various common IoT products

Module Model	Built-in chip model	Built-in SRAM	Built-in ROM	External Flash
ESP32-C3-MINI-1	ESP32-C3FN4	400KB	384KB	4MB

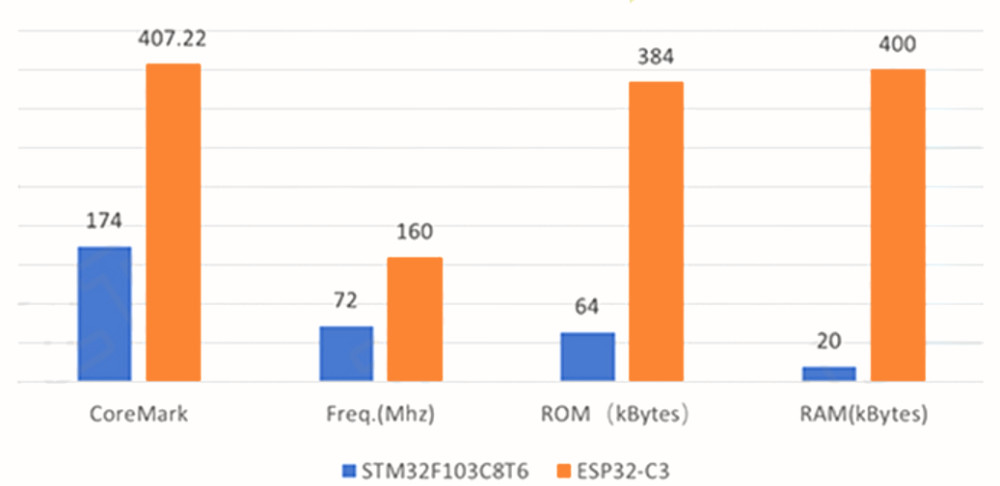

The link core board uses ESP32-C3FN4 chip and built-in ESP32-C3-MINI module with 4 MB flash.ESP32-C3-MINI-1is a general-purpose Wi-Fi and Bluetooth low energy (Bluetooth LE) module with small size and rich peripheral interfaces, which can be used in smart home, industrial automation, medical electronics and other fields. ABOUT THE ADVANTAGES OF USING ESP32-C3 CHIP ESP32-C3 is not very mysterious. It is good to use it as a microcontroller with wifi and bluetooth functions. Most applications do not use wifi and bluetooth. ARM type MCU, The following is the main performance comparison between ESP32-C3 and STM32F103C8T6. STM32F103CC8T6 And EPS32-C3 Main Performance Comparison

ESP32C3MINI1-N4 Built-in ESP32-C3FN4 chip, RISC-V 32-bit single-core microprocessor, main frequency up to 160 MHz 384KB ROM 400 KB SRAM (16 KB of which is dedicated to cache) 8KB RTC SRAM Small form-factor module supporting 2.4 GHz WiFi (802.11 b/g/n) and Bluetooth ® 5 Built-in chip stacking 4 MB flash 15 GPIOs Onboard PCB Antenna ESP32-C3 HARDWARE RESOURCES

WIFI Support IEEE 802.11 blg/n protocol Support 20 MHz and 40 MH bandwidth in 2.4 GHz band. Supports 1T1R mode with data rates up to 150 Mbps Wireless Multimedia (WMM) Frame aggregation(TX/RXA-MPDU,TX/RXA-MSDU) Immediate Block ACK Fragmentation and defragmentation Transmit opportunity (TXOP) Beacon automatic monitoring (hardware TSF) 4 x virtual Wi-Fi ports Supports Infrastructure BSS Station mode, SoftAP mode, Station+SoftAP mode and Promiscuous mode at the same time (please note that when ESP32-C3 series chips scan in Station mode the SoftAP channel will change at the same time) Antenna diversity 802.11 mc FTM Support for external power amplifier BLUETOOTH Bluetooth Low Energy (Bluetooth LE): Bluetooth 5, Bluetoothmesh High Power Mode(18 dBm) Rates support 125 Kbps, 500Kbps,1Mbps,2 Mbps Advertising Extensions Multiple Advertisement Sets Channel Selection Algorithm #2 Wi-Fi and Bluetooth coexist and share the same antenna

CPU AND STORAGE 32-bit RISC-V single-core processor up to 160 MHz CoreMark ® Score: Single core 160 MHz: 407.22 CoreMark; 2.55 CoreMark/MHz 384KB ROM 400 KB SRAM (of which 16 KB is dedicated to cache) 8 KB RTC SRAM Embedded flash SPI, Dual SPI, Quad SPI QPI interface to connect multiple flashes Speed up flash access through cache Supports flash in-circuit programming (ICP) ADVANCED PERIPHERAL INTERFACES AND SENSORS 22 x GPIO ports Digital interface -3x SPI -2x UART -1xI2C -1xI2S -Infrared transceiver, 2 transmit channels and 2 receive channels -LED PWM controller, up to 6 channels -Full-speed USB serial/JTAG controller -General purpose DMA controller (GDMA for short), 3 receive channels and 3 transmit channels -1xTWAl ® controller, compatible with ISO11898-1(CAN specification 2.0) Analog interface -2 x 12-bit SAR A/D converters, up to 6 channels -1 x temperature sensor Timer -2 x 54-bit general purpose timer -3 x watchdog timers -1 x 52-bit system timer

LOW POWER MANAGEMENT
Power management unit, four power consumption modes
SECURITY MECHANISM
Secure Boot
Flash encryption
4096-bit OTP, up to 1792-bit available
Cryptographic hardware accelerators: AES-128/256 (FIPS PUB 197)
Access rights management
SHA accelerator (FIPS PUB 180-4)
RSA Accelerator
Random number generator (RNG)
HMAC
Digital signature

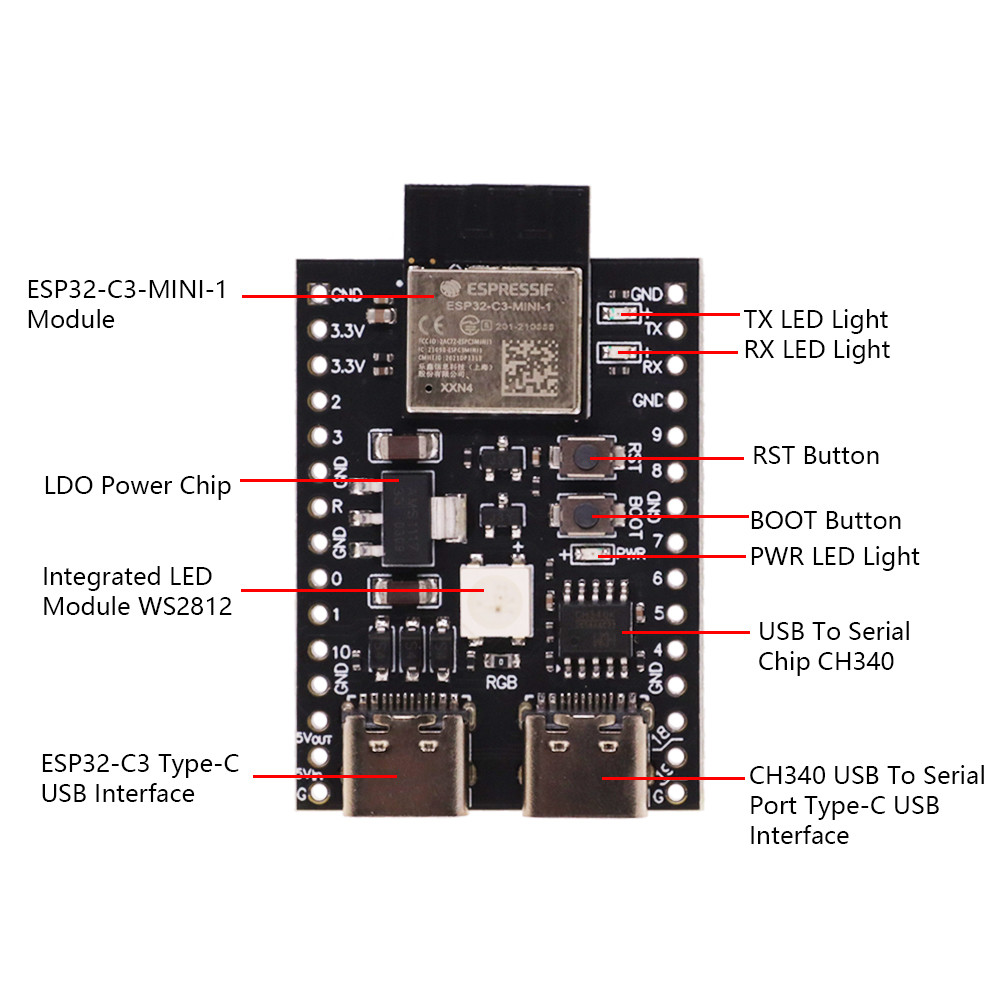

Core board hardware introduction

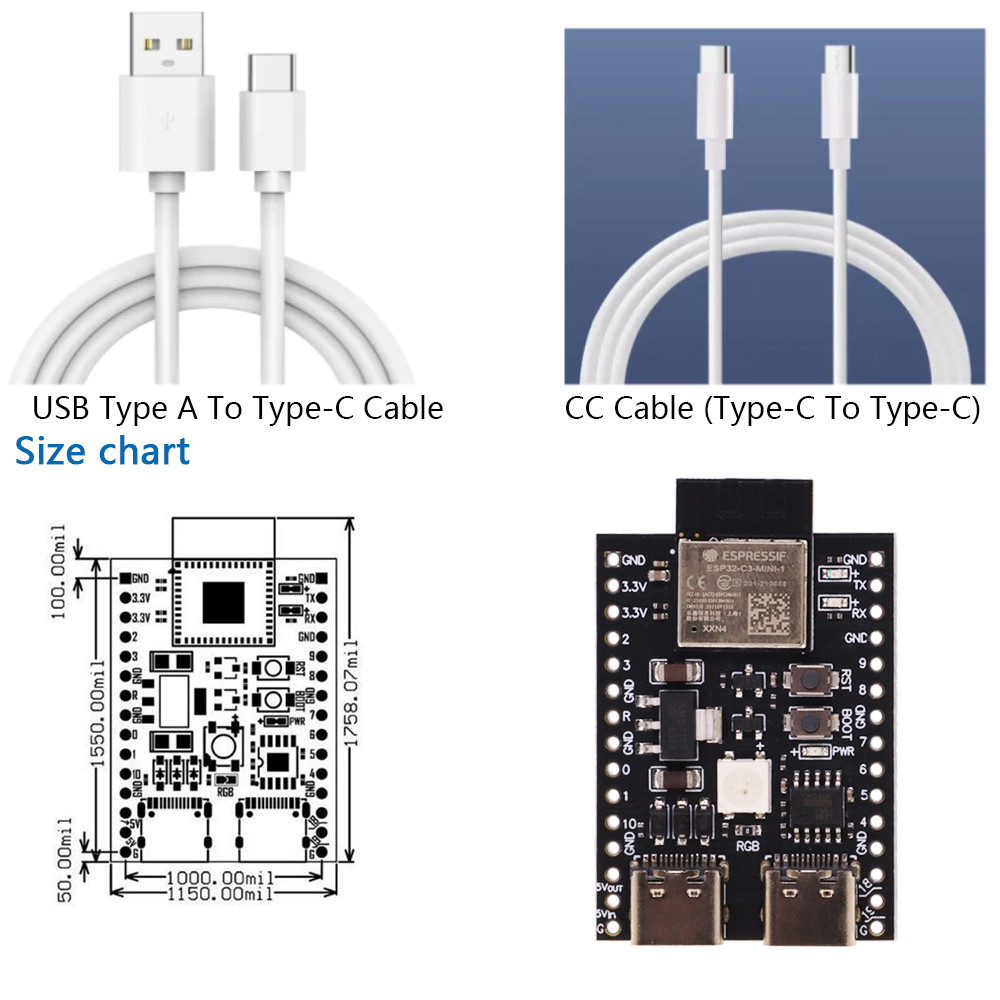

Instructions for using the USB cable

The on-board USB port of the YD-ESP32-C3 core board is a Type-C interface.

Can communicate with computer, power supply.

The cable can be used: USBA type to Type-C cable or CC cable.

Pay attention to distinguish the commonly used USB A port to Type-C cable that can only be charged. This cable cannot be used for communication between YD-RP2040 and the host.

About how to program ESP32-C3

Compared with traditional MCUs, such as STM32, the performance of ESP32-C3 series is much stronger. Whether it is operating frequency or FLASH size, it is one level higher. It also has wifi and bluetooth functions, which is very suitable for Internet of Things applications. wifi and bluetooth functions are also very nice to use as MCU. The key is the affordable price, especially ESP32-C3 is more friendly in price. The development of ESP32-C3 programs can be developed according to the official detailed IDF method. If you think the official IDF is too cumbersome, you can use python programming or Arduino programming, the premise is that you need to download the corresponding firmware, and then run the user application.

Summary

The more popular programming methods at this stage IDF C Language Programming

Python Programming

For Arduino Programming

ESP32-S3 programming with IDF

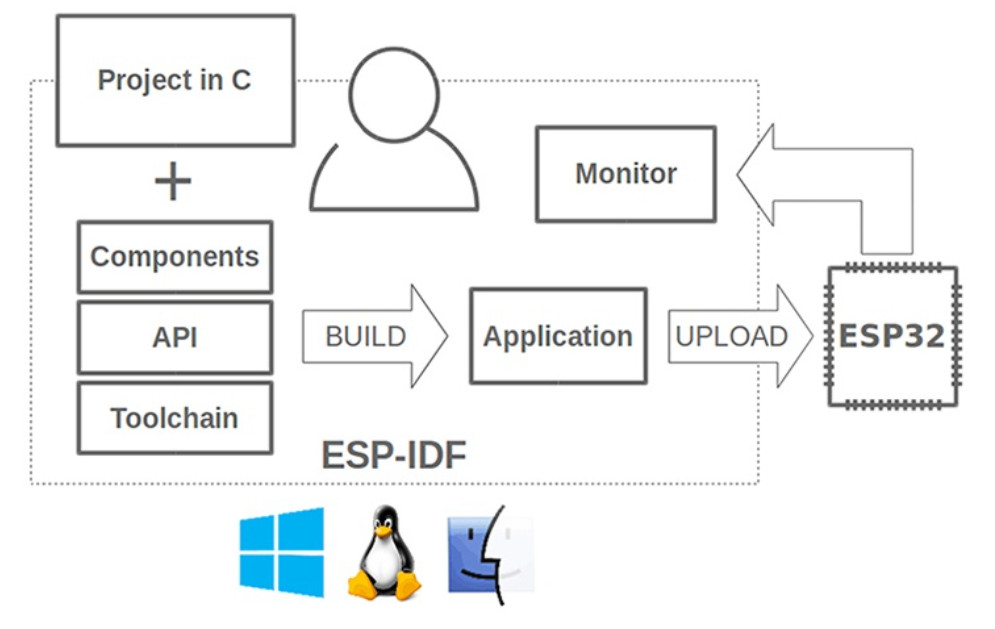

ESP-IDF is an loT development framework that provides toolchain, API, components and workflow support for developing ESP32-C3 applications on Windows, Linux and macOS system platforms.

ESP32-C3 uses python IDE software

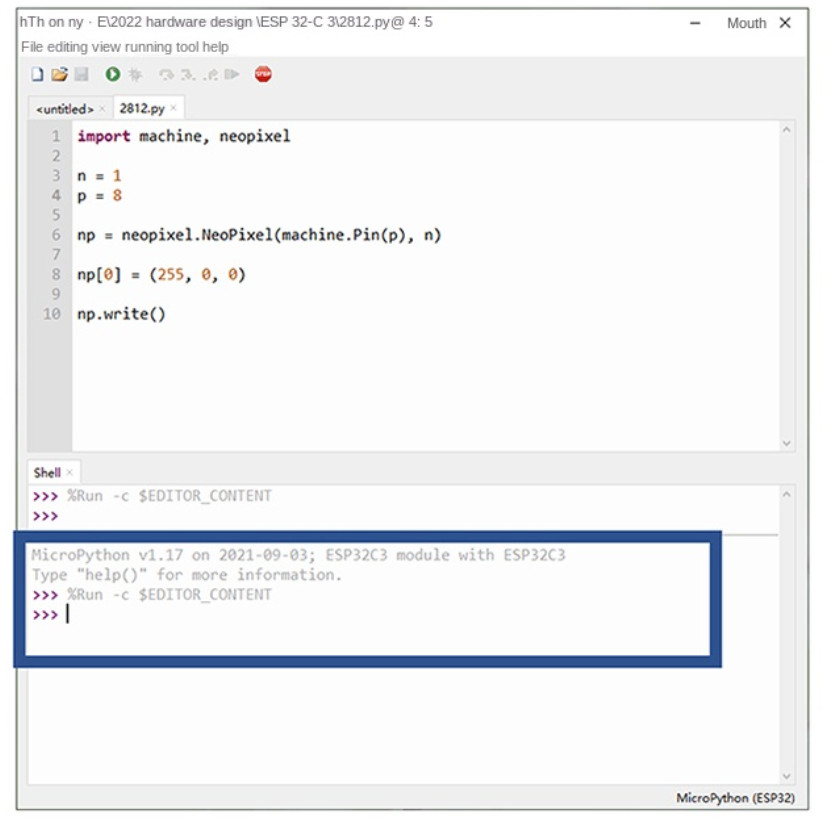

ESP32-C3 can use Micropython for Python language programming control, IDE recommends to use MIT authorized Thonny software developed by the University of Estonia.

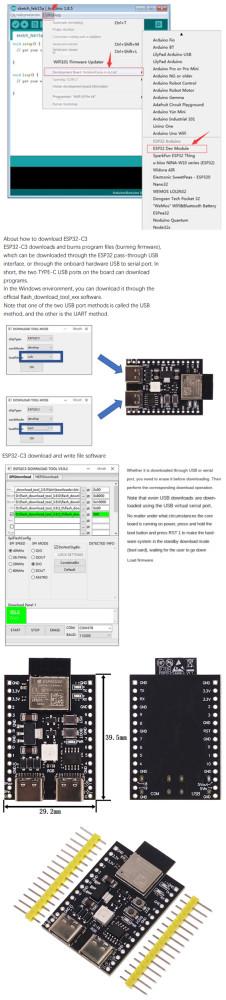

ESP32-C3 uses for Arduino IDE software
