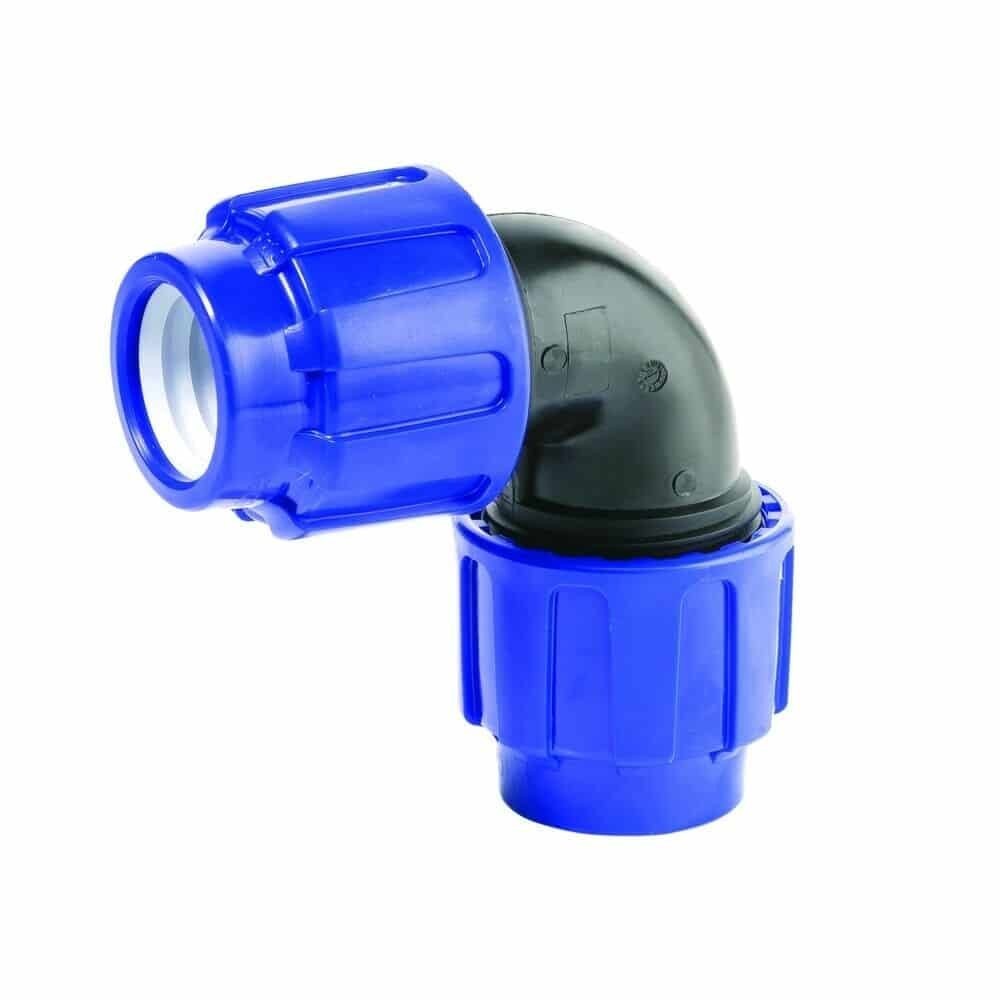

PP PE Pipe Fitting 90° Angle 2 Fittings 40 x 40

PP PE Pipe Fitting 90° Elbow 2 Fittings 40 x 40

Are you looking for compression fittings and connectors for your pressure pipe systems?
We offer you the suitable PE pipe fitting for private or industrial use.

Suitable for use in drinking water applications.

Technical Data (see image)

D: 40 x 40
DN: 32
PN: 16 (240 psi)
L: 92
Z: 24
E: 80

Our All-Round Talent

Our PE pipe fitting is an all-round talent. It is made of polypropylene and is therefore very impact and crack resistant.
At the same time, it is very durable and shows little or no signs of wear or use even after long use.
It insulates ideally and is resistant to acids, alkalis, salts, and other organic solutions.
Our PE pipe fitting (also called fitting) is particularly light and can be installed in no time.
You benefit from the high quality of the product we offer, as our PE pipe fitting (compression connector) is tested and certified by globally recognized testing institutes.
You can order the PE fittings from us in several variants and apply them in a wide variety of areas. The most important points at a glance:

• PE pipe fitting in various variants
• blue/black
• suitable for use in drinking water applications
• very easy installation
• secure connections, high tightness
• very durable, acid-resistant, and very impact-resistant
• temperature range from 0°C to 80° (temporarily up to 110°C)
• maximum allowable pressure at 20°C = PN16 (240psi)


We offer various models

• Shut-off valve
• End cap
• Compression sleeve
• Coupling with male thread
• Coupling with female thread
• Coupling with socket
• Coupling with reduction
• Assembly key
• T-piece with 3 fittings
• T-piece with male thread
• T-piece with female thread
• T-piece with extension
• T-piece with reduction
• Adjustable wall bracket with female thread
• Elbow with 2 fittings
• Elbow with male thread
• Elbow with female thread

Our fitting meets the standards EN 712/713/715 and ISO 3501/3458/3459.
It is optimally suited for fitting on PE pipes according to the standards ISO 11922; DIN 8072/8074 and UNE 53131.

Affordable and safe: our PE pipe fitting!
