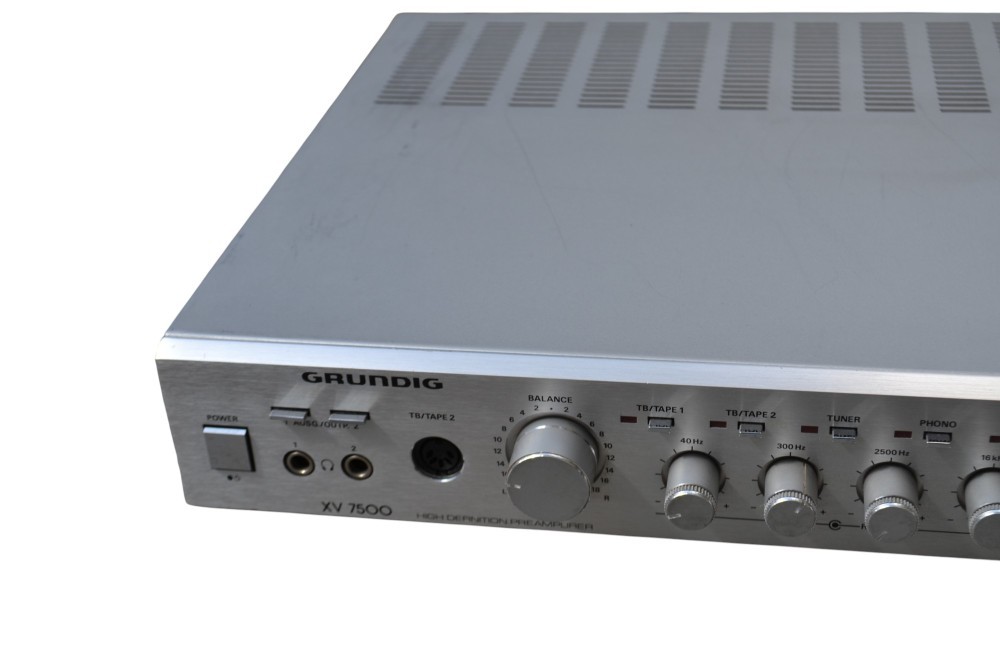

Preamplif Grundig XV 7500

Preamplif Grundig XV 7500: argintiu, balance, regaje, 40Hz/300Hz/2500 Hz/16kH, phono selector, 2 iesiri casti, high fidelity, 6 intrari, 2 iesiri, made in Portugal, poze reale.

General

• Manufacturer: Grundig
• Model: V 7500
• Type: Integrated amplifier
• Years of manufacture: 1984 - 1987
• Made in: Portugal
• Colours: Silver, Black
• Remote control: no
• Power consumption: 300 W max.
• Dimensions: 450 x 110 x 340 mm (WxHxD).

Weight:

• Original price approx: 698 DM MSRP.

Connections

• Number of inputs:
  • Phono (MM), CD/Aux, Tuner, Video/Aux, Tape 1, Tape 2, Monitor.
• Number of outputs:
  • Line Out rec1, Line Out rec2.
  • Loudspeakers/headphones: 4/1 pieces

Technical Data

• Rated power according to DIN45500

8 Ohm: 2 x 45 W 4 Ohm: 2 x 70 W

• Music power according to DIN45500
  • 8 Ohm: 2 x 100 W
  • 4 Ohm: 2 x 50 W
• Minimum load resistance 4 Ohm
• Distortion at 1kHz and rated power:
  • Distortion: < 0.01%.

intermodulation: < 0.08

• Frequency response: < 5 Hz - >70000Hz
• Dynamics at nominal power/50mW
  • Noise voltage ratio according to IEC
    • High level: >102/75 dB

phono MM : >102/75 dB Sound-to-voltage ratio according to DIN High level: >92/66 dB

• • • Phono MM : >69/64 dB
  • External voltage distance according to IEC
    • High level: >99/72 dB
    • Phono MM : >73/70 dB

External voltage spacing according to DIN High level: >95/67 dB

• • • Phono MM : >69/66 dB
• Tone control: yes
  • Bass: yes

treble: yes

• • Mid: yes
• Lineart button: yes
• High Filter: no
• Low Filter (Subsonic): no
