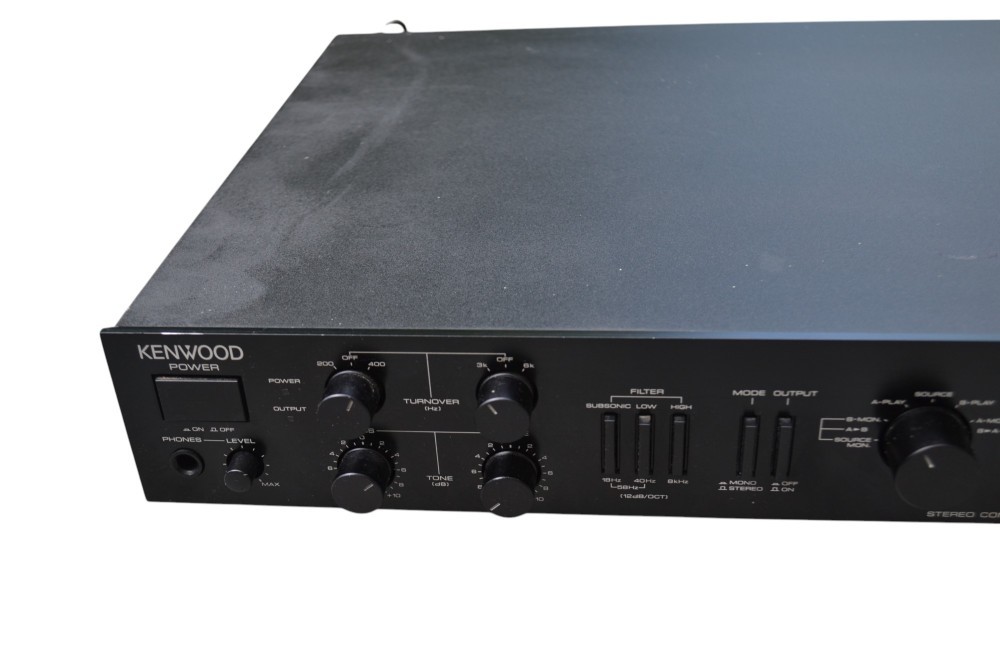

PreAmplificator Kenwood Basic C 2

  PreAmplificator Kenwood Basic C 2 : 7 intrari, 1 iesire, reglaje bass, treble, pe frecventa, low/high filter, loudness, phon selector, made in Japan.

General

• Manufacturer: Kenwood
• Model: Basic C 2
• Type: Preamplifier
• Years of manufacture: 1983 - 1990
• Made in: Japan
• Color: Black
• Remote control: -
• Power consumption: 12 W
• Dimensions: 440 x 80 x 320 mm (WxHxD)
• Weight: 4.7 kg
• Original price approx.: 998 DM

Connections

• Number of inputs:
  • Phono MM: 2.5 mV / 47 kOhm, 100 kOhm (switchable), max. 200 mV.
  • Phono MC: 0.2 mV / 10 Ohm, 30 Ohm, 100 Ohm(switchable), max. 5 mV

CD: 150 mV /47 kOhm Tuner: 150 mV /47 kOhm AUX 1, 2: 150 mV /47 kOhm

• • Tape Play 1,2 : 150 mV /47 kOhm
• Number of outputs: 3
  • Tape Rec 1, 2: 150 mV / 220 Ohm
  • Pre Out: 1 V, 100 Ohm

Specifications

• Frequency response:
  • Phono MM & MC: 20 Hz - 20 kHz, - 0.3 dB

CD, AUX, TUNER, TAPE: 1 Hz - 350 kHz, -3 dB Distortion factor:

• • Phono MM & MC: 20 Hz - 20 kHz, 0.002 %

CD, AUX, TUNER, TAPE: 20 Hz - 20 kHz, 0.001 % at 1 V Signal-to-noise ratio:

• • Phono MC: 70 dB
  • Phono MM: 88 dB

CD, AUX, TUNER, TAPE: 110 dB

• Stereo channel separation:
• Tone control

Bass: 200/400Hz/off, ± 10 dB Treble: 3kHz/6kHz/off, ± 10 dB

• Loudness: switchable

Volume at -30 dB: 100 Hz, 6 dB Volume at -40 dB: 100 Hz, 9 dB

• High Filter: 8 kHz
• Subsonic Filter: 18Hz, 12 dB/Octave
• Low Filter: 40Hz, 58Hz, 12 dB/Octave
• Mute: switchable (headphones remain on)
• Direct/Line-Straight: yes, if tone control is set to "off
• Rise time: 1.0 us

Special Features

• High-gain FET phono input with 2xMM/3xMC adjustment.
• Two-stage "super-coupled" volume control
• Tone control without coloration counter-coupled
