Preamplificator Yamaha CX 1000 Hi End

Preamplificator Yamaha CX 1000 Hi End:  10 intrari, 2 iesiri, mufe aurite, optical/coaxial, made in Japan, negru, senzor telecomanda, bass/medii/inalte, loudness variabil, muting, source direct, poze reale.

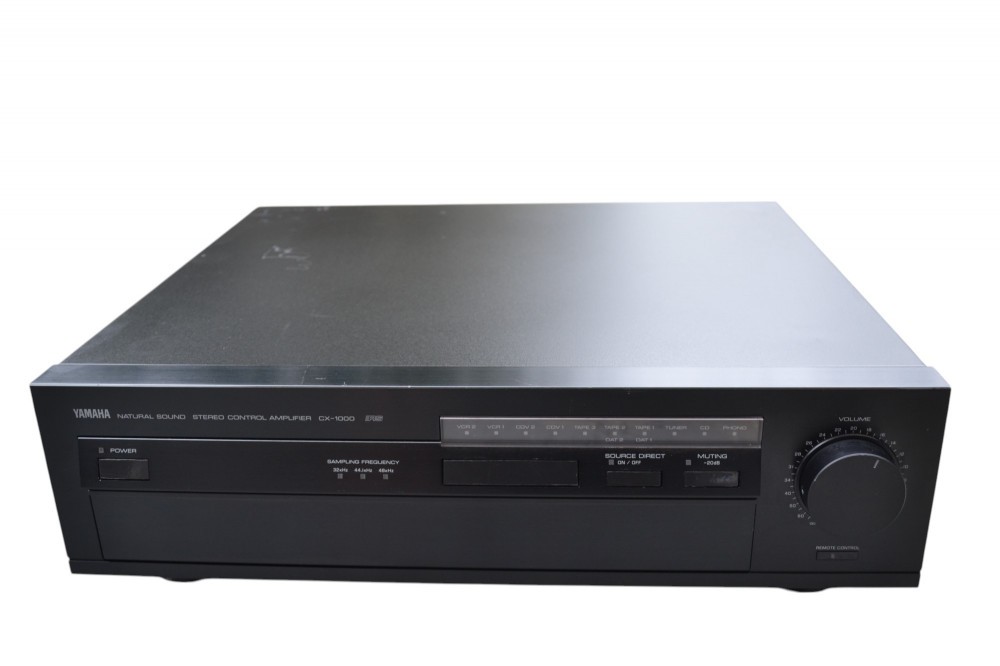

Yamaha CX-1000

Natural Sound Stereo Digital Pre-amplifier (1987-92)

 add a review

Description

The CX-1000 is capable of accepting both analog and digital signals from components.

Digital connections may be made by either coaxial connections or optical fibre connections.

Automatic detection of the data rate is performed, using the Hi-Bit technology system, with an 18-bit filtering system and 8 times oversampling, dramatically reducing the possibility of digital 'dropout'.

Any sampling noise is boosted by the three stage filtering process to frequencies so far above the music that there is virtually no chance of it interfering with your listening pleasure.

Excellent linearity is achieved by use of the Hi-Bit twin D/A converters, using a floating system to shift low-level signals away from the area of most likely converter error.

Direct output from the D/A converters results in a pure sound amazingly close to the original.

Specifications

Frequency response: 20Hz to 20kHz

Total harmonic distortion: 0.001%

Input sensitivity: 0.1mV (MC), 2.5mV (MM), 150mV (line)

Signal to noise ratio: 91dB (MC), 95dB (MM), 106dB (line)

Channel separation: 70dB (MM), 70dB (line)

Output: 150mV (line), 1.5V (Pre out), 12V (Pre out Max)

Dimensions: 435 x 130 x 400mm

Weight: 11.5kg

Year: 1988
