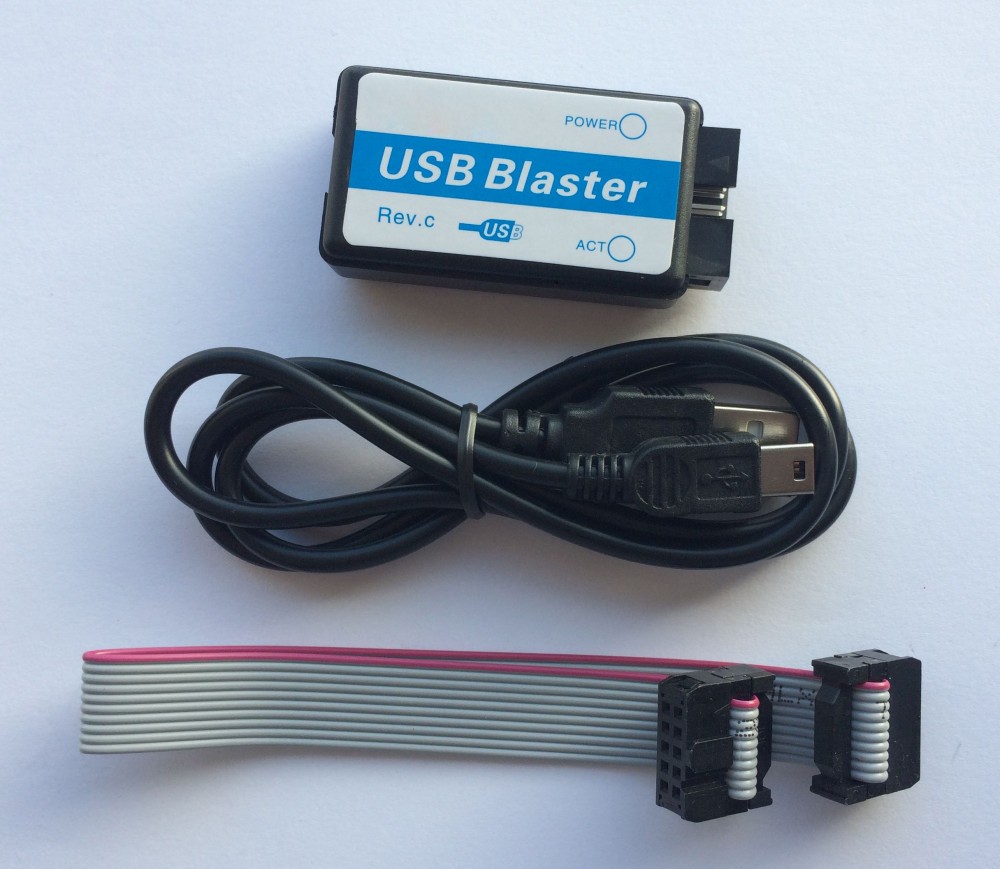

Programator Altera (p.970)

1 support SignalTap II embedded logic analyzer function

2 support full range of devices at ALTERA company

CPLD: MAX3000, MAX7000, MAX9000 and MAXII etc
FPGA: Stratix, StratixII, StratxIII, Cyclone, CycloneII, CycloneIII, ACEX1K, APEX20K and FLEX10K etc
Active serial configuration device: EPCS1, EPCS4, EPCS16, EPCS64 etc
Enhanced configuration device: EPC1, EPC4 etc

3 support three types download mode: AS, PS and JTAG

4 support Nios II embedded soft-core processor communication and debugging in the system, Rev.C is the latest firmware

5 high speed: 6 times faster than commonly used parallel download ByteBlasterII

6 easy to use: MiniUSB interface, connection is convenient, 2 state indicating lamp to make debugging easier

7 note: notebook computer has almost eliminated the parallel port, so commonly used ByteblasterMV and ByteblasterII download cable have been unable to use in a notebook, so for laptop users, use USB download cable is convenient, is a must

8 compatible with ALTERA USB Blaster, at the same with usage method, functional and performance and original ALTERA download line

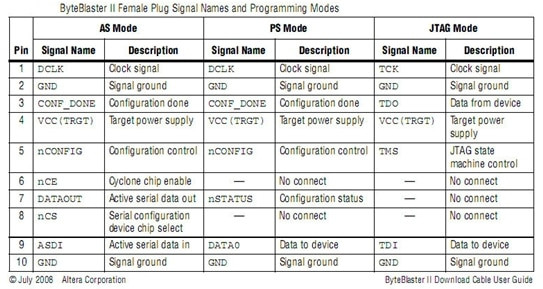

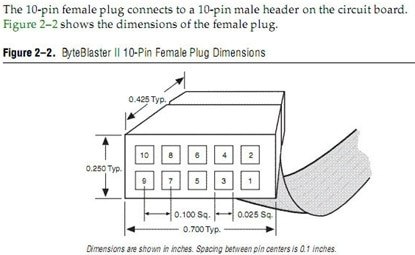

Pin definition: used for the Altera standard, defined as follows:

System configuration
1, support WinXP, Win7 system
2, Quartus II version 4.0 and above
