Programator AVR USBASP ISPASP

Cost unic de transport la toate comenzile acestui vanzator

Descriere

Vânzatorul este direct răspunzator pentru produsul afișat în această pagină.

Disponibilitate: Indisponibil - Vezi produse similare

Specificatii

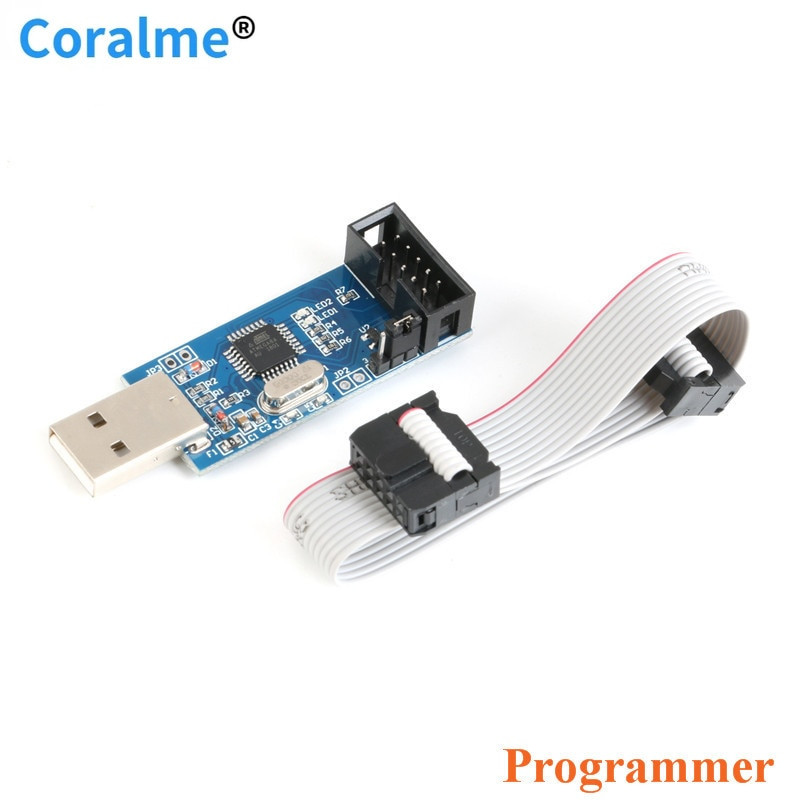

USBASP USBISP 51 52 AVR Programmer

Product Features
The programmer is equipped with a brand new original imported ATMega8A-AU chip, which supports all ASP chips of AT89S51/52 single chip AVR. The output port is the ATMEL standard port. There is USB power supply and support target board voltage 5V, which can be selected by jumper cap connection. AUTOSPEED automatic speed control firmware, the downloader will automatically track the chip frequency to be programmed, automatically change the speed to achieve automatic speed control. The PROGRAMMING programming interface is reserved and the user can upgrade the downloader firmware. Suitable for WIN8.1/8/7/XP 32/64 bit systems

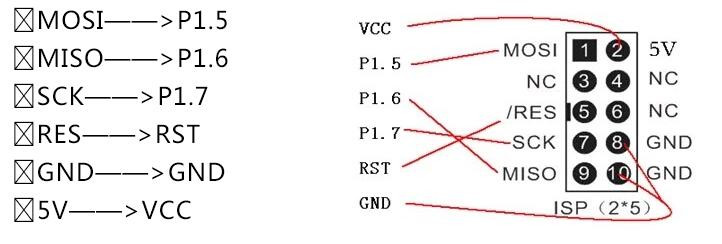

AT89S51 and S52 series pin and download line corresponding connection definition
AVR Series
ATTiny12(L)         ATTiny13(V)         ATTiny15(L)         ATTiny24(V)
ATTiny25(V)        ATTiny26(L)         ATTiny2313(V)     ATTiny44(V)
ATTiny45(V)        ATTiny84(V)          ATTiny85(V)           AT90S2313(L)
AT90S2323(L)      AT90S2343(L)       AT90S1200(L)      AT90S8515(L)
AT90S8535(L)      ATMEGA48(V)       ATMEGA8(L)        ATMEGA88(V)
ATMEGA8515(L)  ATMEGA8535(L)   ATMEGA16(L)      ATMEGA162(V)
ATMEGA163(L)    ATMEGA164(V)    ATMEGA165(V)    ATMEGA168(V)
ATMEGA169(V)   ATMEGA169P(V)  ATMEGA32(L)      ATMEGA324(V)
ATMEGA325(V)   ATMEGA3250(V)   ATMEGA329(V)    ATMEGA3290(V)
ATMEGA64(L)      ATMEGA640(V)     ATMEGA644(V)    ATMEGA645(V)
ATMEGA6450(V)  ATMEGA649(V)     ATMEGA6490(V)  ATMEGA128(L)
ATMEGA1280(V)  ATMEGA1281(V)   ATMEGA2560(V)  ATMEGA2561(V)
AT90CAN32        AT90CAN64           AT90CAN128        AT90PWM2(B)
AT90PWM3(B) and so on.

10Pin To 6 Pin Adapter Board

Product Features

  • It can be used for standard 10PIN interface to standard 6PIN interface conversion of programmers such as AVRISP USBASP STK500.

  • Can be used for AVR series MCU development board download interface conversion.

  • Can be used for Arduino development board ISP interface conversion.
