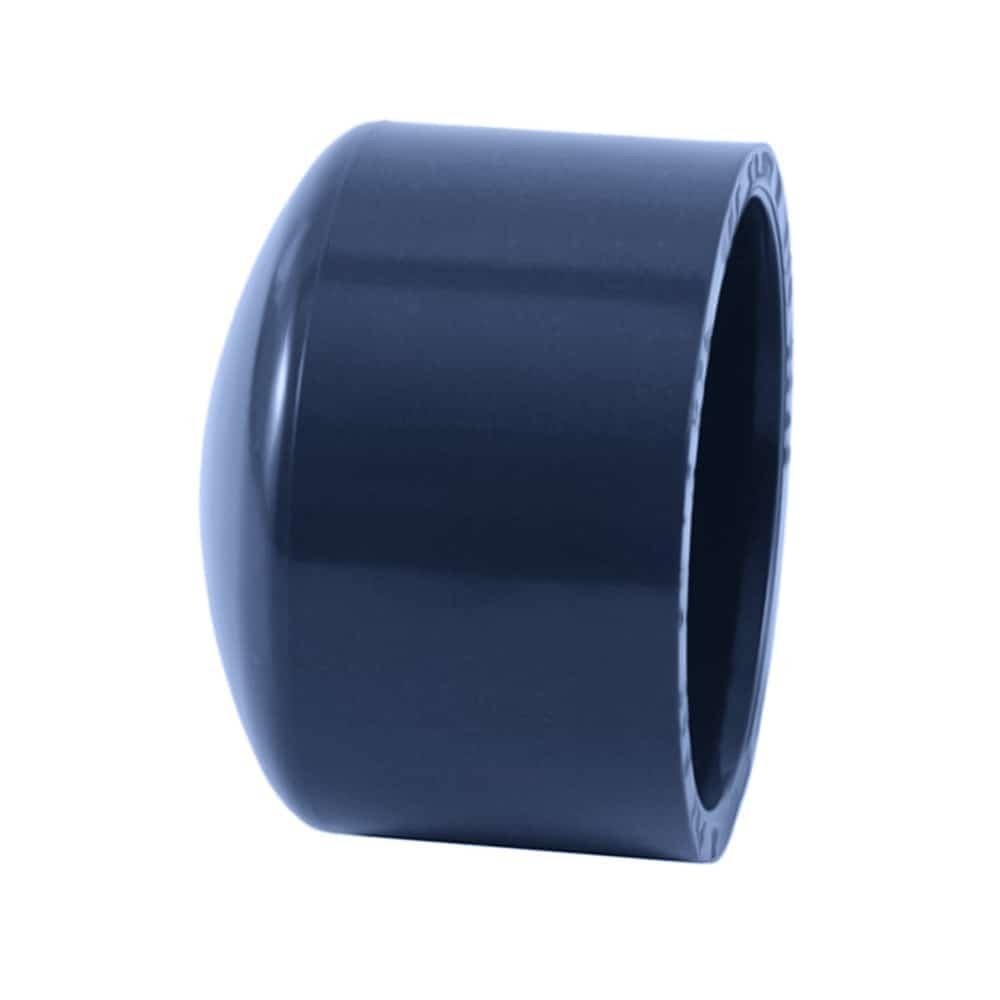

PVC-U Cap Adhesive Socket 40 mm PN16

PVC - U Cap Adhesive Socket 40 mm PN16

By gluing the fittings with the PVC pipe, shut-off valves, flow meters or sight glasses, a professional piping system can be created with little effort.
The combination of fittings and pipe sections is used in the fields of pool, pond and swimming pool construction, industrial and plant construction, agriculture, water supply, garden irrigation and sprinkler systems.
In private applications, many koi systems and aquarium systems are built with this connection.


Technical Data (see image)


D: 40
DN: 32
PN: 16 (240 psi)
L: 26mm
Z: 12mm
E: 50mm


PVC Fittings Advantages:


• lightweight
• easy processing, as the parts can be glued together (solvent welding)
• abrasion-resistant and smooth material
• resistant to a variety of chemicals
• extremely durable
• no corrosion
• perfect seal under harsh conditions


Technical Data:


• Cap Adhesive Socket 40mm
• Rigid PVC / PVC - U / Polyvinyl chloride
• PN 16 / 16bar at 20°
• Manufactured according to ISO 9001 certification


Material and Processing:


The high-quality PVC fittings are made of PVC-U, this rigid PVC material is particularly durable and has good chemical resistance.
Since the fittings are all provided with a grease film after production, it is important to clean the fittings with a cleaner before solvent welding and to remove the grease film.
Cleaning the fittings is the basis of gluing them together, because if the fittings have not been properly cleaned, the adhesive cannot fully adhere to the surface.
Initially, you should use more adhesive, as too little adhesive will only become noticeable after completion due to leakage.


Construction with PVC Fittings:


The advantages lie in the installation of the PVC fittings, as the elements are glued together, significantly reducing installation time.
The bonding provides a long-lasting and robust connection that is very durable.
The fittings are quick to install and easy to handle, for which the choice of the right adhesive is very important. Cepex adhesive and cleaner are ideal for this, as they are durable and easy to process.


PVC adhesive fittings – use and installation.
With these fittings, piping systems and pipes with low water temperatures and low water pressures can be realized. Therefore, the fittings are ideal for filter systems in pond construction and aquaristics.


Further Uses for PVC Fittings:


• Swimming pools
• Whirlpools
• Pond construction
• Terrariums
• Aquariums
• Koi pond
• Tanks
• Plant construction
