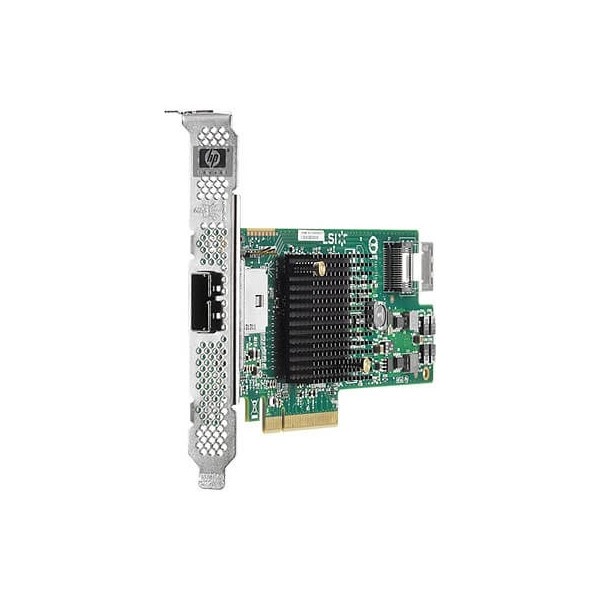

Raid Controller HP H222 - LSI SAS 9205-4i4e - 6Gb HBA - 660086-001

HP H222 Host Bus Adapter HBA 6GB/s SAS/SATA PCIe 3.0 1x SFF-8087 Internal Port, 1x SFF-8088 External Port, High Profile The HP H222 Host Bus Adapter is a 1X4 external port and 1x4 internal port HBA provides customers with the flexibility and speed they have come to expect from HP . The H222 HBA is ideal for internal and external connectivity to tape drives, HDDs, and external JBODs and provides support for both 6 Gb SAS and SATA Hard Disk Drives. In addition, H222 HBA controller provides support for SAS tape drives. H222 HBA can also provide high performance for SSDs that do not require data protection. This SAS HBA is ideal for driving cost-effective and reliable scalability in today's data centers. Specifications: Category Proliant Controller Sub-Category HBA Generation H222 Part Number 650926-B21 Products ID 461289 Manufacturer HP Host Interface PCI Express 3.0 x 8 Controller Type Serial ATA/600 SAS Ports 2 SAS Ports (Internal) 1x4 SAS Ports (External) 1x4 SAS Connector Details 2 SFF-8088 Height 2.7 inches Width 6.6 inches Thickness .6 inches SAS Support 6Gbps SATA Support 6Gbps Combined Throughput 48Gbps Max Capacity 330TB SAS/SATA
