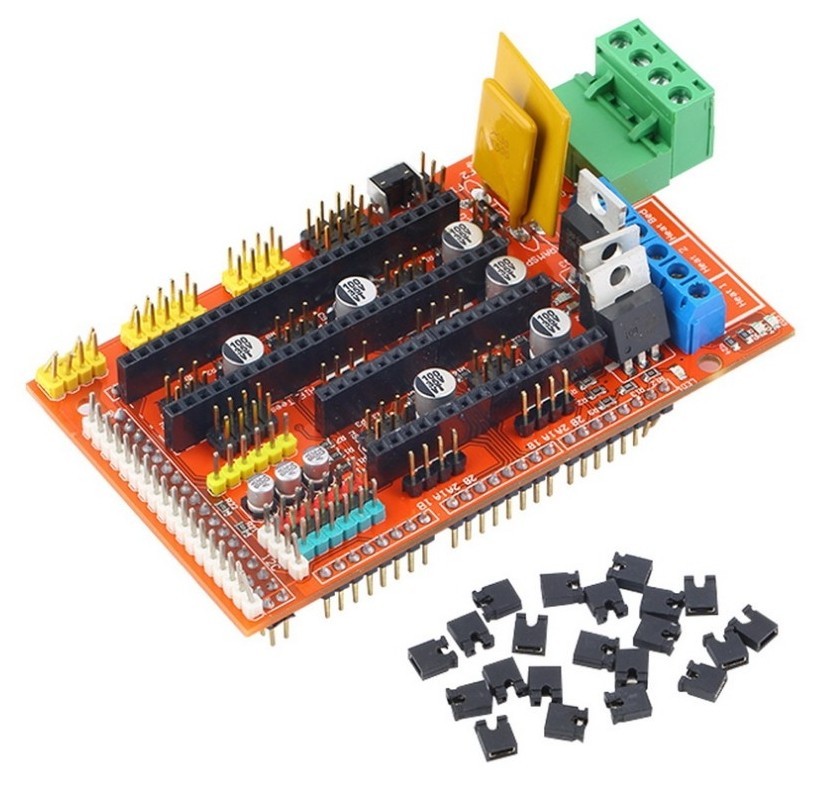

RAMPS 1.4 imprimanta 3D printer control panel REPRAP (r.071)

The RAMPS (RepRap Arduino Mega Pololu Shield) is an all-in-one design to fit the necessary components for a 3D printer into one plug in shield for an Arduino MEGA.

The plug in shield design includes plug in stepper drivers and extruder control electronics sockets for easy service, part replacement, upgrade-ability and expansion.

Additionally, a number of Arduino expansion boards can be added to the system as long as the main RAMPS board is kept to the top of the stack.

Ramps boards are the heart of most DIY 3D printers on the market and a nice clean compact way to integrate all the systems into a compact enclosure mountable format.

Feature:

Fully assembled and tested

Stable performance

3D Printer controller board

Ramps 1.4 for Reprap Mendel Prusa

With rules of Cartesian coordinate robot and extruder

Could control spare parts

With heater/fan output/three thermistor MOSFET

Integrated 5A extra safety and components protection

Suit for 5 Pololu stepper driver plate

Pololu plate pin socket

I2C/SPI pin for future development

All MOSFET with PWM pins

Product Specifications:

Model No: RAMPS 1.4

Model Type: 3D Printer Control Board

Suitable driver plate :5 Pololu stepper driver plate

Size:100 mm * 60 mm

Pachetul conține:
• 1 bucată x RAMPS 1.4 imprimanta 3D printer control panel REPRAP (cod produs: r.071)

Se expediază în toată țara prin curierat rapid în sistem ramburs.

• DPD - 15,5 lei
• FAN COURIER - 15,5 lei
• Urgent Cargus - 15,5 lei
• Poșta Romană (Prioripost) - 15,5 lei

Dacă aveți nelămuriri sau întrebări vă rog nu ezitați să sunați sau să-mi scrieți.
