Specificatii

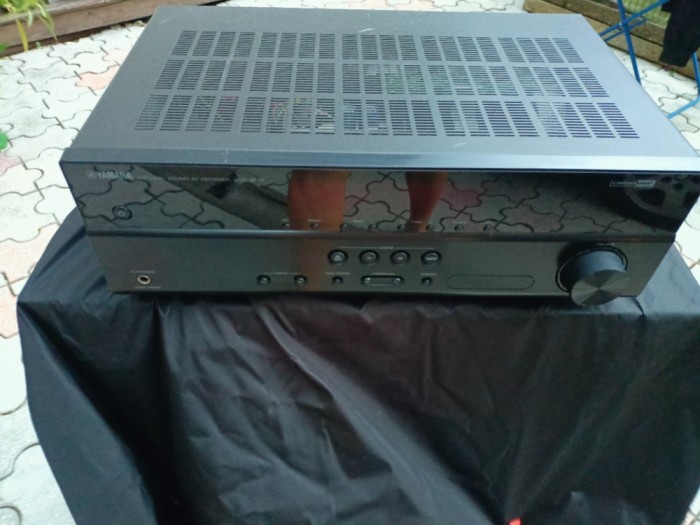

Receiver Yamaha HTR-2071 amplificator 4K 3D HDMI receiver 5.1 poze
absolut reale / receiverul functioneaza impecabil / stare optica
foarte buna - fara zgarieturi mari ATENTIE : VINE FARA TELECOMANDA
!!!! specificatii : .1-channel AV receiver with traditional Yamaha
sound quality and a great many convenient features. 5-channel
powerful surround sound --- 70 W per Channel (6 ohms, 20 Hz-20 kHz,
0.09% THD, 2-ch driven) --- 100 W per Channel (6 ohms, 1 kHz, 0.9%
THD, 1-ch driven) --- 135 W per Channel (6 ohms, 1 kHz, 10% THD,
1-ch driven) Discrete amp configuration Compressed Music Enhancer
HDMI® (4 in / 1 out) with 4K Ultra HD full support (4K / 60p
[4:4:4]), HDR Video and BT.2020 Dialogue Level Adjustment for
proper sound balance with dialogue and vocals Virtual CINEMA FRONT
provides virtual surround sound with 5 speakers in front
Multi-language colour OSD capable of displaying cover art ECO mode
operation for about 20% less power consumption AV ReceiverAmplifier
SectionChannelRated Output Power (1kHz, 1ch driven)Rated Output
Power (20Hz-20kHz, 2ch driven)Maximum Effective Output Power (1kHz,
1ch driven) (JEITA)Dynamic Power per Channel (8/6/4/2 ohms)Surround
Sound ProcessingCINEMA DSPDSP ProgramsDialog Level AdjustmentSILENT
CINEMA / Virtual CINEMA DSPDolby Digital PlusDolby DigitalAudio
FeaturesCompressed Music EnhancerAdaptive DRC (Dynamic Range
Control)Initial Volume & Maximum Volume SettingAudio
Delay192kHz/24-bit DACs for all channelsVideo Features4K Ultra HD
Pass-through and upscalingHDMI 3D passthroughHDMI Audio Return
ChannelHDMI upscalingDeep Color/x.v.Color/24Hz Refresh Rate /Auto
Lip-SyncConnectivityHDMI Input/OutputHDMI CECDigital Audio
Input/Output: OpticalDigital Audio Input/Output: CoaxialAnalog
Audio Input/OutputPreoutHeadphone OutputTuner SectionFM/AM
TunerUser InterfaceOn-screen displaySCENERemote Control
UnitGeneralStandby Power Consumption (IR only)Auto Power StandbyECO
modeDimensions (W x H x D)Weight HTR-2071 HTR-2071 AV Receiver
Amplifier Section Channel 5.1 Rated Output Power (1kHz, 1ch driven)
100 W (6 ohms, 0.9% THD) Rated Output Power (20Hz-20kHz, 2ch
driven) 70 W (6 ohms, 0.09% THD) Maximum Effective Output Power
(1kHz, 1ch driven) (JEITA) 135 W (6 ohms, 10% THD) Dynamic Power
per Channel (8/6/4/2 ohms) - / 110 / 130 / 150 W Surround Sound
Processing CINEMA DSP Yes DSP Programs 17 Dialog Level Adjustment
Yes SILENT CINEMA / Virtual CINEMA DSP Yes (Virtual CINEMA FRONT)
Dolby Digital Plus Yes Dolby Digital Yes Audio Features Compressed
Music Enhancer Yes Adaptive DRC (Dynamic Range Control) Yes Initial
Volume & Maximum Volume Setting Yes Audio Delay Yes (0-500 ms)
192kHz/24-bit DACs for all channels Yes (Burr-Brown) Video Features
4K Ultra HD Pass-through and upscaling Yes (4K / 60p, 4:4:4) HDMI
3D passthrough Yes HDMI Audio Return Channel Yes HDMI upscaling Yes
(HDMI® to HDMI) Deep Color/x.v.Color/24Hz Refresh Rate /Auto
Lip-Sync Yes Connectivity HDMI Input/Output 4 / 1 (HDCP2.2, HDR and
BT.2020 compatible) HDMI CEC Yes Digital Audio Input/Output:
Optical 1 / 0 Digital Audio Input/Output: Coaxial 2 / 0 Analog
Audio Input/Output 2 / 0 Preout SW Headphone Output 1 Tuner Section
FM/AM Tuner Yes (FM only) User Interface On-screen display Yes
(colour OSD) SCENE SCENE (4 sets) Remote Control Unit Yes General
Standby Power Consumption (IR only) ≤0.3W Auto Power Standby Yes
ECO mode Yes Dimensions (W x H x D) 435 x 151 x 315 mm; 17-1/8” x
6” x 12-3/8” Weight 7.4 kg; 16.3 lbs.
