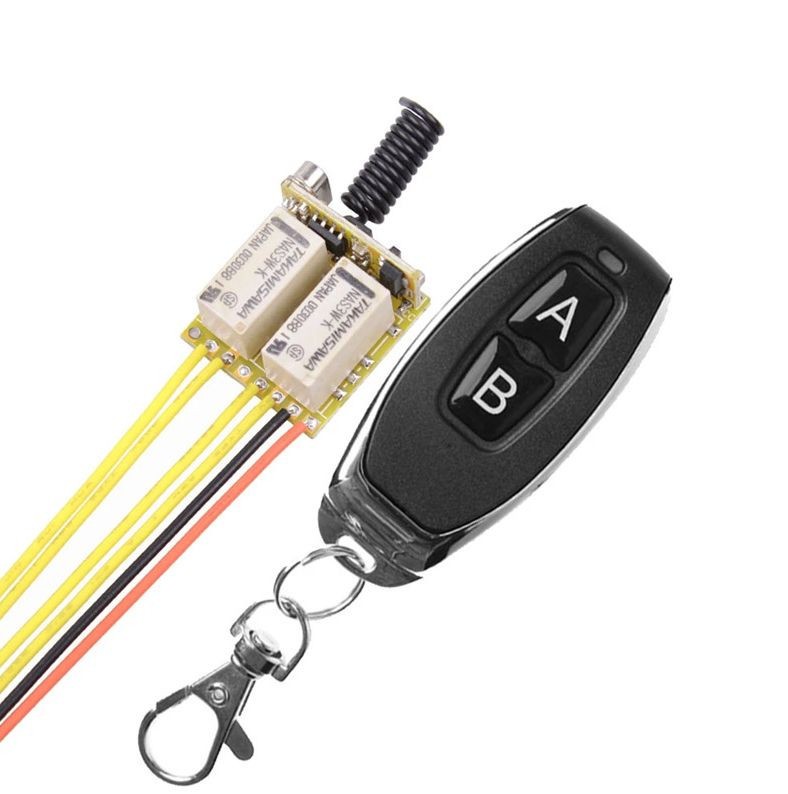

Releu comutator wireless miniatura si telecomanda cu doua canale 4-12v

Mini receptorul RF functioneaza pe frecventa de 433Mhz, telecomanda
inclusa este codata cu cod unic EV1527. Modulul se poate alimenta
cu tensiuni intre 4-12VDC. Pe placa exista doua relee cu contacte
normal inchis si normal deschis. alimentarea modulului se face la
bornele marcate VCC plus si GND respectiv minus. Produsul nu este
un dispozitiv gata de lucru ci un component si necesita dupa caz
asamblare, reglare, instalare de catre o persoana specializata.
Utilizarea incorecta poate duce la distrugerea iremediabila a
produsului ! Pachetul contine un receptor si o telecomanda cu
baterii incluse. Instructiuni pentru setare si inrolarea
telecomenzii in limba engleza: Jog mode: short press a pair of code
buttons, the indicator light is on, press the A button to send the
code, the receiver indicator flashes 3 times, then press the B
button again to send the code, the indicator light flashes 3 times
and the code is successfully paired. Self-locking mode: short press
the pair code button once, the indicator light is on, short press
the pair code button again, after the indicator light flashes once,
press the A button to send the code, the receiver indicator light
flashes 3 times, then press it again B key to send code, after the
indicator light flashes 3 times, the code is successfully matched.
Interlock mode: short press the pair code button once, the
indicator light will be on, then short press the pair code button
twice, after the indicator light flashes 2 times, press the A
button to send the code, after the receiver indicator flashes 3
times, press B immediately Press the key to send the code, after
the indicator light flashes 3 times, the code is successfully
matched. Code clearing method: long press the learning button for
about 8 seconds, the indicator light flashes from on for 3 times
and then turns off, the code is cleared successfully Before
switching the working mode each time, please clear the code first!
