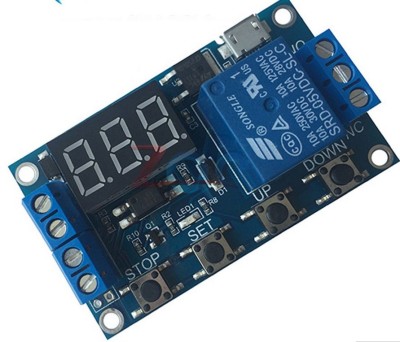

Releu timp timer temporizator regabil ciclic automaTIZARI centrala peleti 5 -36 V

4 moduri de functionare Tensiune alimentare 5-16 volti. Tensiune
semnal 2-20 volti. Releul suporta 10A. 2. Trigger Signal Source:
High Level Trigger (3.0 V-24 V), signal ground and system ground
are not common, which can increase anti-interference abilit system
(short circuit can also connect with a ground common) 3. Output
Capacity: can control no more than DC 30V 5A AC or 220 V devices 5A
4. Optocoupler Isolation: improve the anti-interference ability,
after the parameter setting, it will memory forever Warning: Relay
contact is passive and electricity production; 1 channel has the
control function on / off Operation mode: P1: After triggered
signal, power relay on time OP, then turn off; within the OP period
following operation: 1) P1.1: signal being triggered again is not
effective 2) P1.2: signal being triggered again, start time again
3) P1.3: signal being triggered again, reset; disconnect relay,
stop timing P2: giving the trigger signal, the time after shutdown
relay CL power relay OP time; then timing, turn off the relay P3.1:
give the trigger signal after the power relay on time OP, CL
shutdown time relay; then operating cycle above cycle gaive signal
again, shutdown relay stop timing; cycle times (LOP) can be set
P3.2: after connecting. no need to trigger signal, power relay on
time OP, CL shutdown time relay; then the operating cycle above
timea cycle (LOP) can be set Q4: keeping the function of the
signal; if there is no trigger signal, the time will be canceled,
relay stay connected; when the signal disappears, timing OP turn
off the relay; over time, if no signal again, the time is cleared
Time interval: 0.1 s (minimum) ~ 999 min (maximum) continuously
adjustable how to choose the time interval: in the selection of
parameter set interface mode, and press the STOP button to select
the time xxx. if the decimal point is in some place, the time
interval is s-1 999 s xx. x is decimal place is ten, the time
interval is 0.1 s 99.9 s- x. x. x is the decimal point are all on,
the time interval is 1 min-999 min parameter Introduction: OP power
over time, turn off time CL, LOP cycle times (1-999 times, "---" is
unlimited cycle) How to set the parameter: 1. First make sure relay
operation mode 2. According to the operaiting relay mode, the main
interface (power module will flash current operating mode; standard
mode P1.1, then come intot main interface); long press SET key two
seconds and then looen enter selection interface mode; by pressing
UP, DOWN key to choose the mode setting (P1.1 ~ P4) 3. After
selecting the mode, press short SET to set the corresponding
parameter, then the parameter you want to set will flash (OP power
in time; CL power off time; LOP cycle times, "---" is unlimited
cycle ); by UP, DOWN to set the parameter value, support long press
(increase or decrease quickly) and press slightly (increase or
decrease of 1 unit); after setting the parameter value by short
press the STOP key to choose decimal place; choose the time
interval (corresponding time interval is 0.1 s-999 min); Short
press SET to set the current mode next parameter, the process is
the same as above 4. After the setting mode parameter, press and
hold the SET button then hold the current configuration mode will
flash, then go back to the main interface; define success parameter
main interface: when the relay does not work, it will show "000"
(no decimal point); the operating state relay, the screen has a
decimal point Mode Select Interface: press and hold the SET key to
enter; after setting, long press the SET button back
