Senzor alcool, etanol MQ-3 / Sensor alcohol, ethanol Arduino (m.4712R)

Produsul este nou!

Specificații în limba engleză:

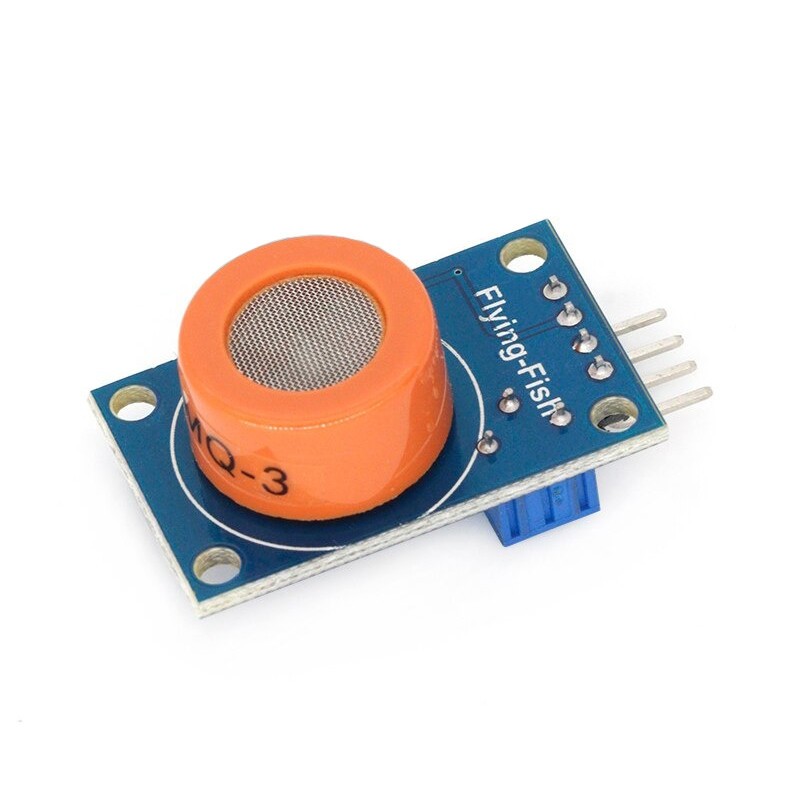

ICSG017A is a “Gas Sensor” module.

Size: 32mm X 22mm X 30mm length * width * height;

The main chip: LM393, MQ-x gas sensing probe;

Working voltage: DC 5V;

With signal output indicator light;

The dual signal output (analog output and TTL output);

The analog output and increased with the increase of concentration, the higher the concentration higher voltage;

Has a very high sensitivity to sulfide, benzene vapor, smoke and other harmful gases;

With a long service life and reliable stability;

Quick response and recovery characteristics;

With mounting holes, easy mounting;

The probe can be plug design, convenient test;

Application: for harmful gas family, environment detection device, is suitable for the detection of the ammonia, aromatic compounds, sulfide, benzene vapor, smoke and other harmful gas, gas sensitive element concentration range: 10 to 1000ppm provides reference cases.

Pachetul conține:
• 1 bucată x senzor MQ-3 (cos produs: m.4711R)
