Senzor de cantarire pentru corp uman, celula de sarcina 50kg cantar balante

Produsul este nou!

Produsul este la fel cu cel prezentat in fotografii!

Descriere în limba engleză:

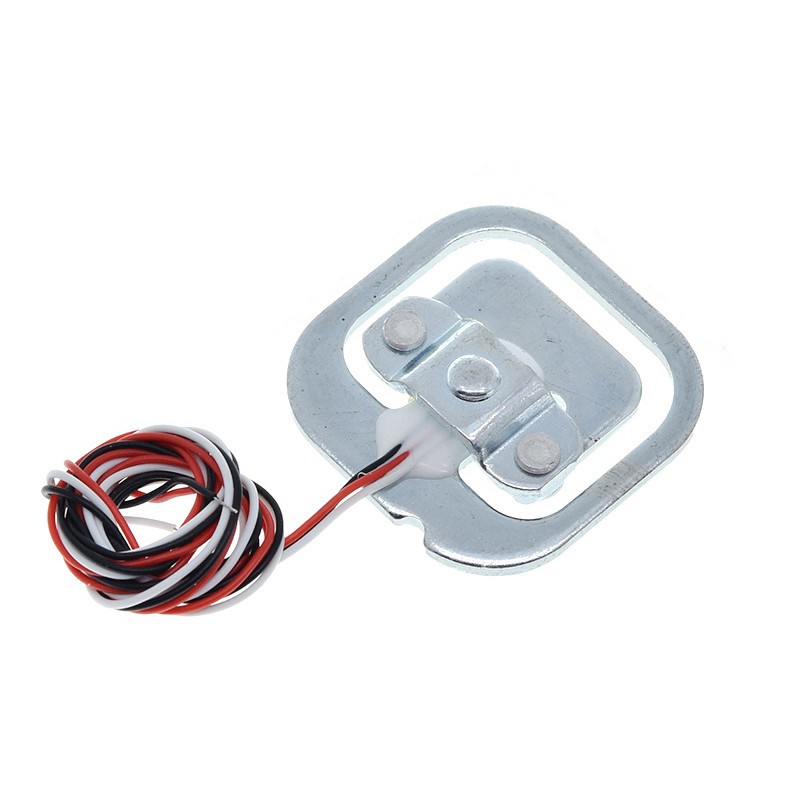

50kg Human Scale Load Cell Weight Sensors Body Load Cell Weighing Sensor

Feature:

Internal 1000 Ohm half-bridge strain gauge load cell, range is 50kg, half-bridge structure.

When measuring, the correct force is applied to the outer side of the strain E-shaped beam portion of the sensor

(i.e., a strain gauge affixed to the middle, with a beam of white plastic cover arm)

and the outside edges to form a shear force in the opposite direction,

i.e., in the middle of strain beam bending necessary changes can occur under stress,

strain beam side by another force can not have a barrier.

Specification:

Item Type: Weighing Sensor

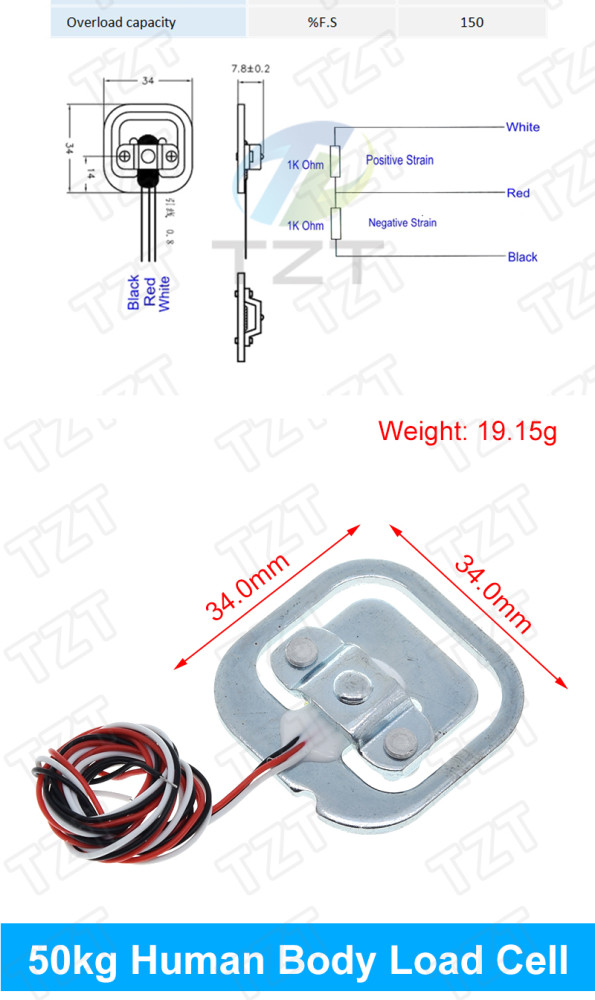

Dimension:3.4× 3.4cm/ 1.33× 1.33inches

Capacity:50kg/110lb(each)

Structure:Half-bridge

Output Sensitivity:1.0±15%mv/V

Nonlinearity:0.05 % F.S

Input Impedance: 1000±10ohm

Output Impedance:1000±10ohm

Insulation Resistance:≧2000 for ohm

The sensor use the following three methods:

1. Using a sensor with external resistors full bridge measurement range of a sensor range: 50kg. Higher requirements for external resistor

2. The use of only two full-bridge sensors measuring range is the range of the two sensors and: 50kgx2 = 100kg

3. The use of four full-bridge sensors measuring range is the range of four sensors and: 50kgx4 = 200kg
