Senzor higrometru umiditate sol

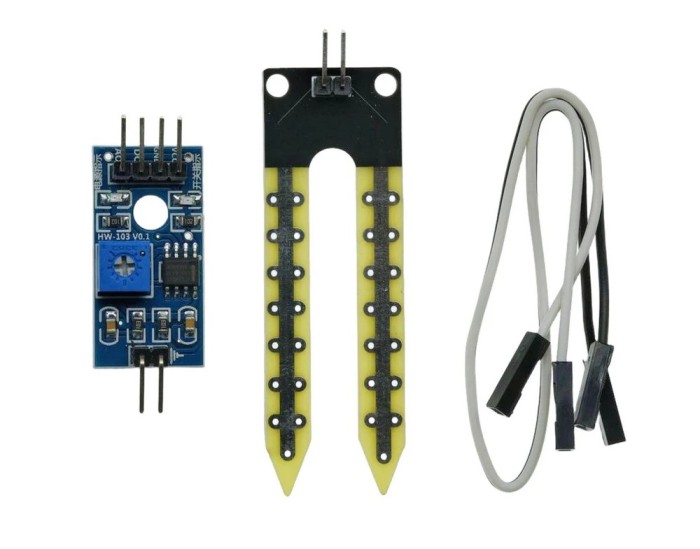

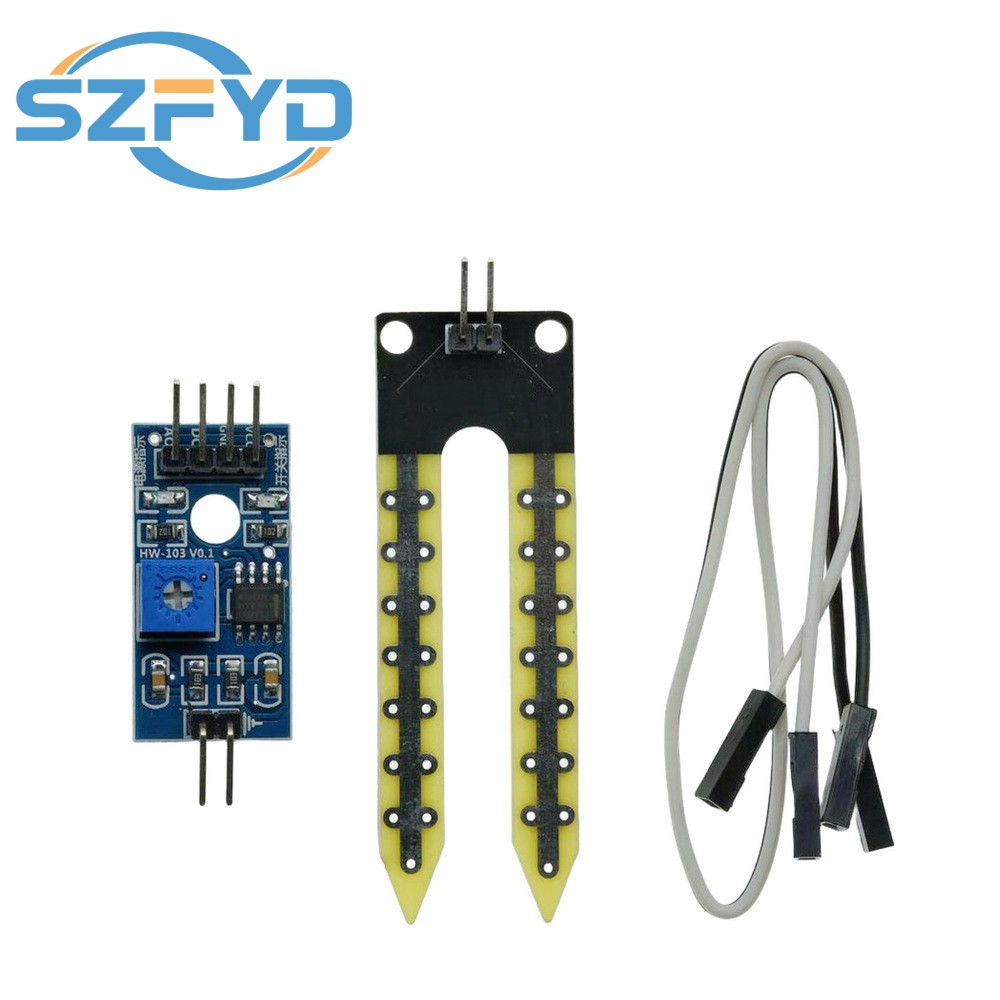

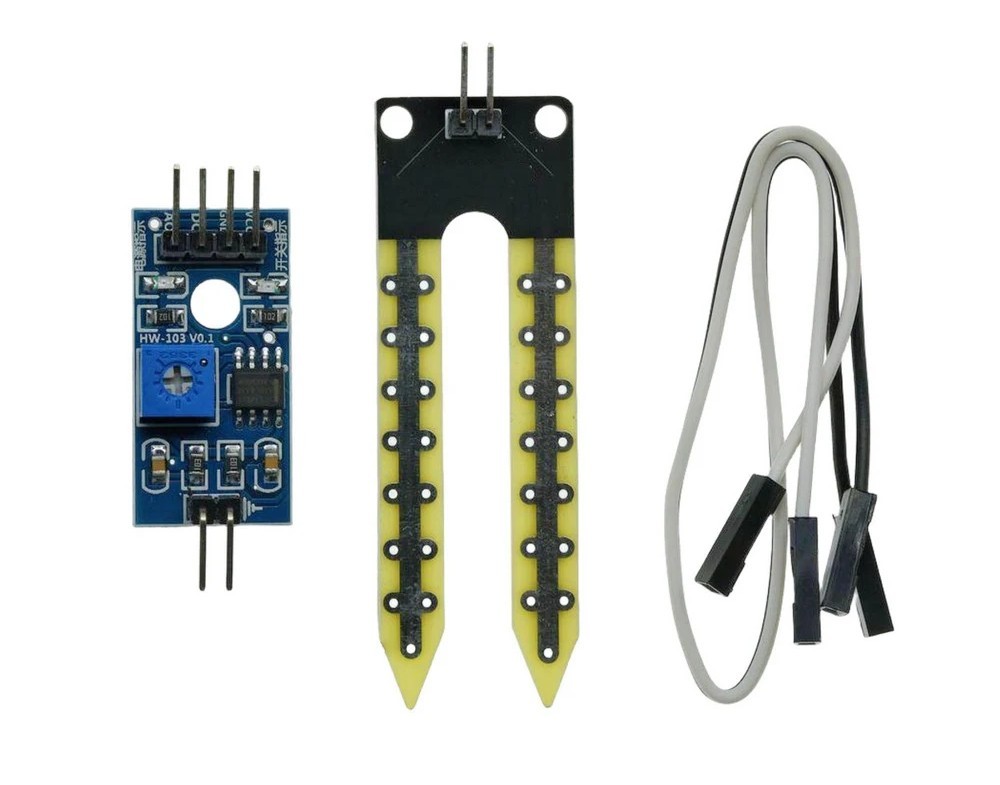

New Soil moisture meter to detect soil moisture sensor module robot smart car

A description of the baby

1 This is a summary of the moisture sensor can be used to detect soil moisture , soil water when the module outputs a high level , whereas the output low.  Using this sensor make an automatic watering system , so that your garden plants need people to manage .

2 adjustable sensitivity ( shown in blue digital potentiometer adjustment )

4 Operating Voltage 3.3V-5V

5 module dual output mode, the digital output is simple, analog output is more accurate.

6 with fixed bolt hole for easy installation

7 small PCB board size : 3cm * 1.6cm

8 power indicator ( red ) and digital switching output indicator ( green )

9 using LM393 comparator chip , stable

Two small plate interface specification ( 4-wire )

1 VCC 3.3V-5V external

2 GND GND External

3 DO small board digital output interface ( 0 and 1 )

4 AO small plates analog output interface

Three instructions

A module for soil moisture humidity most sensitive , generally used to detect soil moisture .

2 module in soil moisture reach the set threshold , DO port output high, when soil moisture exceeds the set threshold, the module D0 output low ;

3 digital outputs D0 small plates can be directly connected to the microcontroller through the microcontroller to detect high and low , thereby detecting soil moisture ;

4 small plates digital output DO OUR relay module can directly drive the buzzer module, etc. , which can form a soil moisture alarm equipment ;

5 small plates AO analog output modules can be connected to the AD , by the AD converter , you can get a more accurate value of soil moisture;
