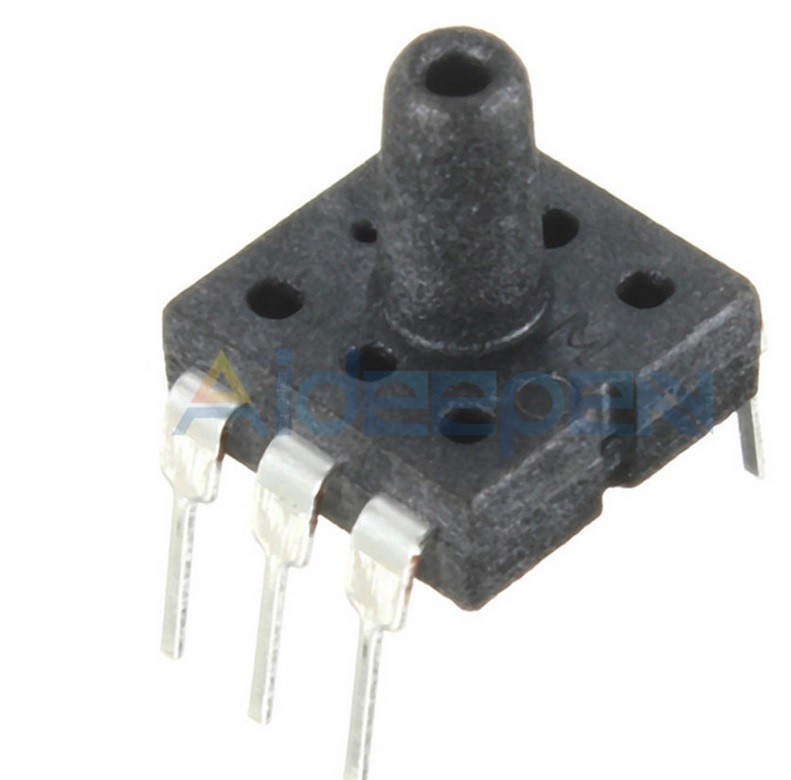

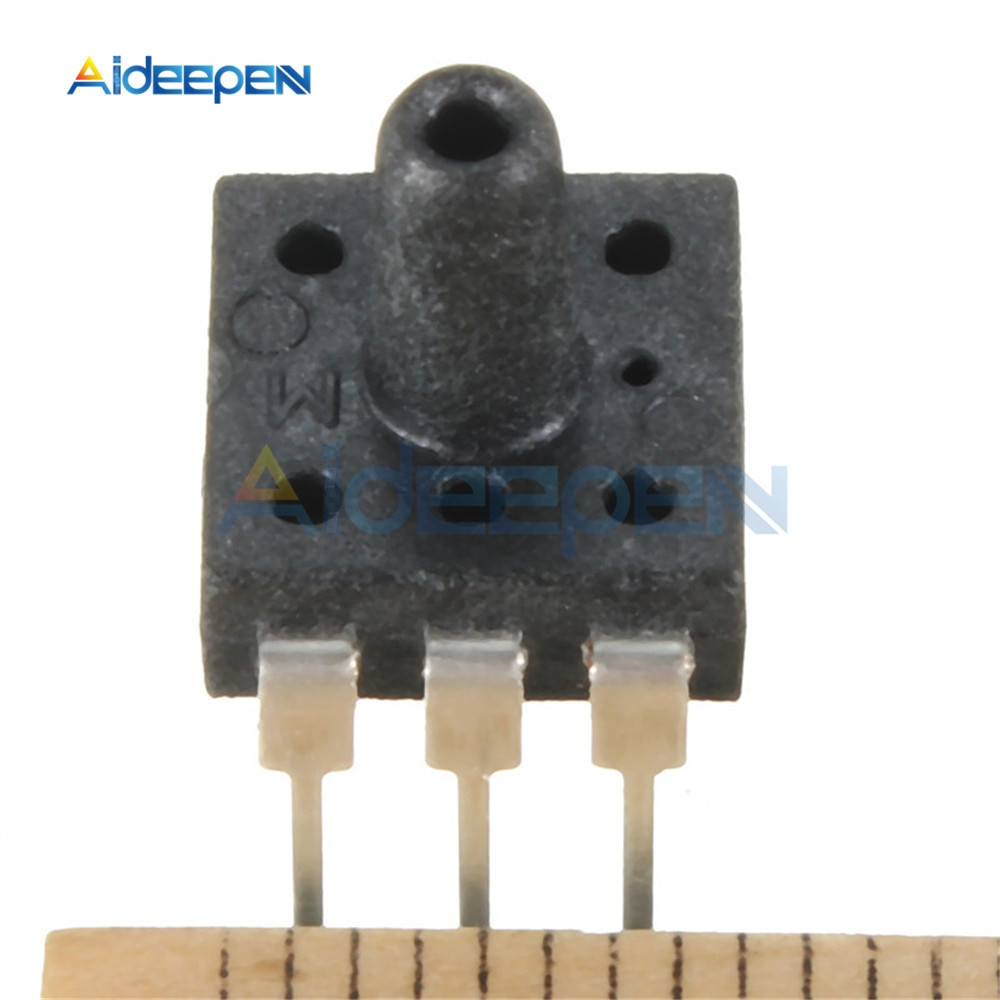

senzor presiune Air Pressure Sensor 0-40kPa DIP-6 arduin stm arm pic
Cost unic de transport la toate comenzile acestui vanzator
-
Produs:Nou, Fără garanție
-
Numar articol:207250100
-
Disponibilitate:Indisponibil
-
Preț:18,00 Lei
-
Anuntul a expirat la:10.11.2020, 00:30
-
Ai o nelamurire?
-
Vandut de:
-
Vinde si tu:Pune in vanzare un produs ca acesta
-
Optiuni:
Descriere
Vânzatorul este direct răspunzator pentru produsul afișat în această pagină.
Disponibilitate: Indisponibil - Vezi produse similare
Specificatii
Description:
- This DIP air pressure sensor is suitable for biomedical,
meteorology and other fields. The core part is pressure sensor chip
which is make by the MEMS pressure
technology.
- With wide applicable temperature
range.
- Easy to use and install.
- Fits for the following
types:
1. Automobile: tire pressure gauge, vehicle-mounted air pump, the
MAP sensors, diagnostic equipment, automotive
sensors.
2. Industry: air brake switch, portable pressure gauge, such as
digital pressure gauge, environment
monitor.
3. Medical equipment: patient monitoring and diagnostic equipment,
such as blood pressure monitor, medical instrument, and
monitor.
Specifications:
- Measuring medium: air
- Measuring range: 0-40kPa
- Operating temperature range: -40 ° ~ + 125
°
- Storage Temperature: -40 ° ~ + 150
°
- Humidity: (50% ± 10%) RH
- Ambient temperature: (25 ± 1)
°
- Medium temperature: (25 ± 1)
°
- Output impedance: 4kΩ ~
6kΩ
- Zero output: -15mV~+15mV
- Hysteresis: +-0.7%F.S.
- Power supply: ≤10V DC or ≤2.0mA
DC
- Insulation resistance: 100MΩ,
100VDC
Package Included:
1 x MPS20N0040D-D
Sphygmomanometer Dip Air Pressure Sensor 0-40kPa DIP-6 For
Arduino
