WLAN kit for Shuttle PCs: WLN-C and WLN-S

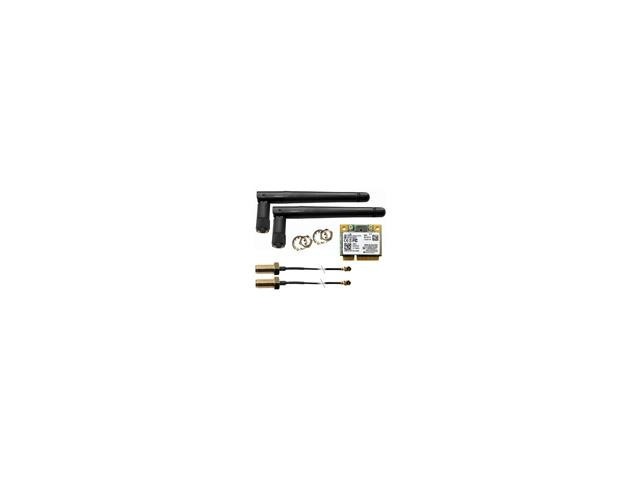

The Shuttle Accessory WLN-C / WLN-S is a wireless LAN kit consisting of a Mini-PCIe card, two antennas and appropriate cables. This accessory is intended for compatible Shuttle PCs to equip them with the wireless LAN standard according to IEEE 802.11b/g/n. Data transfer speeds of up to 300 MBit/s can be reached and WPA2 with AES encryption is supported, too.

What are the advantages over a conventional WLAN USB stick?

1. The Mini-PCIe card sits in the case and is better protected from tampering and theft
2. The integrated solution is more appealing
3. For the best possible efficiency the antenna should be at least 6cm long (half a wavelength at 2.4 GHz) which is a big advantage over the USB stick
4. The use of two antennas makes the communication between devices more reliable and can also transmit two signals at the same time resulting in significantly faster speeds as with single antenna WLAN devices
5. The transmission protocol of Mini-PCIe cards is less complex compared to USB which helps keep processor load lower

Specifications:

• Contents
  1. Mini PCIe Card (x1)
  2. Antenna cable (x2)
  3. Antenna (x2)
  4. Quick Guide (x1)
  5. Driver DVD (x1)
• Standard: WiFi IEEE 802.11b/g/n, 2T2R (2 transmitter, 2 receiver)
• Maximum PHY data rate: 144.4 / 300Mbps using 20 / 40MHz bandwidth
• Adapter card: model Chicony XW724E-K
  Half-size Mini-PCI-Express extension card
  Dimensions: 26.65 x 29.85 x 3.25 mm (LWH)
• Chipset: Realtek RTL8192CE
• Supported operating systems:
  Windows XP, Windows 7 32/64 Bit, Windows 8 32/64 Bit
• Frequency Band: 2400 ~ 2483.5 MHz
• Output power (typ.): 16 / 14 / 13 dBm in 802.11b/g/n mode
• Receiver Sensity (max.): -83 / -70 / -67 / -64 dBmÂ
  in 802.11 b / g / n(HT20-MCS7) / n(HT40-MCS7) mode
• Power consumption under Windows 7:
  TX mode: max. 1201 mW
  RX mode: max. 726 mW
  Idle mode: max. 320 mW
  Driver disable / Radio off: max. 23.1 mW
• Security: WEP / WPA / WPA2
  Hardware encryption: WEP, TKIP, AES
• Temperature Range: 0~70°C (Operating), 0~70°C (Storage)
• Humidity: 5~80 Non-Condensing
• EMC certification: CE
• Antenna cable:
  two WLAN cables (length: see table)
  U.FL, Hirose (for the internal WLAN adapter) toÂ
  RP SMA Pigtail male (connector for the external antenna)
• Antennas: two external WLAN antennas (RP-SMA)
  Frequency range: 2.4 GHz, omnidirectional
  Total length: 108 mm, diameter: 7.8~10.0 mm
