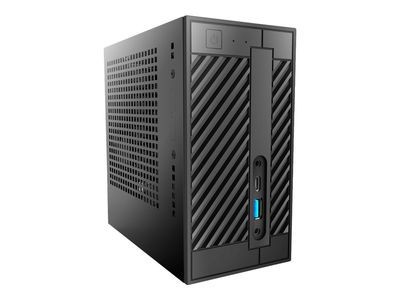

Sistem desktop brand ASRock DeskMini 310 MT, No CPU, No RAM, No HDD, No Graphics, No OS

 Sistem desktop brand ASRock DeskMini 310 MT, No CPU, No RAM, No HDD, No Graphics, No OS

Specificatii tehnice

Descriere Sistem desktop brand DeskMini 310 MT, No CPU, No RAM, No HDD, No Graphics, No OS de la ASRock

MinicPC AsRock Barebone DeskMini 310 Series Supports Intel® 9th/8th Core™ / Pentium® / Celeron® LGA1151 processors Dual DDR4 SO-DIMMs, up to 64GB Triple Video outputs: DisplayPort, HDMI & D-Sub 1 x Ultra M.2 PCIe Gen3 x4 Slot 2 x 2.5" HDD/SSD Tray 1 x M.2 (2230) Wi-Fi Slot USB 3.1 Gen1 Type-C port Micro SD Card Reader CPU - Supports Intel® 9th/8th Gen LGA1151 Processors (Max. TDP 65W) Cooler - Supports Intel® LGA115x CPU Cooler (Max. Height ≦ 46mm) Memory - Supports 2 x SO-DIMM DDR4-2666MHz, Max. 64GB (non-ECC) Chipset - Intel® H310 Graphics - Integrated Intel® UHD Graphics Graphics Output - 1 x HDMI (4K@30Hz) - 1 x DisplayPort (4K@60Hz) - 1 x D-Sub *Supports up to 2 displays simultaneously. Audio - 1 x Head Phone with Mic Jack - 1 x Mic-In - Realtek ALC233 Front USB - 1 x USB 3.1 Gen1 Type-C - 1 x USB 3.1 Gen1 Type-A Rear USB - 1 x USB 3.1 Gen1 Type-A - 1 x USB 2.0 Type-A Storage - M.2_1: Type 2280 PCIe Gen3 x4 & SATA 6Gb - 2 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive - 1 x Micro SD Card Reader LAN - 1 x RJ45 Gigabit LAN - Intel® Gigabit I219V WLAN - 1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module - Support Intel® CNVi module, PCIe Front I/O - 2 x USB 2.0 Headers, 1 x Front Panel Header - 2 x 4-Pin fan connectors (CPU, SYS) - 1 x DC-In Jack (Supports 19V Power Adapters) - 1 x Internal Speaker Header (4-Pin) - 1 x Chassis Intrusion Header (2-Pin) Rear I/O - 1 x HDMI* - 1 x DP* - 1 x VGA* - 1 x USB 2.0 Type-A - 1 x USB 3.1 Gen1 Type-A *Three graphics output options : HDMI, DP, VGA and supports up to 2 displays simultaneously. Connectors - 1 x USB 2.0 Header - 1 x Front Panel Header - 2 x 4-Pin Fan Connectors - 1 x DC-In Jack (Supports 19V Power Adapters) - 1 x 4-Pin Audio Header - 1 x Internal Speaker Header - 1 x 2-Pin Chassis Intrusion Header Power Unit - 120W/19V Adapter Operation Temperature - 0-35°C Accessory - 2 x SATA Data with Power Cable - 1 x Screws Pack Dimension - Motherboard: 5.8" x 5.4" (Mini-STX) - Barebones: 155 x 155 x 80 mm (1.92L) Security - Kensington Lock - Key Lock OS - Microsoft® Windows® 10 64-bit compliant Certification - CE, FCC Remark - TPM Software

• General
  • Model

    DeskMini 310

• Procesor
  • Producator procesor

    Fara procesor

• Stocare
  • Tip stocare

    Fara

• Video
  • Tip placa video

    Fara placa video

• Memorie
  • Tip memorie

    DDR4

  • Memorie RAM

    Fara Memorie inclusa GB

  • Frecventa

    Suport 2933MHz(Ryzen)/A-series: 2400 MHz MHz

  • Sloturi totale

    2

• Conectivitate
  • USB 3.0

    2

  • USB 2.0

    1

  • RJ-45

    1

  • HDMI

    1

  • Display port

    1

  • VGA

    1

  • Alti conectori

    1x USB 3.1 Type-C

• Alte informatii
  • LAN

    10/100/1000 Mbps

  • Audio

    HD Audio

  • Tip unitate optica

    Fara

  • Culoare

    Negru

  • Dimensiuni

    155 x 155 x 80 mm

  • Greutate

    1 Kg

  • Putere sursa

    120 W

  • Sistem de operare

    Fara sistem
