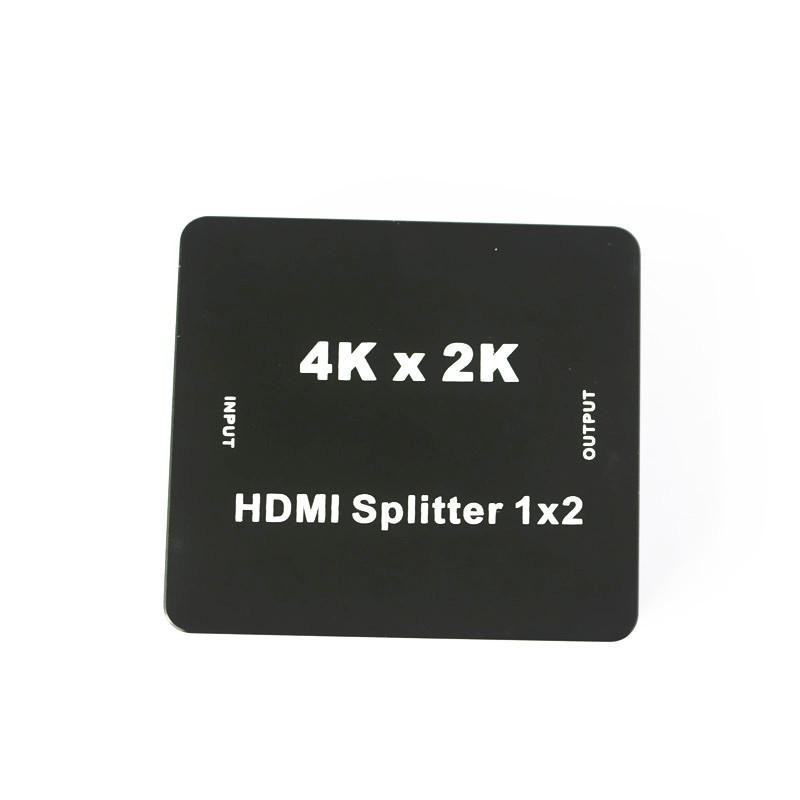

Spliter / Switch / Splitter HDMI 1 IN / 2 OUT 3D 4K x 2K HDMI 1.4v

Predarea se face doar la stadionul olimpia cel de rugby de L - V intre orele 9.30 - 20

FEATURES:

• One HDMI 1.4v input signal split to two HDMI 1.4v sink devices
• Support 3D
• Support 4K*2K
• Support CEC
• Support deep color 30bit, 36bit, 48bit
• Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
• Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD/HD(HBR)
• Support signal retiming
• Support input up to 15metres AWG26 HDMI standard cable length, output up to 20metres AWG26 cable length
• No loss of quality
• Installs in minutes
• Need USB

SPECIFICATIONS: GV-HD0102(1.4v)

• HDMI version: HDMI 1.4v
• HDMI resolutio: 24/30fs/2160P,24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
• Support video color format: 24bit/deep color 30bit,36bit,48bit
• Support audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
• Max bandwidth: 340MHz
• Max baud rate: 10.2Gbps
• Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL)
• Input/Output DDC signal: 5Volts p-p (TTL)
• Input cable distance: 15m AWG26 HDMI standard cable
• Output cable distance: 20m AWG26 HDMI standard cable
• Max working current: 500mA
• Operating Temperature range: (-15 to +55degree)
• Operating Humidity range: 5 to 90%RH (No Condensation)
• Dimension (L x W x H): 60x55x20(mm)
• N. Weight: 65g

Notes:

• Pls use the machine as the instruction listed to keep the long use lifetime of the machine.
• The machine should be placed at the spot far from the Damp, High-Temperature, Dusty, Erosive, and oxidative environment.
• All parts will be free from the strong shake, hit, fall.
• Touching the power adaptor with the wet hands is prohibited.
• Pls hold the power adaptor head and do not pull the power cord when cut off from the socket.
• Pls turn the power off when the machine is not used for long time.
• Pls do not open the cover and do not touch the inside parts.
• Pls use the original factory power adaptor.

Package contents:

• HDMI Splitter 1X2
• English user manual
• USB power cable
