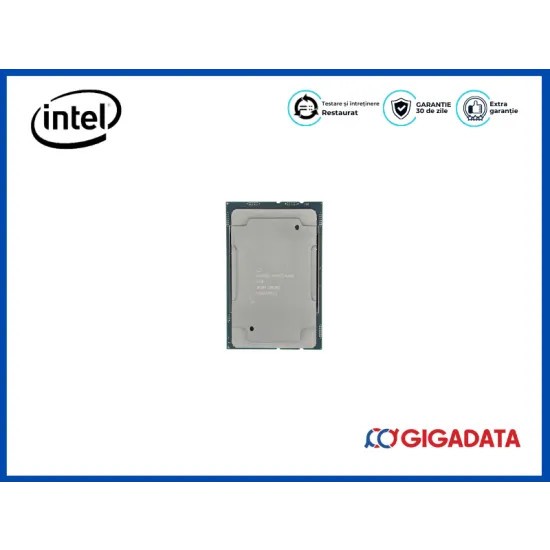

SR3B5 Intel Xeon 20-Core Gold 6138 2.00 GHz, 27,50MB Cache

MANUFACTURER: INTEL
PART NUMBER: SR3B5-RETAIL
CPU SERIES: 1ST GEN INTEL XEON SCALABLE ( GOLD 6100 SERIES )
PROCESSOR CODE NAME: SKYLAKE
SOCKETS SUPPORTED: FCLGA3647 ( SOCKET P )

PERFORMANCE

CPU FREQUENCY: 2.00GHZ
CPU MAX TURBO FREQUENCY: 3.70GHZ
MULTI-CORE: 20-CORE
THREADS: 40
CACHE: 27.5MB L3
NUMBER OF UPI LINKS: 3
LITHOGRAPHY: 14 NM
THERMAL DESIGN POWER: 125W

SUPPLEMENTAL INFORMATION

EMBEDDED OPTIONS AVAILABLE: YES

MEMORY SPECS

MAX MEMORY SIZE ( DEPENDENT ON MEMORY TYPE ): 768GB
MEMORY TYPES: DDR4-2666
MAX MEMORY SPEEDS: 2666 MHZ
MAX NUM. MEMORY CHANNELS: 6
ECC MEMORY SUPPORTED: YES

EXPANSION OPTIONS

SCALABILITY: S4S
PCI EXPRESSION REVISION: 3.0
MAX NUM. OF PCI LANES: 48

ADVANCED TECHNOLOGIES

INTEL OPTANE MEMORY SUPPORTED: NO
INTEL SPEED SHIFT TECHNOLOGY: YES
INTEL TURBO BOOST MAX TECHNOLOGY 3.0: NO
INTEL TURBO BOOST TECHNOLOGY: 2.0
INTEL VPRO TECHNOLOGY: YES
INTEL HYPER THREADING TECHNOLOGY: YES
INTEL VIRTUALIZATION TECHNOLOGY ( VT-X ): YES
INTEL VIRTUALIZATION TECHNOLOGY FOR DIRECT I/O ( VT-D ): YES
INTEL VT-X WITH EXTENDED PAGE TABLES ( EPT ): YES
INTEL TRANSACTIONAL SYNCHRONIZATION EXTENSIONS: YES
INTEL 64: YES
INSTRUCTION SET EXTENSIONS: INTEL AVX-512
NUMBER OF AVX-512 FMA UNITS: 2
ENHANCED INTEL SPEEDSTEP TECHNOLOGY: YES
INTEL VOLUME MANAGEMENT DEVICE ( VMD ): YES

SECURITY & RELIABILITY

INTEL ADVANCED ENCRYPTION STANDARD AES NEW INSTRUCTIONS: YES
INTEL TRUSTED EXECUTION TECHNOLOGY: YES
EXECUTE DISABLE BIT: YES
INTEL RUN SURE TECHNOLOGY: YES
MODE BASED EXECUTE CONTROL ( MBE ): YES
