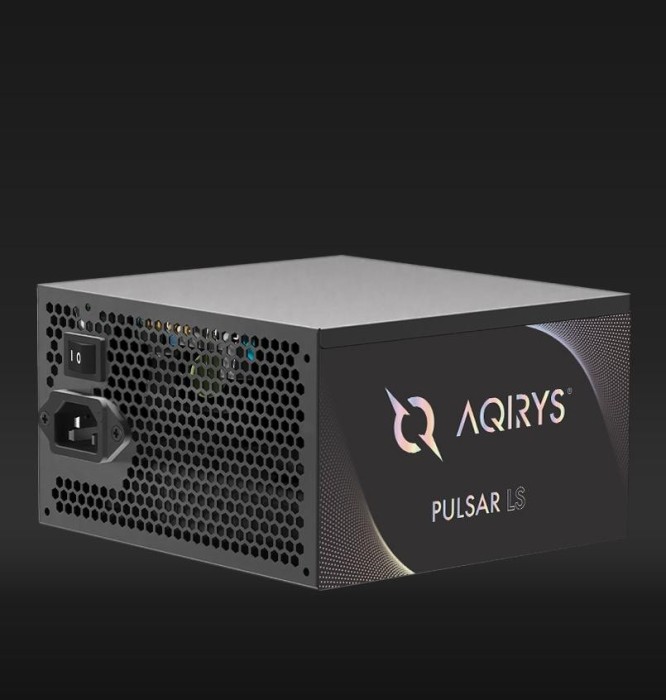

Sursa Aqirys Pulsar LS 550W 80+

Sursa Aqirys Pulsar LS 550W 80+ White certified, culoare neagra

TECHNICAL DATA

• Continuous power: 550W
• Form factor: Intel® ATX12V 2.31
• Efficiency: 80PLUS® White certified
• Intel® C6/C7: Yes
• PFC: Active
• Illumination: No
• Modular cables: No
• Cable type: Flat, black
• Fan size: 120 mm
• Fan speed: Temperature controlled
• Fan technology: Fluid Dynamic Bearing
• AC Input: 200 - 240V, 4A, 50/60Hz
• DC Output +3.3V: 20A
• DC Output +5V: 15A
• DC Output +12V1: 42A
• DC Output -12V: 0.5A
• DC Output +5Vsb: 2.5A
• MB connector: 1x 20+4P
• CPU connector: 1x 8P, 1x 4+4P
• PCIe connector: 2x 6+2P
• SATA connector: 4x
• Molex connector: 2x 4P
• Protections: OVP, OCP, OPP, SCP, UVP
• Environmental compliance: RoHS, WEEE, ErP Lot 6
• Dimensions (LxWxH): 140 x 150 x 87 mm
• Weight: 1418 g
• Color: Black
• EAN: 5949161380574

• AC input frequency: 50 - 60 Hz
• Number of fans: 1 fan(s)
• Fan diameter: 12 cm
• Purpose: PC
• Power supply unit (PSU) form factor: ATX
• CPU power connector (4+4 pin): Yes
• PCI Express power connectors (6+2 pin): 2
• Max output current (+3.3V): 20 A
• Supported motherboard form factors: ATX
• Illumination: No
• Fan location: Top
• Peripheral (Molex) power connectors (4-pin): 2
• Motherboard power connector: 20+4 pin ATX
• ATX power connector (20+4 pin): Yes
• Power Factor Correction (PFC) type: Active
• Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
• Max output current (+5V): 15 A
• Max output current (+5Vsb): 2.5 A
• ATX version: 2.31
• Cabling type: Non-Modular
• Warranty period: 6 year(s)
• 80 PLUS certification: 80 PLUS White
• Bearing technology: FDB
• Max output current (-12V): 0.5 A
• AC input voltage: 200 - 240 V
• Number of SATA power connectors: 4
• Total power: 550 W
• Max output current (+12V1): 42 A
• Sustainability certificates: ErP
• Compliance certificates: RoHS, WEEE
• Cables included: CPU, PCIe, SATA
• Width: 150 mm
• Depth: 140 mm
• Height: 87 mm
• Weight: 1.42 kg
