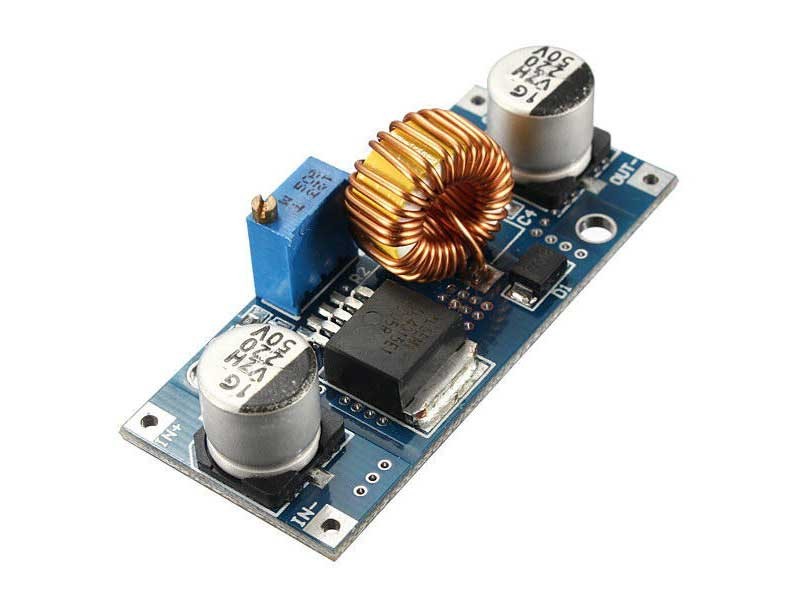

Sursa step down DC-DC 5A XL4015E

Descriere

Vânzatorul este direct răspunzator pentru produsul afișat în această pagină.

Disponibilitate: Indisponibil - Vezi produse similare

Specificatii

1.Input voltage range:4-38VDC
2.Output voltage range:1.25-36VDC adjustable
3.Output current: 0-5A
4.Output power: 75W
5.High efficiency up to 96%
6.Built in thermal shut down function
7.Built in current limit function
8.Built in output short protection function
9.Input reverse polarity protection: None (if required, high current diode in series with the input).
10.L x W x H =61.7*26.2*15mm    11.Weight: 20g   Application
1.Use as a step-down modules with overcurrent protection capabilities  Usage:
(1) adjust the “voltage potentiometer” so that the output voltage reaches the value you want.
(2) use a multimeter to measure the output short-circuit current with 10A stalls, while regulating the “current potentiometer” so that the output current reaches a predetermined overcurrent protection value. (For example, the meter displays the current value of 4A, then you can use the module to a maximum current of 4A)
(3) Connected to the load.
