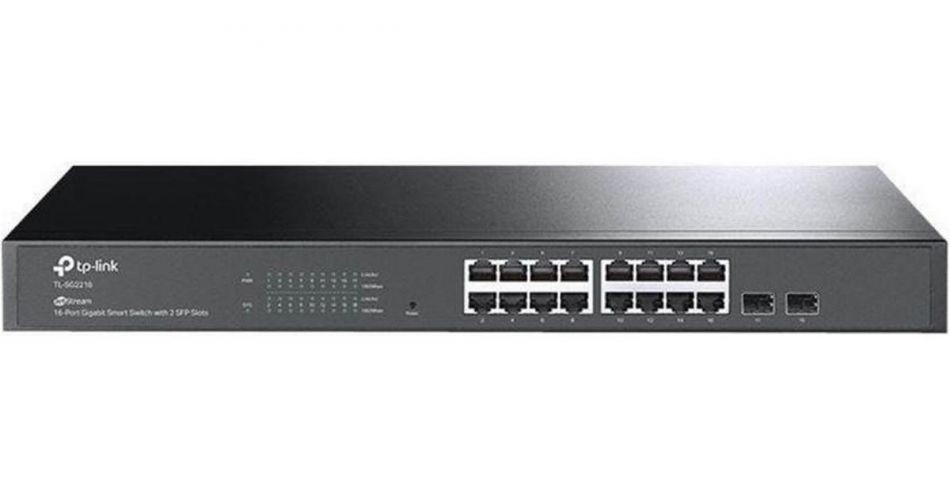

Switch TP-Link Smart JetStream cu 16×Porturi Gigabit si 2×Sloturi SFP TL-SG2218 SafetyGuard Surveillance

Porturi Gigabit: 16 Porturi Gigabit RJ45 si 2 Sloturi Gigabit SFP ofera conexiuni rapide
Integrat n Omada SDN: Zero-Touch Provisioning (ZTP)**, Administrare centralizata prinCloud si Monitorizare inteligenta
Management centralizat: Accesul prin Cloud si aplicatia Omada ofera oadministrare usoara si convenabila
Static Routing: Ajuta la ghidarea traficului intern pentru o utilizare mai eficienta a resurselor retelei
Strategii robuste de securitate: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication si altele
Optimizare pentru aplicatiile de Vocesi Video: L2/L3/L4 QoS siIGMP snooping
Management Standalone: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON siDual Image ofera capacitati puternice de administrare




CARACTERISTICI HARDWARE




Interfata
16 Porturi RJ45 10/100/1000 Mbps
2 Sloturi SFP Gigabit


Numar ventilatoare
Fara


Alimentator
100-240 V AC~50/60 Hz


Dimensiuni (L x l x H)
440 180 44 mm (17.3 7.1 1.7 inch)


Montare
Montare n rack


Consum maxim
12.3 W (220 V/50 Hz)


Max Heat Dissipation
41.97 BTU/hr






PERFORMANTA




Switching Capacity
36 Gbps


Packet Forwarding Rate
26.8 Mpps


Tabela Adrese MAC
8K


Jumbo Frame
9 KB






CARACTERISTICI SOFTWARE




Calitatea Serviciului
8 priority queues
802.1p CoS/DSCP priority
Queue scheduling
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- SP+WRR
Bandwidth Control
- Port/Flow based Rating Limiting
Smoother Performance
Action for Flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark


Caracteristici L2 si L2+
Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports per group
Spanning Tree Protocol
- 802.1d STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect
Loopback Detection
- Port-based
- VLAN based
Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention
Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Tx/Rx/Both


L2 Multicast
Supports 511 (IPv4, IPv6) IGMP groups
IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- IGMP Authentication
IGMP Authentication
MVR
MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
- Limited IP Multicast
Multicast Filtering: 256 profiles and 16 entries per profile


VLAN
VLAN Group
- Max 4K VLAN Groups
802.1q Tagged VLAN
MAC VLAN: 12 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
GVRP
VLAN VPN (QinQ)
- Port-Based QinQ
- Selective QinQ
Voice VLAN


Lista Control Acces
Time-based ACL
MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
IP ACL
- Source IP
- Destination IP
- Fragment
- IP Protocol
- TCP Flag
- TCP/UDP Port
- DSCP/IP TOS
- User Priority
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
- Mirroring
- Redirect
- Rate Limit
- QoS Remark
ACL apply to Port/VLAN


Securitate
IP-MAC-Port Binding
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard
IPv6-MAC-Port Binding
- DHCPv6 Snooping
- ND Detection
- IPv6 Source Guard
DoS Defend
Static/Dynamic Port Security
- Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control
- kbps/ratio/pps control mode
IP/Port/MAC based access control
802.1X
- Port based authentication
- Mac based authentication
- VLAN Assignment
- MAB
- Guest VLAN
- Support Radius authentication and
accountability
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2


IPv6
IPv6 Dual IPv4/IPv6
Multicast Listener Discovery (MLD) Snooping
IPv6 ACL
IPv6 Interface
Static IPv6 Routing
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP


Caracteristici L3
16 IPv4/IPv6 Interfaces
Static Routing
- 48 static routes
Static ARP
316 ARP Entries
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay
DHCP L2 Relay


Management
Web-based GUI
Command Line Interface (CLI) through console port, telnet
SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log


Caracteristici Avansate
Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
ZTP (Zero-Touch Provisioning)*


MIBs
MIB II (RFC1213)
Bridge MIB (RFC1493)
P/Q-Bridge MIB (RFC2674)
Radius Accounting Client MIB (RFC2620)
Radius Authentication Client MIB (RFC2618)
Remote Ping, Traceroute MIB (RFC2925)
Support TP-Link private MIBs
RMON MIB(RFC1757, rmon 1, 2, 3, 9)






MANAGEMENT




Omada App
Da (Prin OC300, OC200, Omada Cloud-Based Controller sau Omada Software Controller)


Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller


Cloud Access
Da (Prin OC300, OC200, Omada Cloud-Based Controller sau Omada Software Controller)


Zero-Touch Provisioning
Da. Necesita utilizarea Omada Cloud-Based Controller


Management Features
Web-based GUI
Command Line Interface (CLI) through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1, 2, 3, 9 groups)
SDM Template
DHCP/BOOTP Client
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
SNTP
System Log






ALTELE




Certificari
CE, FCC, RoHS


Continut Pachet
Switch TL-SG2218
Cablu de alimentare
Ghid de instalare rapida
Kit de montare n rack
Picioare din cauciuc


Cerinte de sistem
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.


Mediu
Temperatura de operare: 040 (32104 );
Temperatura de depozitare: -4070 (-40158 )
Umiditate mediu operare: 1090% RH fara condens
Umiditate mediu depozitare: 590% RH fara condens
