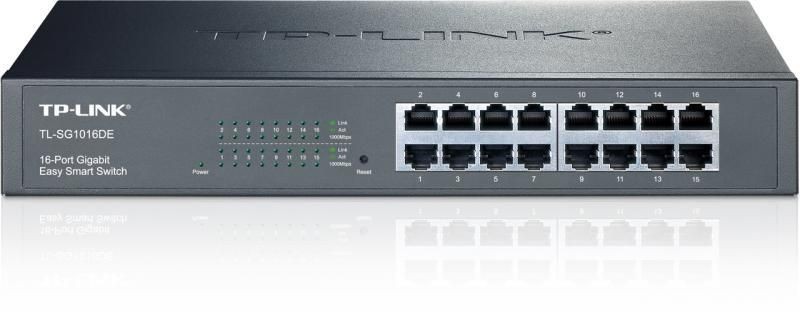

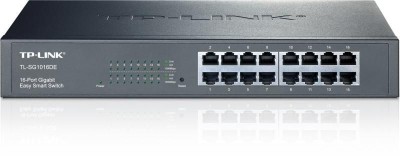

Switch TP-Link TL-SG1016DE, 16 porturi Gigabit, , 1U 19 Rackmount TL-SG1016DE SafetyGuard Surveillance

1610/100/1000Mbps RJ45 ports
Provides network monitoring, traffic prioritization and VLAN features
Green technology reduces power consumption
Simple network set-up on top of plug-and-play connectivity
Web-based user interface and management utility simplify configuration





CARACTERISTICI HARDWARE




Standarde si Protocoale
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p


Interfata
16 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX


Retea media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)


Numar ventilatoare
Fanless


Physical Security Lock
No


Alimentator
100-240VAC, 50/60Hz


Dimensiuni (L x l x H)
11.6*7.1*1.7 in. (294*180*44 mm)


Montare
Rack Mountable


Consum maxim
10.22W (220V/50Hz)


Max Heat Dissipation
34.52 BTU/h






PERFORMANTA




Switching Capacity
32Gbps


Packet Forwarding Rate
23.8Mpps


Tabela Adrese MAC
8K


Packet Buffer Memory
4.1Mbit


Jumbo Frame
10KB






CARACTERISTICI SOFTWARE




Calitatea Serviciului
Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control


Caracteristici L2
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention


VLAN
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN


Metoda de Transmisie
Store-And-Forward






ALTELE




Certificari
FCC, CE, RoHS


Continut Pachet
TL-SG1016DE
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet


Cerinte de sistem
Microsoft Windows for running Utility


Mediu
Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Sistemele de securitate si supraveghere video nu mai sunt de mult timp doar un moft ci au devenit o necesitate in zilele noastre. Daca majoritatea firmelor au deja instalat un astfel de sistem de alarma sau/si de supraveghere cu camere video aceste sunt tot mai cautate si pentru locuintele personale. In colectia de produse "SafetyGuard Surveillance" se regasesc o gama variata de articole din acest domeniu al securitatii echipate cu cele mai noi tehnologii din industrie atat din gama premium cat si mai accesibile in ceea ce priveste pretul.

Aceste solutii de securitate si supraveghere au evoluat foarte mult in ultima perioada astfel ca puteti gasi variante foarte performante la costuri mai reduse de la sisteme wireless controlabile prin internet pana la calitate video ultra HD 4K. Unul dintre cele mai mari beneficii ale unei case inteligente este acela de a sti ce se intampla atunci cand nu esti de fapt acolo. Indiferent daca va verificati copiii animalele de companie sau o colectie de bijuterii un sistem de securitate la domiciliu sau la firma este un instrument excelent pentru a verifica live prin video aceste lucruri.
