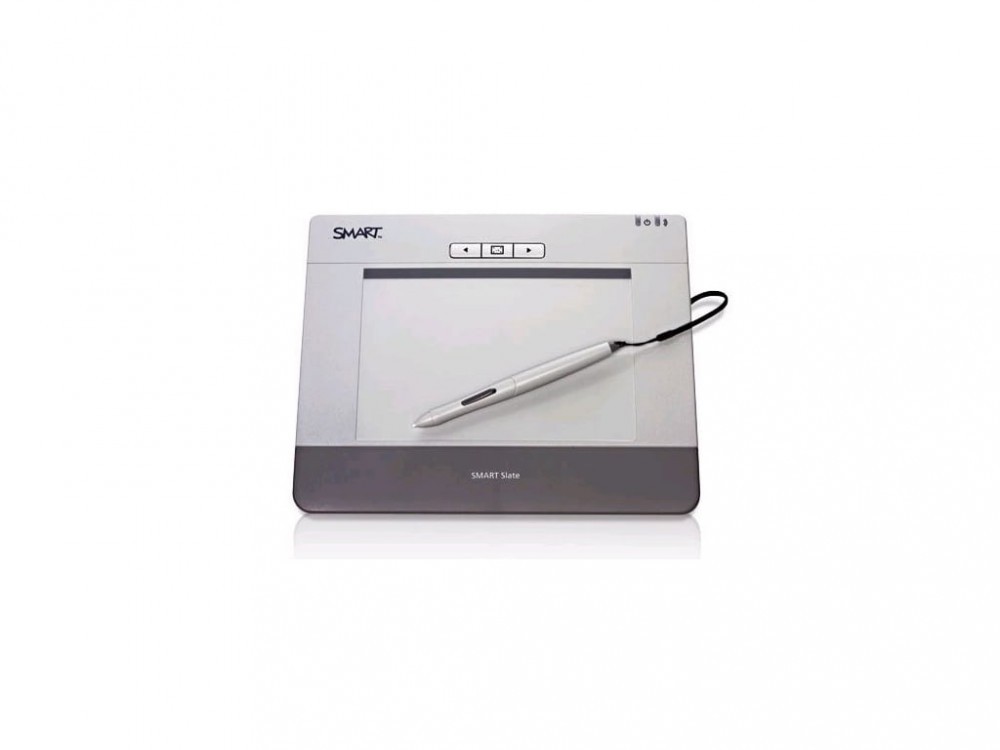

Tableta grafica bluetooth SMART Slate WS200

Dimensiuni: 26.4 cm × 21.6 cm × 2.6 cm
Zona activa:  17.3 cm × 10.8 cm
Greutate: 0.6 kg
Dimensiuni colet: 27.2 cm × 33.1 cm × 8.2 cm
Greutate colet: 1.1 kg

Software Includes
SMART Product Drivers. Updates are available from smarttech.com/downloads.
Operating system requirements
Windows® operating systems and Mac OS X operating system software. See the documentation on the SMART Support web site’s SMART Notebook collaborative learning software page for a complete list of system requirements.
NOTE
SMART SlateTM wireless slates manufactured before December 2009 are compatible with Windows operating systems only.
Communication interface
Bluetooth® wireless technology 2.1 with EDR (Enhanced Data Rate) 2 | SPECIFICATIONS – SMART SLATE WIRELESS SLATE – MODEL WS200
Electro-magnetic resonance technology
Enables you to rest your hand and write naturally on the workspace without interfering with the digital ink.
Maximum report rate
133 points per second
Coordinate resolution +/- 0.5 mm with +/- 2 mm in the corners of the workspace
Bluetooth wireless adapter
Class 2 adapter connects wirelessly with a range of 32′ (10 m).
Underlay and icon strip
You can select from many common tools. The default tools are the pointer, eraser, four colors of digital ink, right-click, keyboard, screen capture and control panel. You can customize the icon strip to include the tools you use the most.
Anti-slip feet
Four anti-slip feet keep the wireless slate stable on flat surfaces.
Buttons
Three customizable buttons. The default button settings are Previous Page, start SMART Notebook and Next Page.
Pen
Battery-free pen. The wireless slate detects the pen from a distance of 4.5 mm. Pen accuracy is 0.5 mm.
Power requirements
5V DC, USB. Draws 500 mA while charging.
Cables
USB charging cable
Battery
Rechargeable lithium ion battery provides at least 24 hours of continuous use per charge. 6.5 hours for a full recharge. 3.7V, 1800 mA
Environmental compliance
RoHS (Europe), EU WEEE
Regulatory certifications
FCC, CE, C-Tick, CB, IC
Range
32′ (10 m)
Data transfer rate
133 points per second
Storage and operating specifications
Storage -4°F–140°F (-20°C–60°C) with 30%–90% humidity, non-condensing
Operating 41°F–104°F (5°C–40°C) with 30%–80% humidity, non-condensing
