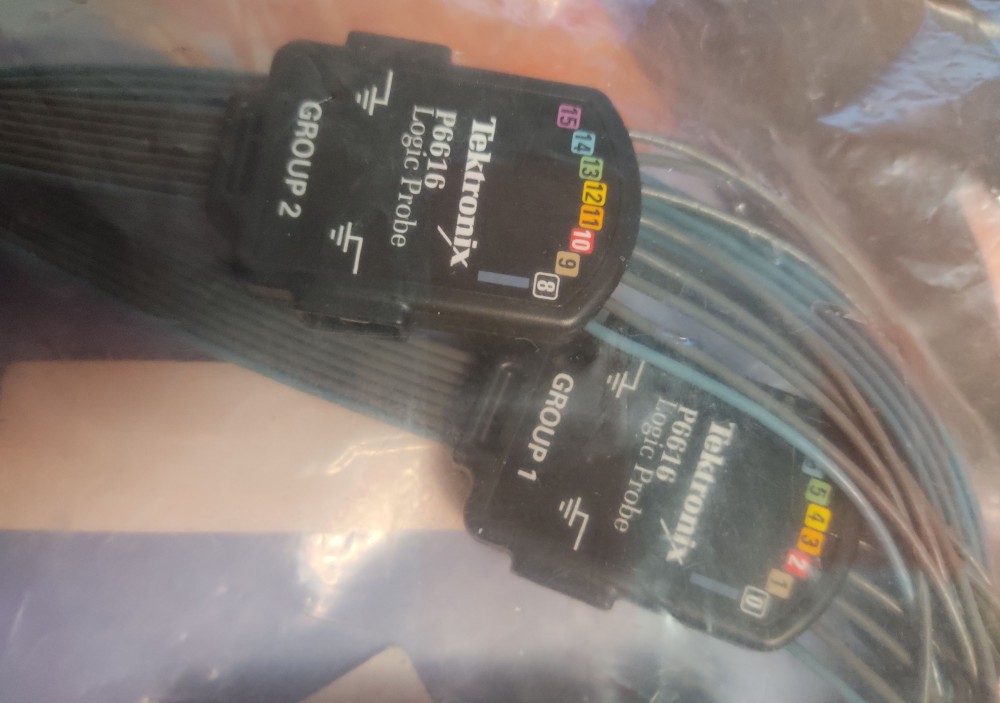

Tektronix p6616 logic probe

Sonda este noua, sigilata , a fost cumparata de un amic , care a decedat de cancer ...o desigilez pentru mai multe poze DOAR daca este cineva interesat cu adevarat de ea !...multumesc de intelegere1 Electrical and mechanical specifications Characteristic Description Input channels 16 digital Input resistance 100 kΩ ±1.0% Input capacitance 3.0 pF Input signal swing Minimum 400 mV p-p Maximum 30 V p-p, ≤200 MHz (centered around the DC threshold voltage) at the probe tip 10 V p-p, ≥200 MHz (centered around the DC threshold voltage) at the probe tip Maximum nondest– ructive input signal 30 V p-p, 42 V peak, ±50 VDC Threshold voltage ± 40 V Minimum detectable pulse width 1 ns Maximum input toggle rate 500 MHz Digital channel-todigital channel skew 200 ps Probe length 1.0 m (3.28 ft)
