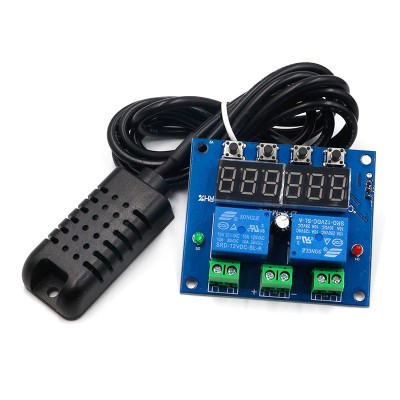

Termostat digital ZFX-M452 (12V) cu AM2301 / Controler temperatura (t.4755W)

Power supply :DC 12V;

·Temperature measurement range:-40~120°;

·Humidity range:0~100%RH;

·Control precision:0.1°  0.1%RH;

·Test probe:Integrated sensor;

·Output:10A delay;

·Size:65*55*28mm.

Temperature control:

1. Set the temperature + :Normal display mode, long press the + key for 3 seconds, start temperature numerical flashing, press the + / - key setting values, wrong operation after 5 seconds, automatically return to detect temperature display;

2. Set the temperature - :Normal display mode, long press - button for 3 seconds, stop numerical flashing temperature, press the + / - key set value;

3. Restore the factory Settings :At the same time long press temperature, and humidity + key for 3 seconds, digital display, 888, 888.

Set the start temperature:Long press the + key, start the flashing temperature, set start temperature by + / - key;

Set Stop temperature: long press - button, stop flashing temperature, set stop temperature by + / - key.

Humidity Settings:

Set to start humidity: long press the + key, start the humidity value flashing, set by + / - key launch humidity value;

Set stop humidity: long press - to stop humidity value, set by + / - key to stop the humidity value.

Fault code: display LLL mean the sensor fault;

display HHH mean Test temperature exceed the range of measurement.

Package Include:

1 x XH-M452 Thermostat Temperature Humidity Control.
