Tester componente ESR LCR grafic Diode Triode Tranzistori Condensatori

Tester Diode Triode Tranzistori Condensatori ESR Meter MOSFET NPN/PNP nou , sigilat !

Specificatii tehnice tester ESR LCR grafic :

It can test NPN and PNP transistor, capacitor, resistor, ESR, diode, triode, N-channel and P-channel MOSFET quickly.

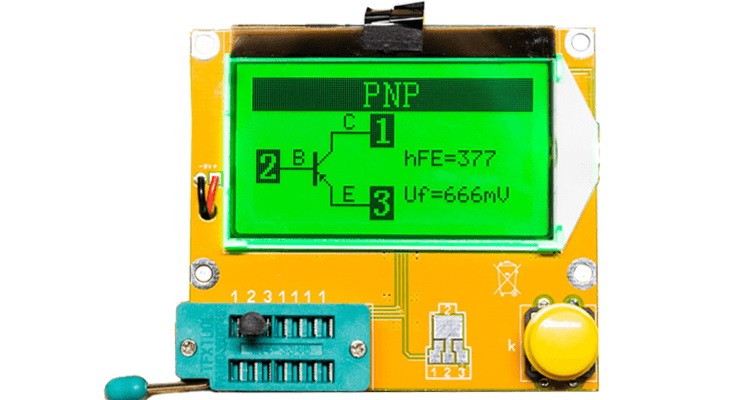

Automatically test the pin of a component, and display on the back-light LCD screen.
Detect transistor and MOSFET protection diode amplification coefficient, and the base to determine the emitter transistor forward biased voltage.
Measure the gate and gate capacitance of the MOSFET threshold voltage.
One-button operation, automatically detect and shutdown.
When opened, it will show the voltage of the battery.
You can test two resistors and the ESR of two capacitance at the same time.
It can display the values to two digits after decimal point.
It can test the capacitance from 30PF to 20000UF, resistor from 0.5Ω to 50MΩ.

Specifications:
Color: Dark Green
Power Mode: 9V Battery (Not Included)
Display: 6.5 * 1.5cm LCD Display
Working Current: 40mA
Standby Current: 25mA
Capacitance: 30PF to 20000UF
Resistance: 0.5Ω to 50MΩ
Inductance: 0.01MH-10H
Item Size: 8.5 * 5.3 * 2cm / 3.35 * 2.09 * 0.79in
Item Weight: 51g / 1.8oz
Package Size: 15 * 9 * 2cm / 5.91 * 3.54 * 0.79in
Package Weight: 52.5g / 1.86oz

Achizitionarea separata a carcasei la acest produs este 38 lei !

Livrarea se poate face doar in 2 feluri:

1) personal la Metrou Nicolae Grigorescu in Bucuresti
2) cu livrare prin posta romana cu plata in avans in cont bancar a contravalorii produs + 15lei ( taxe postale de expediere posta romana )….dupa confirmarea platii va voi trimite nr AWB de urmarire colet pe posta romana !

Multumesc de intelegere !
