Tester de capactitate baterie litiu 0-150V cu voltmetru si ampermetru, DTL150

Features:

This product is a direct current CNC electronic load, with a maximum power of 150W and a maximum load current of 20A.
2.4inch TFT color screen, with cumulative running time, core temperature with load, sensor monitoring temperature, voltage, current, power, electricity, capacity, internal resistance, load, operating mode, OVP, OCP, OPP, stop voltage, time limit discharge display function.

It has four working modes design, constant current mode, constant voltage mode, constant power mode and constant resistance mode.

Voltage, current and power overrun protections can be set; stop discharge voltage and discharge time can be set.

Power supplying temperature can be monitored by an external NTC sensor.

Multifunctional design, the system menu interface supports switching between English and Chinese, zeroing of accumulated data, zeroing of voltage and current at no load, voltage calibration and current calibration, 9 levels of screen brightness adjustment, standby time setting, and restoration of factory settings.

The product works with a 12.0V1A independent power supplys and is equipped with an integrated silent (20±3dBA) alloy heat sink, with an intelligent temperature control system controlling the work of the heat sink fan.

Compared to traditional analogue electronic loads, it adopts protects first and then work mode to control the discharge, which can effectively protects the discharge power supplys from damage caused by over-limit and over-discharge.

It adopts four-wire wiring method, the voltage measurement is not affected by the voltage drop of the wire, making the voltage measurement more accurate, the four-wire system is downward compatible with the two-wire connection method, when wiring, you only need to make the A+ and V+, V- and A- respectively short connection.

Specifications:

Name: Electronic Load

Material: printed circuit board

Load type: CNC electronic load

Working voltage: 12VDC with 12 V, 1A power adapter

Load voltage: 0-150VDC

Load current: 0-20A

Load power: 0-150W (max. 60W above 120V)

Wiring method: A+ V+ V- A- four-wire system, backward compatible with two-wire system

Maximum power measurement: 999.999Wh

Maximum capacity measurement: 999.999Ah

Cumulative timing range: ddd:hh:mm:ss (days:hours:minutes:seconds)

Operating modes: four modes CC-constant current mode C V-constant voltage mode CP-constant power mode CR-constant resistance mode

Overvoltage protection: supports up to 150V overvoltage protection

Overcurrent protection: supports up to 20A overcurrent protection

Over-power protection: supports up to 150W over-power protection

Limited voltage discharge: also called low voltage protection, support, default unlimited voltage discharge, set according to your needs

Time limit discharge: support up to 99 hours: 59 minutes time limit discharge

Heat sink: Alloy integrated silent (20±3dBA) heat sink Internal temperature 240°C automatic operation

External temperature measurement: connect NTC 3950 10K 1% temperature sensor to measure and display temperature from 0-100°C

Chinese and English interface switching: supported

Zeroing of total data: supported

Voltage and current nulling: supported

Voltage open calibration: supported

Current open calibration: Support

Screen brightness adjustment: Support

Screen hibernation standby setting: Support

PC software online: Not supported

Restore factory settings: Support

Item size: 165 * 95 * 80mm

Package size: 195 * 105 * 135mm

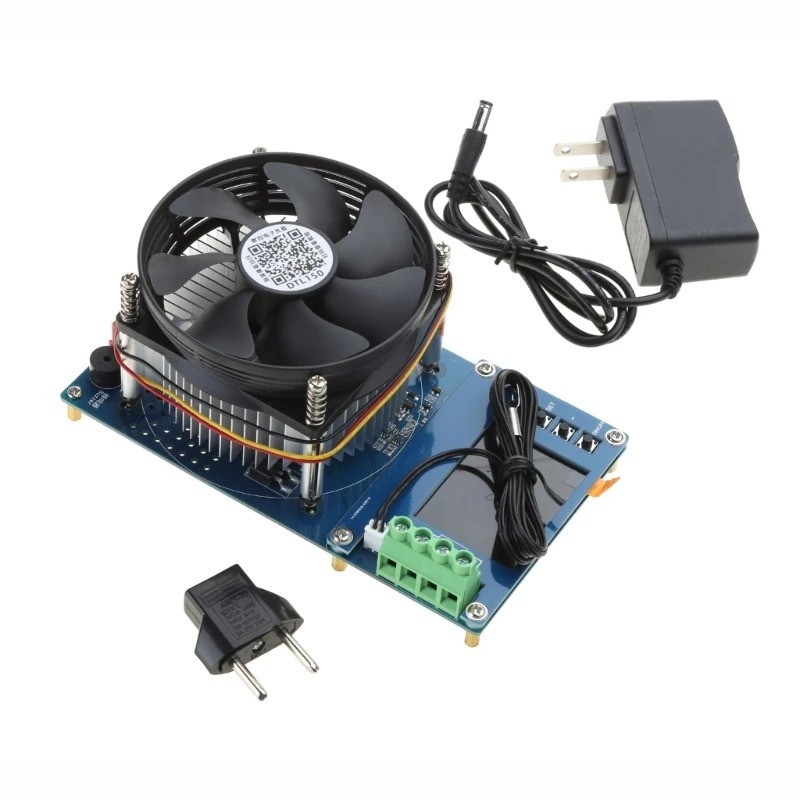

Packing List:
1 * Electronic Load
1 * Adapter
2 * Clip Wire
