TESTER TELEFONIE-Ziad LineMASTER Portable Line Monitoring Device

Ziad LineMASTER Portable Line Monitoring Device

Linemaster este un dispozitiv compact portabil, linie de monitorizare, dispozitiv folosit pentru a identifica DTMF (touch-ton) şi puls (rotativ), a cifrelor formate. În plus, oferă o Linemaster îmbunătăţită Digital dB Meter, un 1004Hz Tone Generator, de înaltă calitate audio Monitor şi are incorporat o sarcina de 600 Ohm.

http://www.aaatesters.com/Ziad-Ziad_LineMASTER_Portable_Line_Monitoring_Device.html

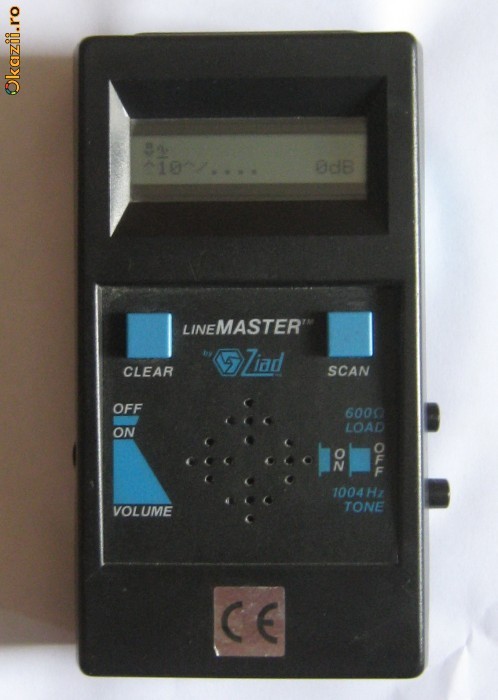

The Linemaster is a compact, portable line-monitoring device used to identify DTMF (touch-tone) and pulse(rotary) dialed digits. In addition, the Linemaster provides an enhanced Digital dB Meter, a 1004Hz Tone Generator, a high quality Audio Monitor and a built-in 600 Ohm load.

The Linemaster, possesses Ziad's Exclusive Dialed Digit Display/Analyzing technology, displayed on a large, easy-to-read 32 character (2 rows by 16 characters) Liquid Crystal Display.

The built-in Digital dB Meter has an effective range of -40 dBm to +6 dBm, in 0.5 dBm steps.

The switchable Tone Generator generates a 1004.1 Hz tone at 0.0 dBm when transmitted across the 600 Ohm load.

The Enhanced Audio Monitor provides clean, clear audio reproduction with an adjustable volume control.

The switchable 600 Ohm load provides the means of making highly accurate dBm readings with the Digital dB Meter, and also terminating a line or trunk providing detection of live pairs.

Nu se livreaza cu baterii sau alimentator. Functioneaza cu 4 baterii AA.

Va rog sa priviti si celelalte aparate pe care le am la licitatie.

Pentru usurinta urmati link-ul: http://www.okazii.ro/catalog?user_list=honki55&sort=timp_ramas_desc

Va multumesc pentru atentia acordata.
