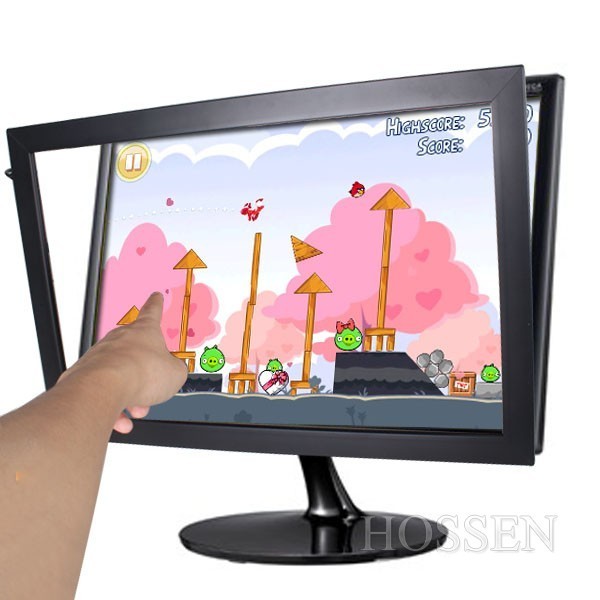

Touchscreen Touch Panel Kit 22" 16:10 16:9 Ecran tactil Folie Tactila USB Touch screen Transforma orice monitor in touchscreen (gen Elotouch)
-
Produs:Nou, Fără garanție
-
Numar articol:115122805
-
Disponibilitate:Indisponibil
-
Preț:550,00 Lei
-
Anuntul a expirat la:01.11.2012, 12:31
-
Ai o nelamurire?
-
Vandut de:
-
Vinde si tu:Pune in vanzare un produs ca acesta
-
Optiuni:
Descriere
Vânzatorul este direct răspunzator pentru produsul afișat în această pagină.
Disponibilitate: Indisponibil - Vezi produse similare
Specificatii
Atentie! Acesta este doar ecranul tactil care se poate aplica pe orice monitor de 22'' wide (16:9 sau 16:10), si, prin usb, il face touchscreen, dar nu contine si monitorul in sine !
Functioneaza atat pe PC, cat si pe MAC!
Aveti mai jos datele producatorului:
Am doar 2 bucati. Se pot proba in zona Cotroceni - Bucuresti.
Infrared Touch Screen Panel kit for windows 7 , Support multi touch & Support Microsoft Touch Pack for Windows 7.
Easy to install.
With USB connector.
Transform your boring PC monitor into an interactive display screen with this high quality and accurate 22” screen touch panel. The panel is the most popular version and can be used by a large variety of contact types, i.e. gloves, stylus, greasy fingers, etc.
This is not a LCD monitor; it's just an overlay panel that used to convert a non-touch screen LCD monitor to become touchscreen.
This panel kit touchscreen instantly turns LCD/PLASMA/front/rear projection monitor into interactive display. Unlike most other technologies, the Infrared based design offers superb image clarity. The original image quality is preserved because there is no other layer in front of the display. After a simple installation, the screen can be operated with finger, gloved hand or pen.
This item is IR Infrared touch panel, which is the developing trend currently. IR Infrared touch panel has much better functions than the electric resistance touch panel.
|
Function |
Infrared touch screen |
Resistance touch screen |
|
Light-admitting quality |
100% |
85% |
|
Resolution |
4096*4096 |
4096*4096 |
|
Anti-detonating quality |
Strong |
Weak |
|
Stability |
Better |
Good |
|
Multi touch Support |
Yes |
No |
In addition, compared to other infrared touch panels, this one has quicker response and better precision. And since the frame is designed by aluminum alloy, it can work better to protect the glass and circuit board.
Specifications:
1. Size: 22 inch
2. outside Dimensions
Height: 353mm
Width: 527mm
Thickness: 8.5mm
3. Touch Active Area
Height:302mm
Width: 476mm
Diagonal: 558.8mm
4. Proportion: 16:10
|
General |
|
|
Touch Technology |
Infrared Touch |
|
Performance |
|
|
Resolution(Interpolation) |
4096*4096 |
|
Resolution(Interpolation) |
16:9,16:10,4:3 |
|
Linearity Error |
1.5mm |
|
Response Speed |
|
|
Mechanical |
|
|
Input Method |
Finger, gloved hand, or opaque object |
|
Touch Times |
Unlimited |
|
Touch Activation Force |
No minimum touch activation force is required with IR touch technology |
|
Minimum Touch Object |
5mm |
|
Environmental |
|
|
Temperature |
Operating: -20°C ~ 70°C |
|
Storage: -40°C ~ 85°C |
|
|
Relative Humidity |
Operating: 90%(no condensing at max 40°C) |
|
Storage: 90%(no condensing at max 40°C) |
|
|
Altitude |
Up to 3,000m |
|
Life Time |
At least 7-year |
|
Electrical |
|
|
Operation Voltage |
Typical +DC 5V, +4.75V to +5.25V |
|
Power Supply |
USB, power ripple max.200mV rms |
|
Power |
|
|
Agency Approvals |
CE, FCC Class B |
Features:
1. Infrared touch
2. Finger touch.
3. Easy to install or remove, no need to open up the monitor or computer case.
4. Eliminates the electrostatic and reduces the radiation generated from the monitor.
5. Activated on touch by almost anything - finger, fingernail, gloved hand or stylus.
6. Remain left-right mouse-button functions on screen.
The
22” touch screen panel is brand new and ready to install. It comes boxed and complete with
the following:
- Infrared Multi Touch Screen with USB cable
- rubberized fabric
- Software
