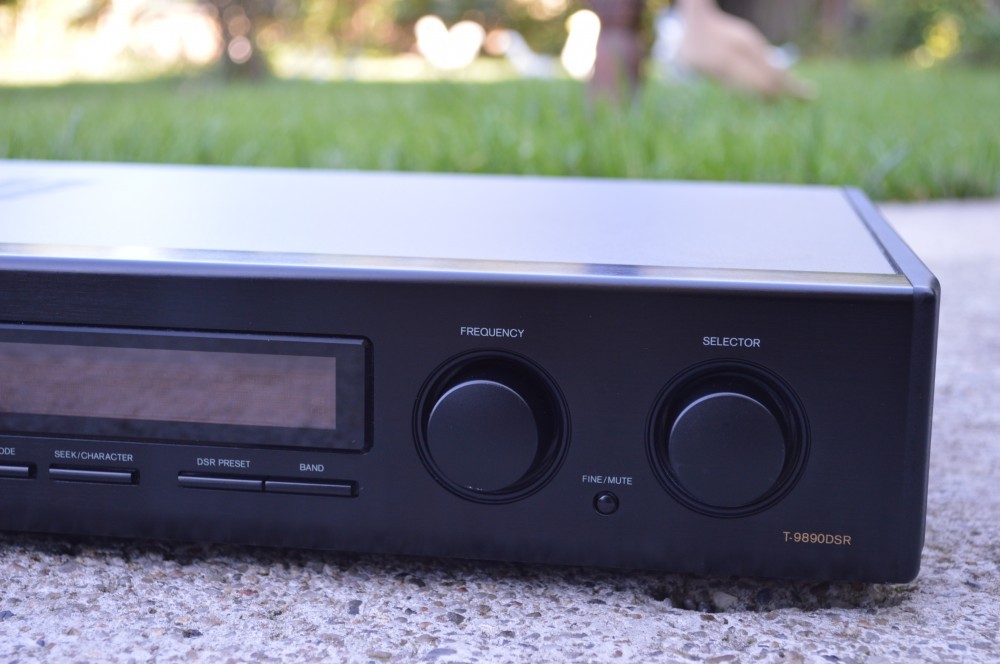

Tuner Onkyo Integra T 9890 DSR

Radio Onkyo Integra T 9890 DSR: made in JApan, afisaj mare centru, jog system, senzor telecomanda, RDS, EON, PTY, memorii, negru, 2 antene, 1 exterioar, 1 pentru cablu, arata si functioneaza foarte bine, nezgariat, mufe aurite, optical si coaxial output.

Manufacturer: Onkyo Model: T-9890 DSR Years of construction: 1995 Manufactured in: Japan Color: Black Remote Control: yes Power consumption: Dimensions: 455 x 90 x 374 mm Weight: 6.4 kg Factory price approx .: 1200-1600 DM

• 1x Optical digital, 1x Electric Digital (DSR), no longer usable, see Introductory Note and Link.
• 1x analogue

• 2x FM (switchable via relay), 75 ohms
• 1x SAT (DSR), no longer usable due to shutdown

• FM only and DSR (off)
  • FM: 87.6-105.8 MHz, at 0.25 MHz steps
• no MW, SW or LW

Special Features

• Level display for reception quality, a bar and in dB
• adjustable selectivity (wide / narrow / super-narrow)
• Hi-Blend for noise suppression of FM noise
• Side panels made of black plastic make it slightly wider than "normal" (detachable)

Remarks

• The T-9890 DSR was the last really big high-end tuner from Onkyo .
• It was built in Japan in 1995, can the FM broadcast with the legends T-9990 and T-4970 are compared. In Stereoplay he was tested against its predecessor T-9990, and no difference was found.
• It separates razor sharp, also has RDS and all the very useful for demanding FM listeners.
• 2 relays connected antenna inputs (but no LW, KW or even MW).
• Visually, it matches the 88s Onkyo series. Big remote control. Only in black.
• It should also be noted that he also has a DSR tuner (see. Link), but this has indeed finally disposed 1999th
• Price: new so today at 100 Euro on ebay.

• Other models of the same series: -

• Large, easy to read fluorescent display
• Two hand wheels for easy tuning and program selection
• 30 station presets for FM
• DSR-station memory (A to E)
• 2 antenna inputs with selector switch
• Preset Station Naming (DSR: 10 characters, FM: 8)
• FM and DSR-tuning in increments of 25 or 50 kHz (1 MHz / 100 kHz)
• Speech Attenuator - voice attenuation (Hi-Blend switch)
• Search Mode (Automatic FM station search, PTY, AF, TP and DSR-PTY)
• Isohex power supply
• Signal strength indicator (10 segments)
• Battery-Free Memory Power
• remote control
• 5-stage APR reception optimization
• Group division: 3
• Handradabstimmung
• Frequency direct input
• Auto / Man. search
• Station memory-scan function
• 25 kHz tuning to FM
• 10 Signal strength level segment
• Reception mode display
• Simulcast selection (FM): 1.3 dB
• Image Rejection: 100 dB
• Intermediate frequency attenuation: 100 dB
• Signal to noise ratio: 85 dB (FM mono), 77 dB (FM stereo)
• Distortion: 0.03% (FM mono), 0.07% (FM stereo)
• Frequency response: 30 - 15000 Hz (+0.5, -1.0 dB); DSR: 15 - 15000 Hz (+0.5 dB)
• Dimensions W x H x D: 455 x 90 x 374 mm
• Weight: 6.4 kg
