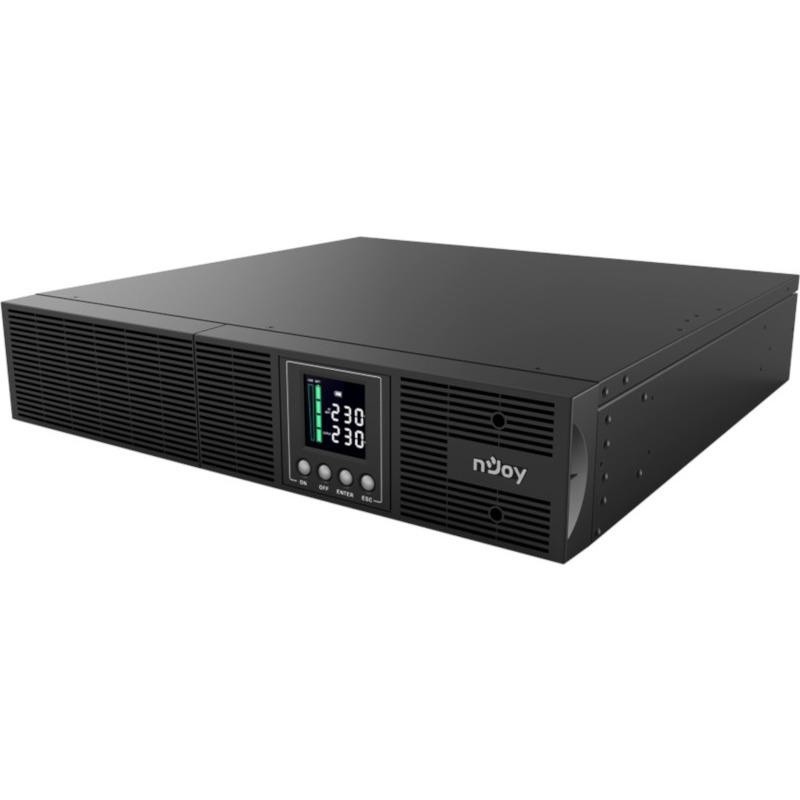

UPS NJOY Aster 2K

UPS nJoy Aster 2K Power 2000 VA/1800 W Type On-line Nominal Input Voltage 208/220/230/240 VAC Accepted Input Voltage Range 80-300 VAC Nominal Output Voltage 208/220/230/240 VAC - user selectable Frequency 50 Hz/60 Hz Outlets Input 1 x IEC-320 C14 Output 8 x IEC-320 C13 Transfer Time to Battery / AC Zero Typical Backup Time 25% Load - 24min 4sec 50% Load - 12min 4sec 75% Load - 6min 10sec 100% Load - 4min 30sec Communication Ports HID USB / RS232 / EPO / SNMP Software http://www.powermonitor. software/ Battery Type Sealed and leak proof maintenance Efficiency High efficiency up to 97% Features Internal bypass EPO function Multifunctional color LCD Output Power Factor 0.9 Generator compatible ECO Mode for energy saving Software management Rack/Tower design Easy Battery Replacement External battery pack (optional) LCD Display UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions Environment 0- 40°C (non-condensing) Physical Dimensions 438 x 610 x 88 mm https://www.njoy.ro/ups-commercial/aster-2000#specificatii

• Operating relative humidity (H-H): 0 - 90%
• Operating temperature (T-T): 0 - 40 C
• LED indicators: Yes
• Batteries included: Yes
• Rack mount kit: Yes
• Rack capacity: 2U
• Display type: LCD
• Built-in fan: Yes
• Input operation voltage (max): 300 V
• Output operation voltage (max): 240 V
• Number of input phases: 1
• Number of output phases: 1
• UPS topology: Double-conversion (Online)
• Output operation voltage (min): 208 V
• Output power: 1800 W
• Noise level: 50 dB
• Output power capacity: 2 kVA
• Serial ports quantity: 1
• AC outlet types: C13 coupler
• Power plug: C14 coupler
• Serial interface: Yes
• Serial interface type: RS-232
• Emergency Power Off (EPO): Yes
• Output power factor: 0.9
• ECO mode: Yes
• Power source type: AC
• Cold start: Yes
• Output voltage Total Harmonic Distortion (THD): 5%
• Auto-restart: Yes
• Storage temperature (T-T): -15 - 45 C
• AC outlets quantity: 8 AC outlet(s)
• Input frequency: 40 - 70 Hz
• Crest factor: 3:1
• Typical backup time at full load: 4.5 min
• Typical backup time at half load: 12.06 min
• Waveform: Pure sine
• Input operation voltage (min): 80 V
• Output voltage regulation: 1%
• Efficiency (ECO mode): 97%
• Power protection features: Battery discharge, Overload
• Master (outer) case gross weight: 24.5 kg
• Compliance certificates: CE, RoHS
• Master (outer) case width: 550 mm
• Master (outer) case length: 746 mm
• Master (outer) case height: 231 mm
• Products per master (outer) case: 1 pc(s)
• Cables included: Input power cable, USB cable
• Width: 610 mm
• Depth: 438 mm
• Height: 8.8 mm
• Weight: 23.1 kg
• Cooling type: Active
• Form Factor: Rackmount/Tower
