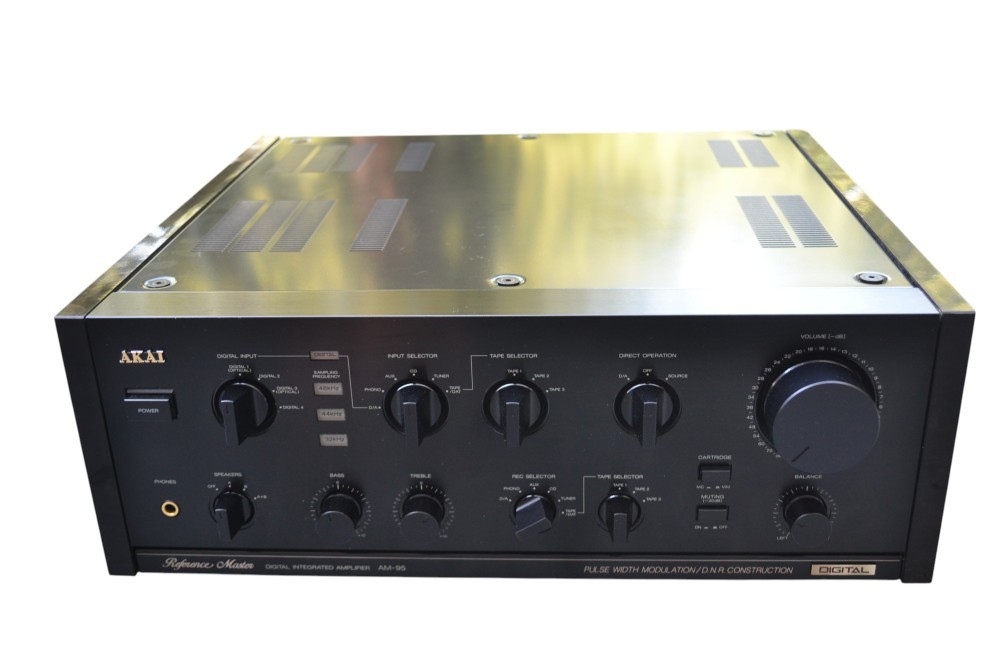

Amplificator Akai AM 95 Reference Master

Amplificator Akai AM 95 Reference Master: cap de serie, 8 intrari, 4 iesiri, made in Japan, optical si coaxial input, laterale lemn, reglaje bass, inalte, balance, phono selector, muting, poze reale.

General

• Manufacturer: Akai
• Model: AM-95
• Type: Integrated amplifier
• Years of manufacture: 1990 - 1992
• Made in: Japan
• Colors: Black
• Remote control: no
• Power consumption:
• Dimensions: 461 x 177 x 452 mm (WxHxD).
• Weight: 22 kg
• Original price approx.: 1'999 DM (UVP)

Connections

• Number of inputs: 9

PHONO, CD/DVD , TUNER, AUX , TAPE/DAT-1 , TAPE/MD-2, TAPE-3, Processor, 4 x Digital Input sensitivity:

• • Phono (MM) 2.5mV/47kOhm

High level: 150mV/47kOhm

• Number of outputs: 6
  • TAPE1, TAPE2, TAPE3, Equalizer, 2 x Digital
  • Tape Rec Out 150mV/1kOhm

Technical Data

• DC amplifier with active negative feedback
• 2 x 132 Watt into 8 Ohm

2 x 180 watts into 4 ohms

• 2 x 320 Watt into 2 Ohm
• toroidal transformer
• 8 x toroidal transformer (60kHz power bandwidth)
• Well cooled
• Separate preamplifier modules
• 4 digital inputs (2 x optical, 2 x coaxial)
• 2 digital outputs (1 x optical, 1 x coaxial)

7 analogue inputs (PHONO, CD/DVD , TUNER, AUX , TAPE/DAT-1 , TAPE/MD-2, TAPE-3, Processor) 4 analog outputs (TAPE1, TAPE2, TAPE3, Equalizer)

• 3 tape connectors
• Gold-plated connection sockets
• Separate record selector
• MM/MC switching capability
• Direct Operation
• D/A converter (recording from analog sources e.g. phono to digital outputs e.g. computer)
• 1-bit MASH digital section
• Automatic detection of sampling frequency (48, 44, 32 kHz)
• Digital noise reduction
• Phono input MC and MM
• Muting button
• Separate Record Selector
• Source direct circuit
• Headphone jack
• Power bandwidth 10 Hz - 80 kHz
• Distortion factor 0.001
• Signal to noise ratio 102 dB
• Inherent noise 0.1 mV
• Speaker A or B / A + B ; 4-16 / 8-16 Ohm
• Frequency response 3 Hz - 100 kHz (-3dB)
• Dynamic range 98 dB
• Channel separation 115 dB
