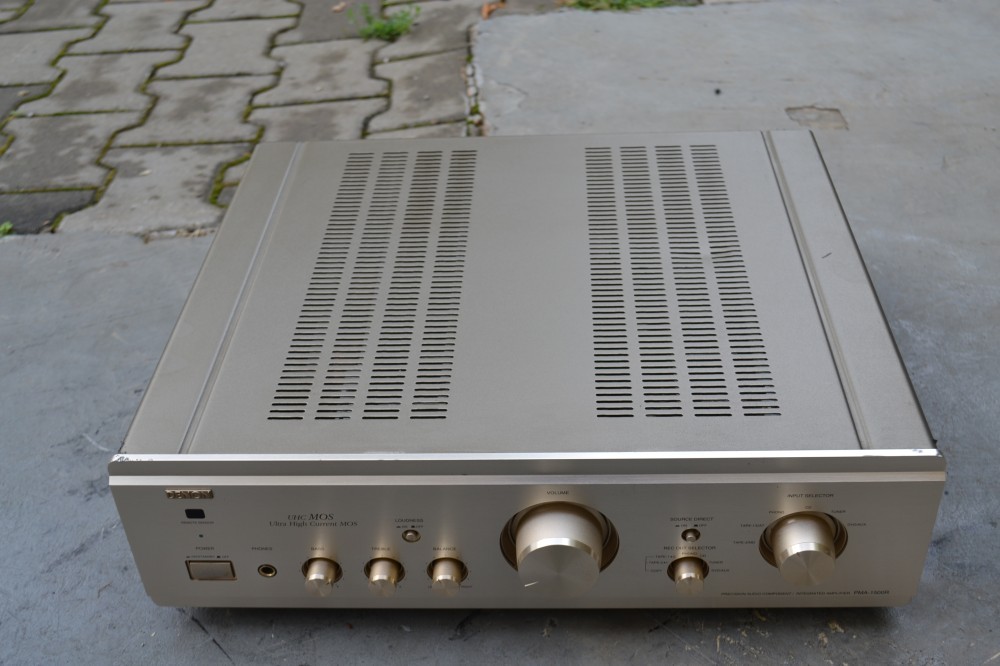

Amplificator Denon PMA 1500 R UHC MOS

Amplificator Denon PMA 1500 R: UHC MOS, culoare sampanie, 2 trafuri, 7 intrari, 4 iesiri, mufe aurite, 2 radiatoare, 305W consum, 4-16 ohmi, volum centru, senzor telecomanda, mosfer, loudness, jog system, reglaje diverse, mici zgarieturi, poze reale.

General

• Manufacturer: Denon
• Model: PMA-1500 R
• Type: Integrated amplifier
• Years of manufacture: 1997 - 2004
• Made in: Japan
• Color: Champagne, Black
• Remote control: yes, RC-837
• Power consumption: 305 W max.
• Dimensions: 434 x 134 x 407 mm (WxHxD)
• Weight: approx. 14.0 kg
• Original price approx.: 1'299 DM

Connections

• Number of inputs: 6

PHONO (MM: 2,5m / 47kΩ/Ohm | MC: 200µV / 100Ω/Ohm)

• • CD, TUNER, DVD/AUX (150mV / 47kΩ/Ohm)
  • TAPE-1/DAT, TAPE-2/MD (150mV / 13kΩ/Ohm *SOURCE-DIRECT: ON)
• Number of outputs: 3 (rated output: 150mV *recording output jack).
  • preamplifier output
  • TAPE1 REC OUT
  • TAPE2 REC OUT

Technical Data

• Rated continuous power (at THD)
  • 8 Ohm: 2x70W (20Hz to 20kHz, T.H.D 0,07%)
  • 4 Ohm: 2x140W (DIN, 1kHz, T.H.D. 0,7%)
• Total harmonic distortion: 0,01%
• Attenuation factor: -3dB at nominal output, 8Ω/Ohm (1kHz).
• Frequency Response: 20Hz ~ 20kHz
• Signal-to-noise ratio: (IHF-A crossover).
  • PHONO (MM: 91dB (at 5mV input))

PHONO (Inputs shorted) (MC: 76dB (at 0.5mV input)) CD, TUNER, DVD/AUX, TAPE-1/DAT, TAPE-2/MD (110dB * SOURCE-DIRECT: ON)

• Stereo channel separation: n/a.
• Tone control:
  • Bass: 100Hz ±8dB

Treble: 10kHz ±8dB Loudness: 50Hz +10dB | 10kHz +6dB
