Amplificator Denon PMA 500 Z

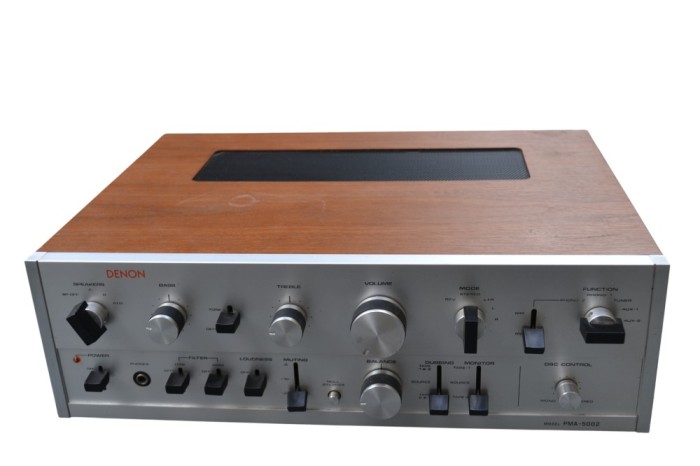

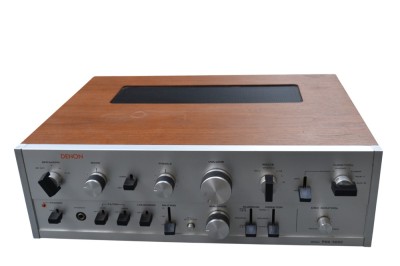

 Amplificator Denon PMA 500 Z : Vintage, 7 intrari, 4 iesiri, impedanta 8-16 ohmi, carcasa de lemn, phono selector, reglaje bass, treble, balance, tone control, low/high filter, loudness, muting, DSC Control, poze reale, made in Japan.

General

• Manufacturer: Denon
• Model: PMA-500 Z
• Type: Integrated amplifier
• Years of manufacture: 1975 - 1977
• Made in: Japan
• Color: front silver, wooden cabinet
• Remote control: no
• Power consumption:
• Dimensions: 430 x 140 x 350 mm
• Weight: 12.5 kg
• Original price approx.: 1'200 DM

Connections

• Number of inputs: 4
  • Phono (2 mV / 47 kOhm)
  • Tuner (100 mV /120 kOhm)
  • AUX (100 mV / 120 kOhm)
  • TAPE (320 mV / 120 kOhm)
• Number of outputs:
  • Tape recording output (RCA) (100 mV / 47 kOhm).

Technical Data

• Continuous power (at distortion factor)
  • 8 Ohm: 2 x 40 Watt
  • 4 Ohm: 2 x 42 Watt
• Dynamic power
  • 8 Ohm: 2 x 50 Watt
  • 4 Ohm: 2 x 55 Watt
• Total harmonic distortion: < 0.1 %
• Attenuation factor: 75
• Frequency response: 10 Hz - 100 kHz
• Spurious voltage spacing: 100 dB
• Stereo channel separation AUX: 64 dB
• Stereo channel separation PHONO: 49 dB
• Tone control:
  • Bass: yes

Treble: yes

• Loudness: yes
• High Filter: 9 kHz (12dB/oct)
• Low Filter (Subsonic): 40 Hz (12dB/oct)
• Mute: no
