Amplificator Luxman L 4+ Tuner T 4

Amplificator Luxman L 4+ Tuner T 4: 6 intrari, 4 iesiri, impedanta 4-16 ohmi, made in Japan, reglaje bass, treble, balance, Loudness, subsonic, high cut, Solid State, radio cu scala AM/FM, mono.sttereo, poze reale

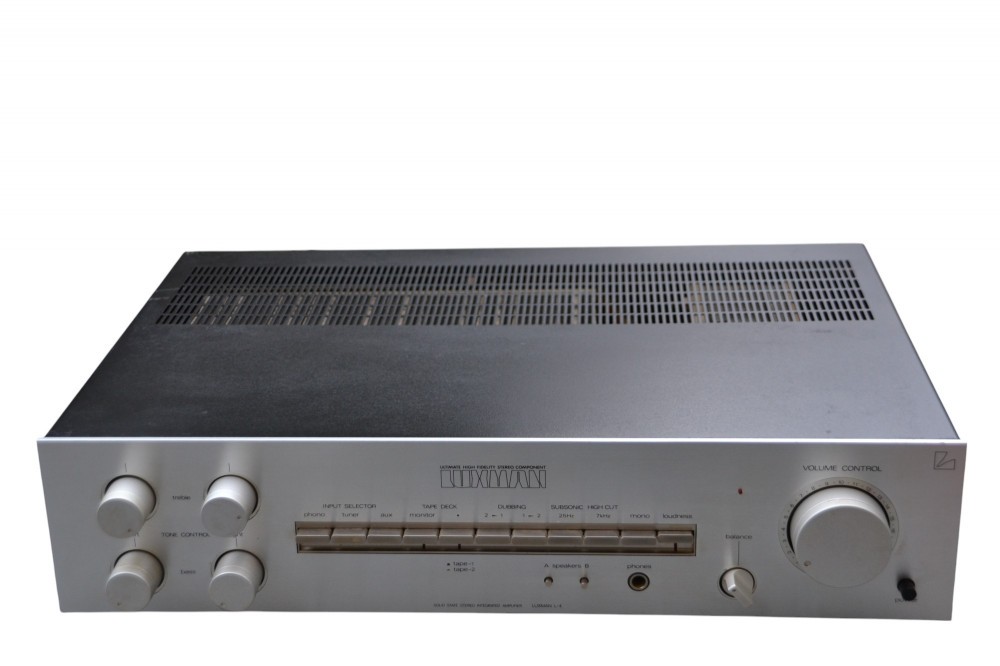

Luxman L-4

Solid State Stereo Integrated Amplifier (1979-81)

 (1 review)

Specifications

Power output: 55 watts per channel into 8Ω (stereo)

Frequency response: 10Hz to 100kHz

Total harmonic distortion: 0.02%

Input sensitivity: 2.5mV (MM), 150mV (line)

Signal to noise ratio: 92dB (MM), 95dB (line)

Channel separation: 70dB (MM), 80dB (line)

Dimensions: 438 x 289 x 105mm

Weight: 9.5kg

scription

The Luxman T-4 features LUX's exclusive CLL circuit offering perfect accuracy and unconditional stability in FM tuning, which interacts with the ACCUTOUCH system to provide a mechanical lock on the tuning knob when the station is precisely tuned in.

Specifications

Type: Mono/Stereo Tuner

Tuning Bands: FM, MW

Tuning Scale: Analogue

FM Tuning Range: 87.5 to 108 MHz

Sensitivity: 1.8uV (FM), 250uV (MW)

Signal to Noise Ratio: 75dB (FM), 50dB (MW)

Distortion: 0.5% (FM), 0.6% (MW)

Frequency response: 30Hz to 15kHz (FM)

Output: 1000mV (FM), 300mV (MW)

Dimensions: 438 x 346 x 84mm

Weight: 6.5kg
