Amplificator Luxman LV 113

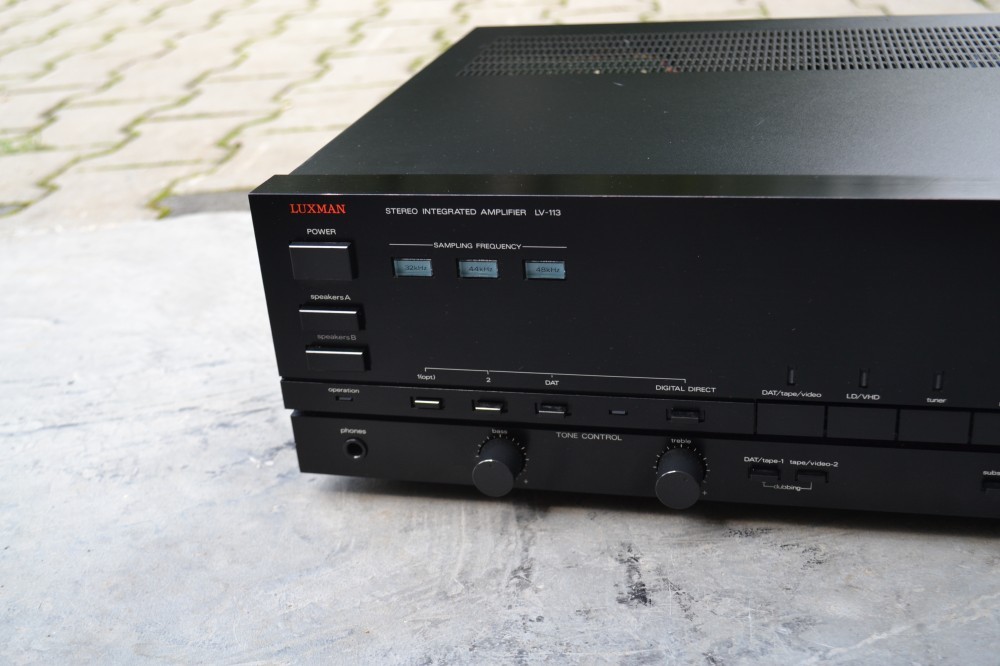

Amplificator Luxman LV 113: culoare neagra, made in Japan, 5 intrari, 4 iesiri, line direct, reglaje bass, treble, balance, poze reale, optical in, mufa casti.

General

• Manufacturer: Luxman
• Model: LV-113
• Type: Integrated amplifier
• Years of manufacture: 1988 - 1991
• Made in: Japan
• Color: Black
• Power consumption: 155 W
• Dimensions: 438 x 137 x 352 mm (WxHxD)
• Weight: 9.8 kg
• Original price approx.: 1'348 DM (1990)

Connections

• Number of inputs:
  • Phono MM: 2.5 mV, 50 kOhm

CD: 150 mV, 40 kOhm

• • Tuner: 150 mV, 40 kOhm
  • Tape Play 1, 2: 150 mV, 40 kOhm
  • AV Audio Play 1: 150 mV, 40 kOhm
  • AV Audio Play 2, Aux: 150 mV, 40 kOhm (switchable front or rear connections)
  • AV Video 1, 2 Play: 1 Vp-p / 75 Ohm (switchable front or rear connectors)
  • Signal Processor In:
• Number of Outputs:
  • Tape Rec 1, 2:
  • AV Audio Rec 1:
  • AV Audio Rec 2, Aux: (switchable front or rear connectors).
  • AV Video Rec 1: (switchable front or rear connections).
  • AV Video Monitor:
  • Signal Processor Out:
  • Headphones:
  • 2 pairs of speakers

Technical Data

• Continuous power (at distortion factor)
  • 8 Ohm: 2x 70 W (RMS, 20 Hz - 20 kHz)
  • 6 Ohm: 2x 80 W
  • 4 Ohm: 2x 110 W
• Dynamic power
  • 8 Ohm:
  • 4 Ohm: 2x 150 W
  • 2 Ohm: 2x 190 W
• Total harmonic distortion: 0.006 % (1 kHz)
• Attenuation factor:
• Frequency response:
  • Phono MM: 20 Hz - 20 kHz, ± 0.3 dB

CD, Tuner, Line, AV-Audio: 1 Hz - 150 kHz, - 3 dB Signal-to-noise ratio:

• • Phono MM: 87 dB

CD, Tuner, Line, AV-Audio: > 105 dB

• Tone control
  • Bass (100 Hz): ± 5 dB
  • Treble: (10 kHz): ± 6 dB
• Loudness: +6 dB/100 Hz; +5 dB/10 kHz
• High Filter: no
• Low Filter: no
• CD-Straight: yes

Special Features

• Aux + Video input on the front panel
• Built-in DA converter
• 3 sampling frequencies selectable
• Signal processor
• Mono/stereo switch
