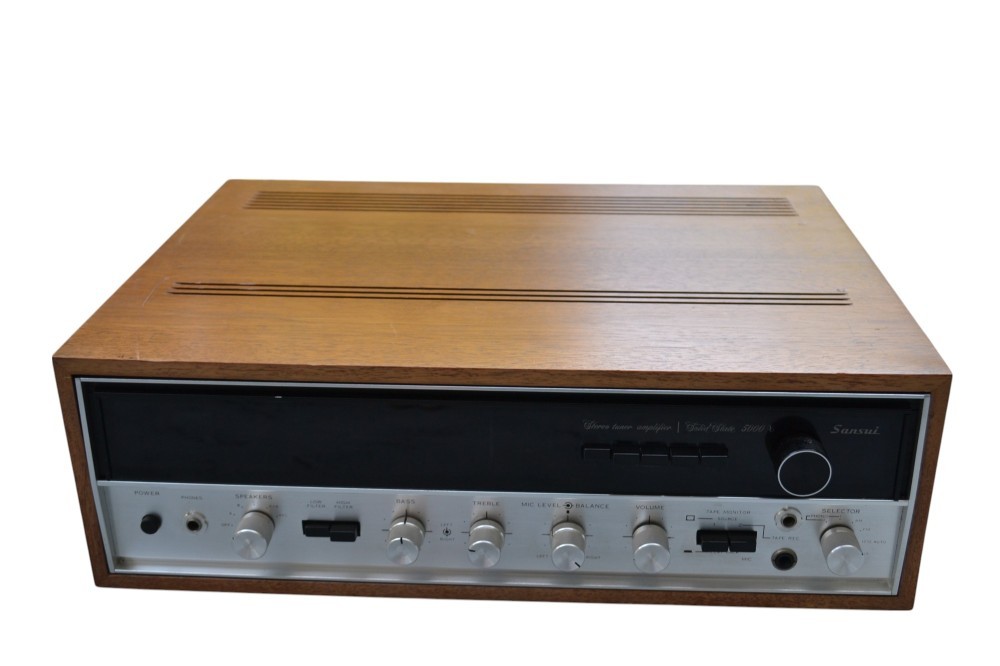

Amplificator Sansui model 5000 X

Amplificator Sansui model 5000 X: carcasa de lemn, 6 intrari, 6 iesiri, impedanta 4-16 ohmi, radio cu scala iluminata, low/high filter, reglaje bass/inalte pe fiecare canal, intrare microfon, loudness, poze reale, made in Japan.

General

• Manufacturer: Sansui
• Model: 5000 X
• Type: Receiver
• Years of manufacture: 1971 - 1972
• Made in: Japan
• Color: silver, housing walnut
• Remote control: no
• Power consumption:
• Dimensions: 462 x 162 x 338 mm (WxHxD).
• Weight: 15,1 kg
• Original price approx.: 2'200 DM (1972)
• Surcharge for walnut cabinet: 115 DM
• Surcharge for white lacquered cabinet: 125 DM

Connections

• Number of inputs:
  • Phono (MM): 2.5 mV / 50 kOhm
  • Microphone: 3 mV / 50 kOhm
  • 2x Tape, Aux: 150 mV / 50 kOhm
  • Antenna (FM: 75, 300 Ohm, AM)
• Number of outputs:
  • 2x Tape Rec: 200 mV

Tape Rec DIN: 35 mV

• • Headphones (6,3mm jack)
  • 3 pairs of loudspeakers

Technical Data

Amplifier

• Continuous power (at distortion):
  • 8 Ohm: 2x 60 W
  • 4 Ohm:
• Dynamic power:
  • 8 Ohm:
  • 4 Ohm:
• Total harmonic distortion: < 0.5%
• Attenuation factor: 50 (at 8 ohms)
• Frequency response:
  • Phono: 30 - 15,000 Hz, ± 0.2 dB.
  • High Level: 10 - 50,000 Hz (+0 dB, -1 dB)

Signal-to-noise ratio:

• • Phono: 70 dB

High Level: 75 dB

• Tone control:
  • Bass at 100 Hz: ± 10 dB

Treble at 10 kHz: ± 10 dB

• Loudness: yes, +6 dB at 100 Hz, +3 dB at 10 kHz
• Low Filter: yes, 6 dB / octave at 30 Hz
• High Filter: yes, 6 dB / octave at 8 kHz
• Mute:

Tuner

• Reception: FM/MW
• Frequencies:
  • FM: 88 - 108 MHz
  • MW: 535 - 1605 KHz
• Input sensitivity:
  • FM: 1.8µV
  • MW: 15µV
• Frequency response: 30 - 15,000 Hz (+0.2/-0.5 dB)
• Distortion factor:
  • FM (1 kHz): < 0.10% (mono), < 0.15% (stereo).
• Signal-to-noise ratio:
  • FM (65 dBf): 75 dB (mono), 66 dB (stereo).
  • MW: 55 dB
• Channel separation: 45 dB (1 kHz)
• selectivity:
• Co-wave selection: 1.0 dB
• Spurious wave selection:
  • FM: 80 dB
• Mirror frequency attenuation:
  • FM: 90 dB

MW: 40 dB IF attenuation:

• • FM: 110 dB
  • MW: 40 dB
• AM suppression: 55 dB
