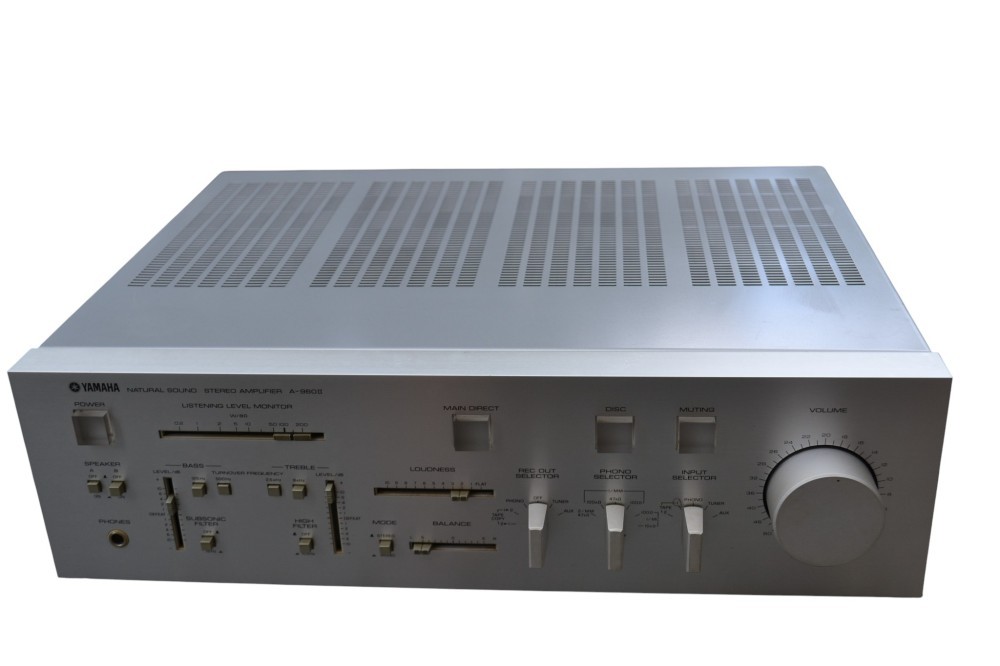

Amplificator Yamaha A 960 Mark II

Amplificator Yamaha A 960 Mark II: made in japan, 6 intrari, 4 iesiri, 8-16 ohmi, 630W consum, argintiu, reglaje bass, inalte, balance, reglaj bass/inalte pe frecventa, muting, loudness variabil, subsonic/ high filter, 2 radiatoare, poze reale.

General

• Manufacturer: Yamaha
• Model: A-960 II
• Years of manufacture: 1982-1983
• Type: Integrated amplifier
• Remote control: no
• Power consumption: 630 watts (X power supply)

Dimensions: 435 mm × 132 mm × 365 mm (W × H × D)

• Weight: 10.6 kg
• Color: silver and black
• Original price approx.: 1200 DM

Connections

• Number of inputs:
  • Phono, Tuner, Aux, 2 × Tape

• Number of outputs:
  • 2 × speaker, 2 × rec-out, headphones

Specifications

• Continuous power (at distortion factor)
  • 8 Ohm: 2 × 120 Watt
  • 4 Ohm: 2 × 180 Watt
• Dynamic power
  • 8 Ohm:
  • 4 Ohm:
• Total harmonic distortion: 0.003 %
• Attenuation factor: >55
• Input (sensitivity/impedance)
  • Phono MM 2.5 mV/33/47/100 KOhm, MC 160 µV/100 Ohm
  • Tape, Tuner, 150 mV/47 kOhm
• Output (level/impedance)

Rec-Out 150 mV/270 Ohm

• Frequency response: 10-10,0000 Hz
• Tone control:
  • Bass: yes

treble: yes

• Loudness: adjustable
• Subsonic: switchable
• Mute: yes
• Direct/Line-Straight: Main-Direct and Disc-Direct
• Ripple distance (shorted):
• Stereo Channel Separation:
• Signal-to-noise ratio: 106 dB
