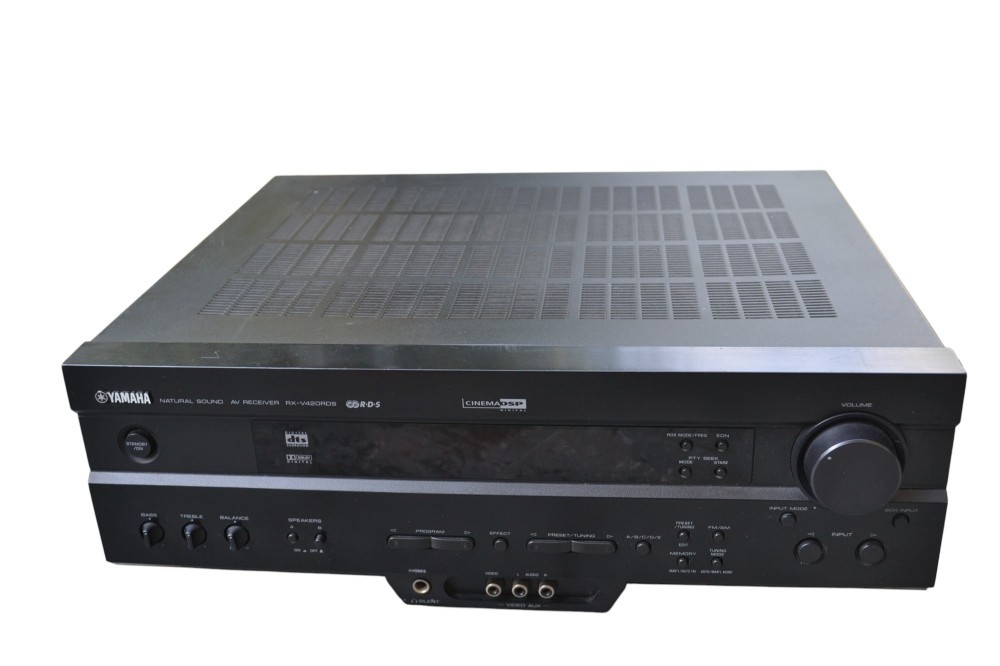

Amplificator Yamaha RX V 420 RDS

Amplificator Yamaha RX-V 420 RDS: 7 intrari, 7 iesiri, impedanta 4-16 ohmi, 4 iesiri pe stereo, intrare 5.1, optical+coaxial input, afisaj pozitionat central, culoare neagra, 210 w consum din retea, reglaje bass, treble, balance, 6 Ch input, DolbyDigital, DTS, Prologic II, Cinema DSP, radio cu RDS, EON, PTY, multiple memorii, senzor telecomanda, poze reale.

Minimum RMS Output Power per Channel MAIN, 20Hz-20kHz, 0.06% THD, 8 ohms.......65W + 65WCENTER, 20Hz-20kHz, 0.06% THD, 8 ohms.......65WREAR, 20Hz-20kHz, 0.06% THD, 8 ohms......65W + 65W
Dynamic Power per Channel MAIN, 8/6/4/2 ohms.......95/115/135/155W
Dynamic Headroom 8 ohms......1.4dB
Damping Factor (8 ohms, 20 Hz-20 kHz) MAIN L/R, 60 or more
Input Sensitivity/ Impedance CD, etc.....150mV/47kohms
Maximum Input Signal Level CD, etc (1kHz, 0.5% THD)....2.2V or more
Output Level/ Impedance REC OUT......150mV/1.2kohmsSUBWOOFER (EFFECT OFF, MAIN SP:SMALL)MONO.....4.0V/1.2kohms
Headphone Jack Rated Output/Impedance CD, etc.........470mV/390ohms
Frequency Response (1kHz, 150mV, 8 ohms) CD, etc, MAIN L/R.....20Hz to 20kHz +/- 0.5dB
BASS Boost/Cut.....+/-10dB (50Hz)
TREBLE Boost/Cut.....+/-10dB (20kHz)
Filter Characteristics SUBWOOFER OUT: LPF.....fc=90Hz, 18dB/octMAIN, CENTER, REAR SP SMALL: HPF.....fc=90Hz, 12dB/oct
Total Harmonic Distortion (20Hz-20kHz) CD, etc, to MAIN SP OUT L/R (30WATTS/8 OHMS).....0.025%
Signal-to-Noise Ratio (IHF-A-Network) CD, etc, Input Shorted (Effect off).....100dB
Residual Noise (IHF-A-Network) MAIN, SP OUT.....150uV
Channel Separation (Vol.-30dB, Effect off) CD, etc, Input 5.1k ohms Shorted, 1kHz.....60dB
Video Signal Type NTSC
Composite Video Signal Level 1Vp-p/75 ohms
Video Signal-to-Noise Ratio 50dB
Monitor Output Frequency Response Composite Video Signal.....5Hz-10MHz, -3dB
Tuning Range 87.5 to 107.9MHz
50dB Quieting Sensitivity (IHF, 75ohms) Mono (1kHz, 100% Mod).....2.0uV (17.3dBf)Stereo (1`kHz, 100% Mod).....25uV (39.2dBf)
Selectivity (400kHz) 70dB
